EXHAUST GAS RECIRCULATION SYSTEM

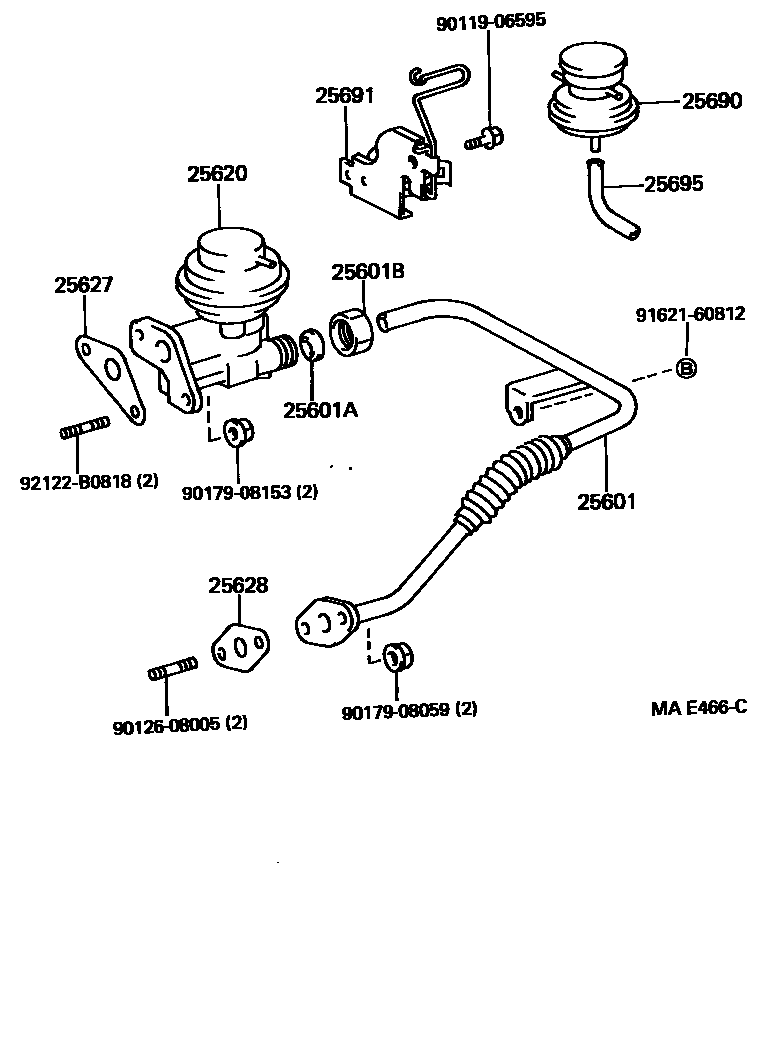

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-11040i199104-199508

main25611-11040i199104-199409

CALIFORNIA PACKAGE

main25611-11050i199409-199508

CALIFORNIA PACKAGE

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14005i199104-199508

CALIFORNIA PACKAGE

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22015i199110-199407

CALIFORNIA PACKAGE

main90402-22076i199104-199508

CALIFORNIA PACKAGE

25620VALVE ASSY, EGR

main25620-11120i199104-199409

CALIFORNIA PACKAGE

main25620-11130i199104-199508

main25620-11160i199409-199508

CALIFORNIA PACKAGE

main25620-11170i199409-199508

CALIFORNIA PACKAGE

25627GASKET, EGR VALVE

main25627-11030i199409-199508

CALIFORNIA PACKAGE

main25627-11040i199104-199409

CALIFORNIA PACKAGE

main25627-11040i199104-199508

25628GASKET, EGR INLET

main25628-11020i199104-199409

CALIFORNIA PACKAGE

main25628-11020i199104-199508

25690MODULATOR ASSY, EGR VACUUM

main25870-11080i199104-199409

CALIFORNIA PACKAGE

main25870-11080i199104-199508

main25870-11090i199409-199508

CALIFORNIA PACKAGE

main25870-11100i199409-199508

CALIFORNIA PACKAGE

25691BRACKET, EGR VACUUM MODULATOR

main25691-11050i199104-199409

CALIFORNIA PACKAGE

main25691-11050i199104-199508

main25691-11060i199409-199508

CALIFORNIA PACKAGE

25695HOSE, EGR VACUUM MODULATOR

main25695-11010i199104-199409

CALIFORNIA PACKAGE

main25695-11010i199104-199508

9011906595

main90119-06595

9012608005

main90126-08005

9017908059

main90179-08059

9017908153

main90179-08153

9162160812

main91621-60812

92122B0818

main92122-B0818

15 parts on this diagram · 2 diagrams in section
