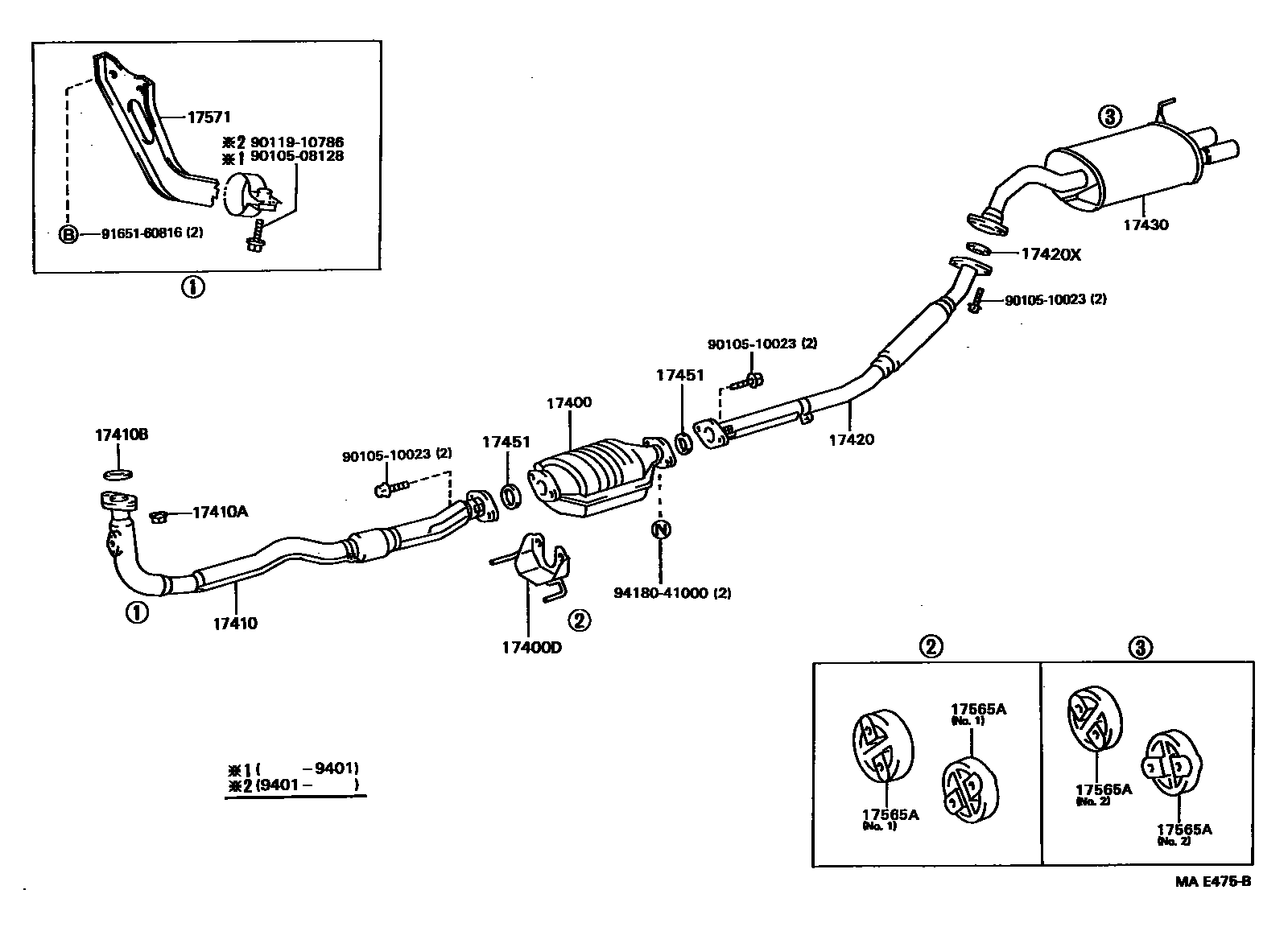

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFORNIA SPEC
17400DBRACKET, CATALYTIC CONVERTER SUPPORT
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
CALIFORNIA SPEC
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
CALIFORNIA SPEC
17451GASKET, EXHAUST PIPE
CALIFORNIA SPEC
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
CALIFORNIA SPEC
NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
9010508128
main90105-08128
9010510023
main90105-10023
9011910786
main90119-10786
9165160816
main91651-60816
9418041000
main94180-41000
17 parts on this diagram · 2 diagrams in section
