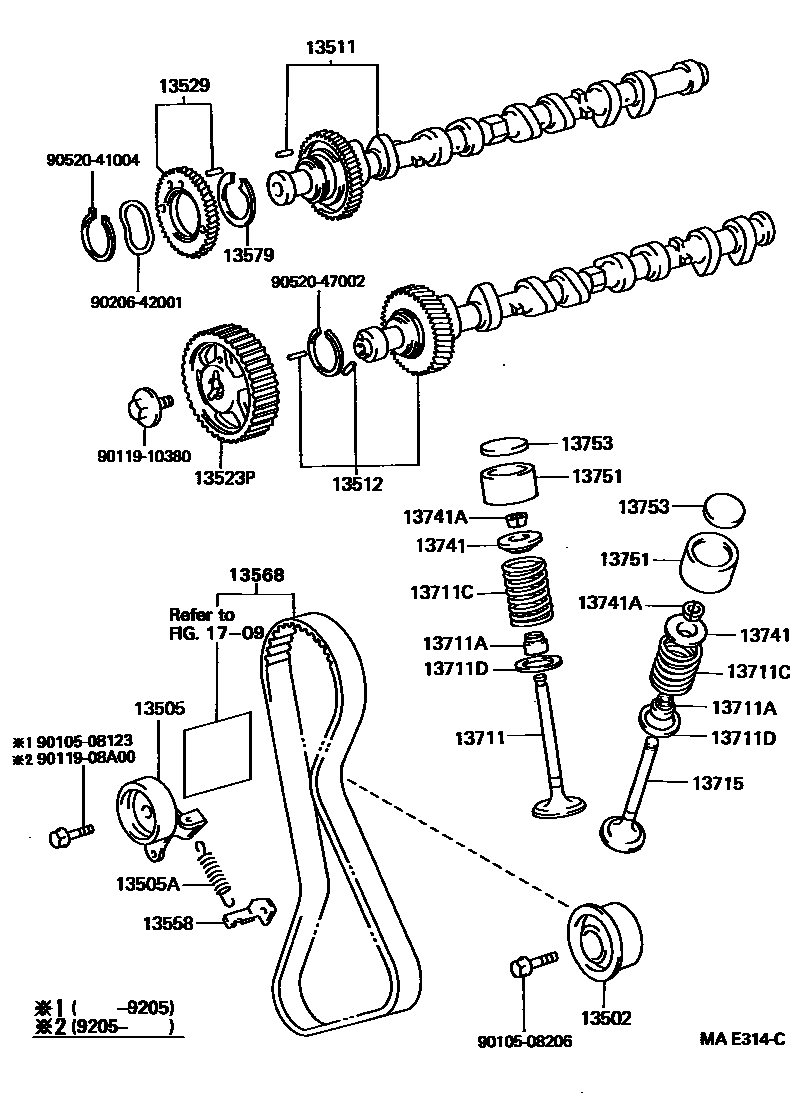

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13558BRACKET, SPRING(FOR IDLER)
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
CALIFORNIA SPEC,INATAKE SIDE
EXHAUST SIDE
13711CSPRING, COMPRESSION(FOR OUTER)
CALIFORNIA SPEC
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
1709
9010508123
main90105-08123
9010508206
main90105-08206
9011908A00
main90119-08A00
9011910380
main90119-10380
9020642001
main90206-42001
9052041004
main90520-41004
9052047002
main90520-47002
27 parts on this diagram · 1 diagram in section
