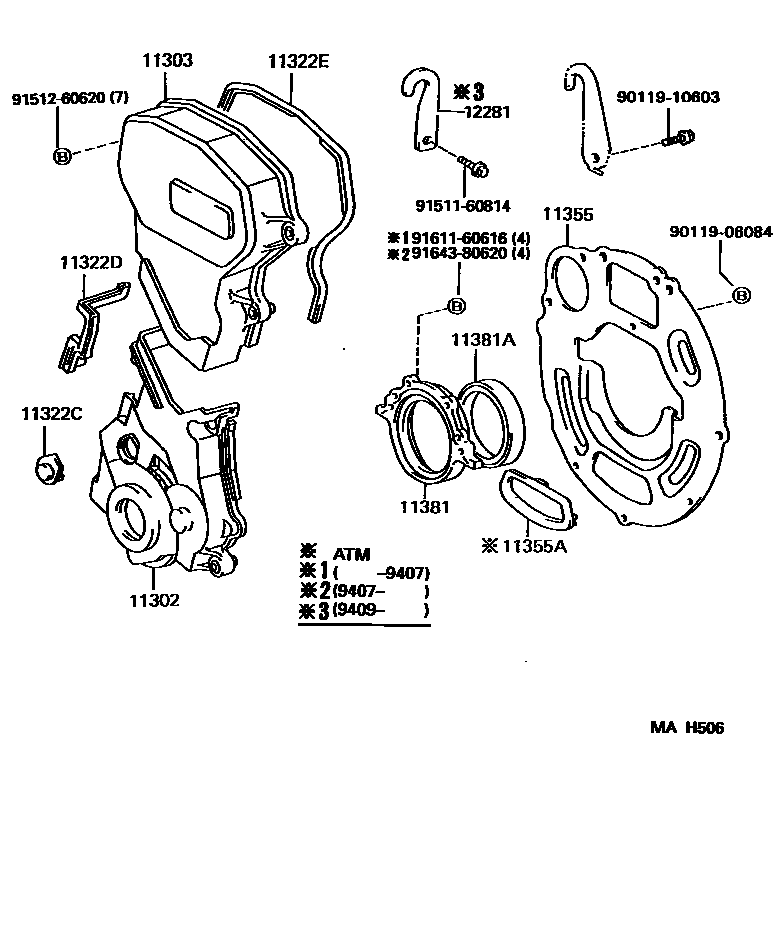

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11080i5EFE..EL44199104-199405

sub11302-11082

sub11328-11061

sub90387-06015

main11302-11082i5EFE..EL44199405-199508

main11302-11100i5EFE..EL44..USA199409-199508

CALIFORNIA SPEC

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11030i5EFE..EL44199104-199405

sub11303-11031

sub90387-06015

main11303-11031i5EFE..EL44199405-199508

11322CCOVER, TIMING BELT, NO.3

main11323-10011i5EFE..EL44199104-199508

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11060i5EFE..EL44199104-199309

sub11328-11061

main11328-11061i5EFE..EL44199309-199508

11322EGASKET, TIMING BELT COVER, NO.2

main11329-11010i5EFE..EL44199104-199508

11355PLATE, REAR END

main11355-10011i5EFE..EL44..MTM199104-199508

sub11355-10012

main11355-11011i5EFE..EL44..ATM199104-199508

sub11355-11012

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i5EFE..EL44..ATM199104-199508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i5EFE..EL44199104-199407

main11381-10021i5EFE..EL44199407-199508

11381ASEAL, ENGINE REAR OIL

main90311-80007i5EFE..EL44199104-199108

sub90311-80012

main90311-80012i5EFE..EL44199108-199508

12281HANGER, ENGINE, NO.1

main12281-11030i5EFE..EL44..USA199409-199505

sub12281-11031

main12281-11031i5EFE..EL44199505-199508

9011906084

main90119-06084

9011910603

main90119-10603

9151160814

main91511-60814

9151260620

main91512-60620

9161160616

main91611-60616

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section
