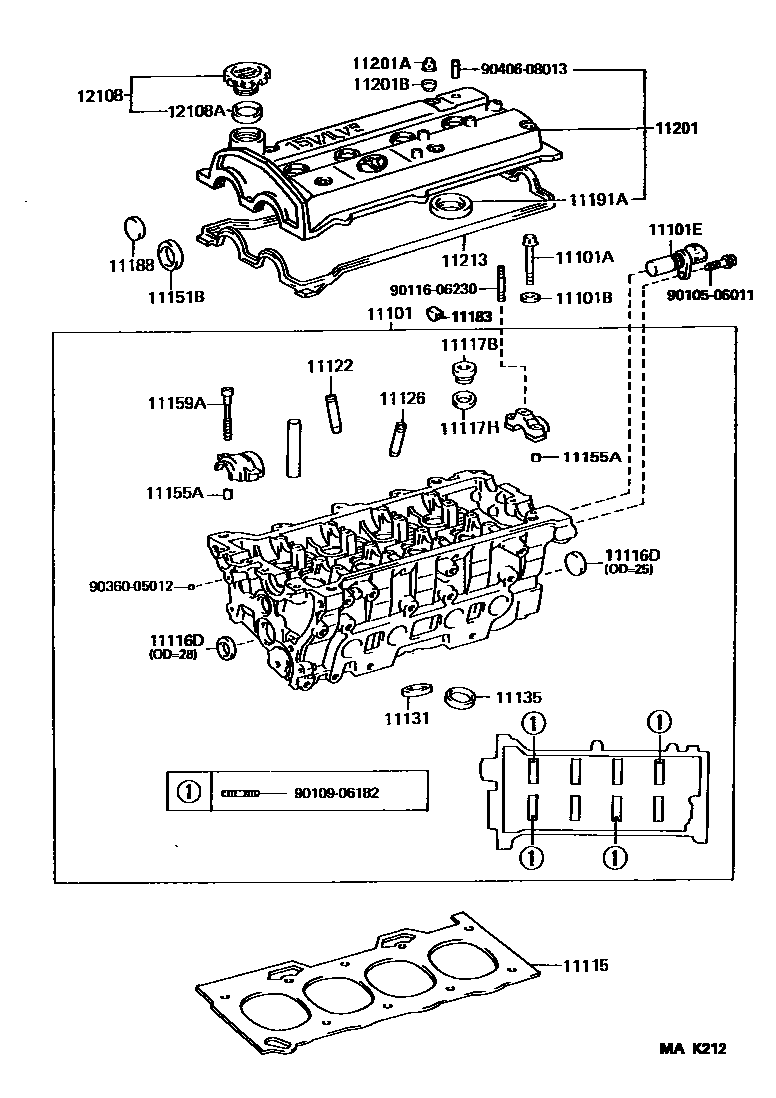

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*9-1.25PX84.5-50
*9-1.25PX98.5-50
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
CALIFORNIA SPEC
11116DPLUG, TIGHT, NO.4
CALIFORNIA SPEC,OD=25
CALIFORNIA SPEC,OD=28
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11155APIN, RING W/HEAD
CALIFORNIA SPEC
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
CALIFORNIA SPEC
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
CALIFORNIA SPEC
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
sub90210-06013
12108AGASKET(FOR OIL FILLER CAP)
9010506011
main90105-06011
9010906182
main90109-06182
9011606230
main90116-06230
9036005012
main90360-05012
9040608013
main90406-08013
29 parts on this diagram · 1 diagram in section
