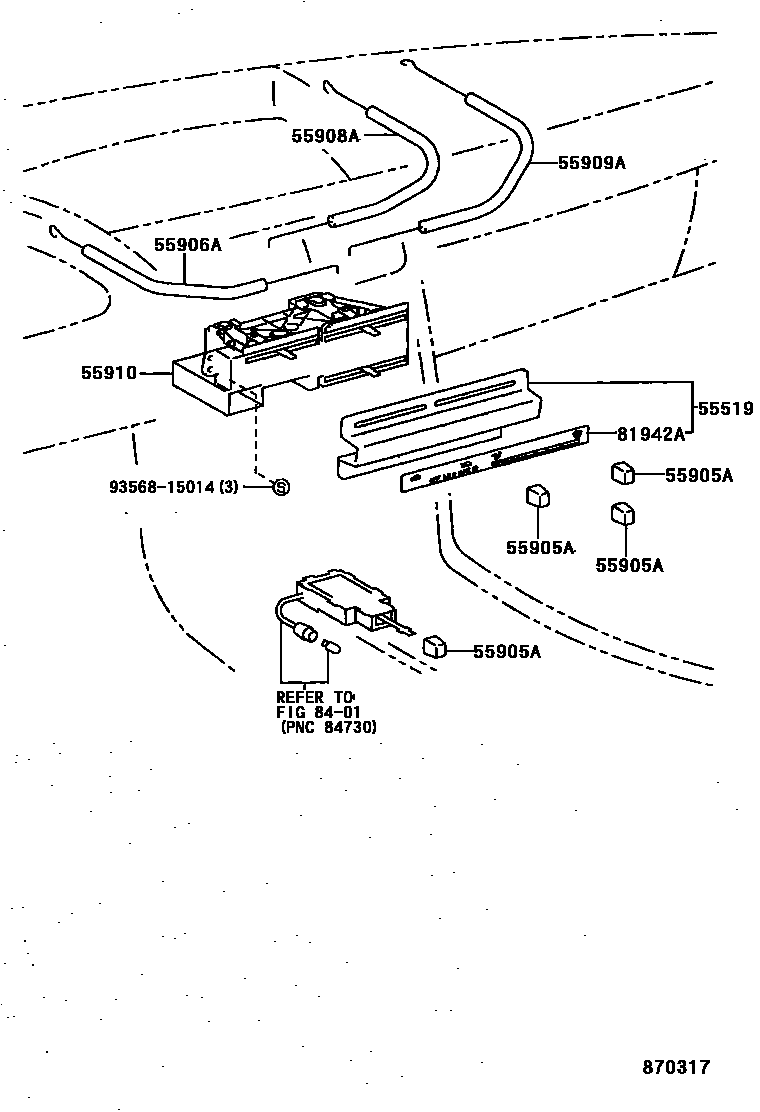

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0007 1

55519PLATE, HEATER CONTROL NAME

main55519-16090iEL54..RHD..EUR¥3,950199512-199802

main55519-16110iEL54..ARL¥5,100199508-199608

main55519-16140iEL54..GEN¥5,100199508-199608

main55519-16190iEL54..LHD..EUR¥3,950199512-199608

COOLER SW.=W/ECON

sub55519-16250¥3,950

main55519-16190iEL54..LHD¥3,950199608-199802

sub55519-16250¥3,950

main55519-16220iEL54..RHD..CP¥3,950199712-199802

main55519-16230iEL54..RHD..EUR¥3,950199712-199802

W(AIR CONDITIONER)

sub55519-16220¥3,950

main55519-16250iEL54..LHD..CP¥3,950199712-199802

main55519-16260iEL54..LHD..CP¥3,950199712-199802

W(AIR CONDITIONER)

sub55519-16250¥3,950

55905AKNOB, HEATER CONTROL

main55905-89115iEL54..ARL,GEN¥260199508-199608

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16090iEL54..ARL¥720199508-199608

main55906-16100iEL54..GEN¥720199508-199608

main55906-16120iEL54..RHD..EUR¥720199512-199608

main55906-16130iEL54..LHD..EUR¥720199512-199608

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16100iEL54..ARL,GEN¥850199508-199608

main55908-16120iEL54..EUR¥850199512-199608

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16100iEL54..ARL¥850199508-199608

main55909-16110iEL54..GEN¥620199508-199608

main55909-16130iEL54..RHD..EUR¥850199512-199608

main55909-16140iEL54..LHD¥850199512-199608

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16200iEL54..ARL¥5,200199508-199608

main55910-16220iEL54..GEN¥5,200199508-199608

main55910-16270iEL54..RHD..EUR¥5,200199512-199802

main55910-16280iEL54..LHD¥5,200199512-199802

main55910-16310iEL54..RHD¥5,200199712-199802

sub55910-16270¥5,200

main55910-16340iEL54..LHD..CP¥5,200199712-199802

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16200iEL54..ARL¥840199508-199608

main81942-16230iEL54..GEN¥840199508-199608

main81942-16260iEL54..RHD..EUR¥1,360199512-199708

sub81942-16261¥1,360

main81942-16261iEL54..RHD¥1,360199708-199802

main81942-16270iEL54..LHD¥1,390199512-199708

sub81942-16271¥1,360

main81942-16271iEL54..LHD¥1,360199708-199712

main81942-16310iEL54..RHD..CP¥350199712-199802

main81942-16330iEL54..LHD..CP¥350199712-199802

8401

9356815014

main93568-15014¥180

9 parts on this diagram · 5 diagrams in section
