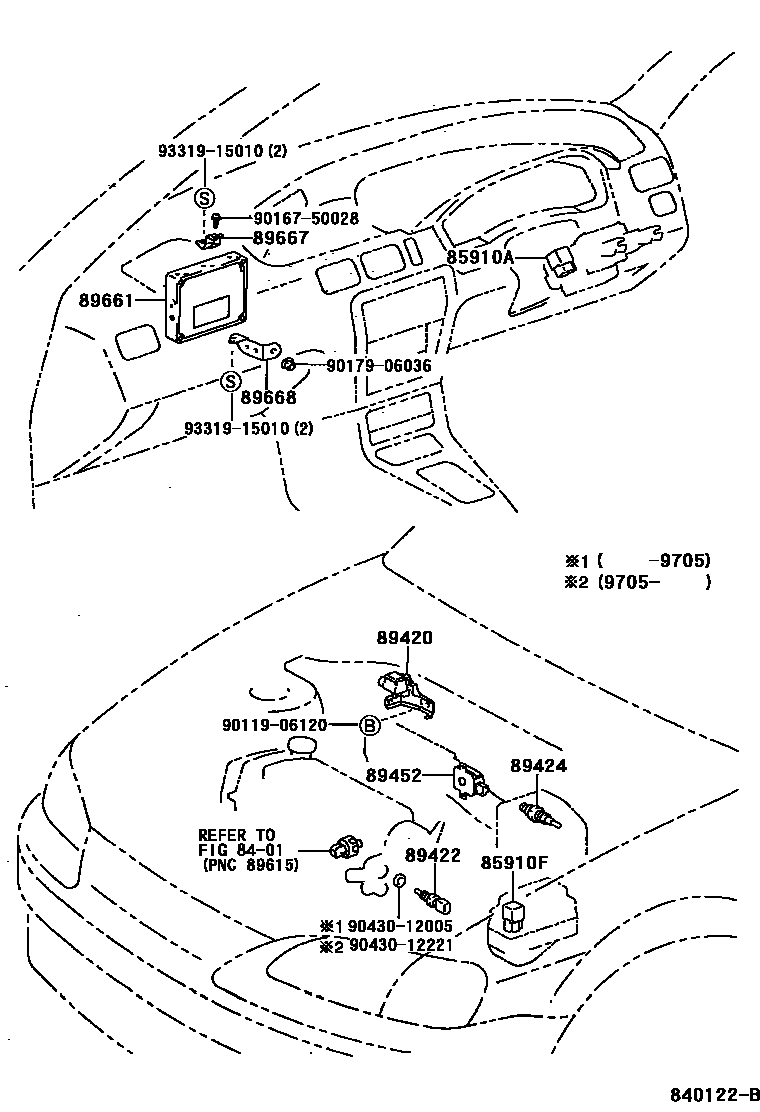

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL54199508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL54199508

89420SENSOR ASSY, VACUUM

main89420-16050iEL54..RHD199508-199802

main89420-16060iEL54..LHD199508-199802

main89420-16080iEL54..RHD..CP199712-199802

main89420-16090iEL54..LHD199712-199802

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL54199705

DENSO

main89422-20010iEL54199508-199705

main89422-22030iEL54199705

SAAMOSTA

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL54199508-199712

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL54199702-199808

sub89452-20130

main89452-20130iEL54199608-199702

main89452-22090iEL54199508-199608

89661COMPUTER, ENGINE CONTROL

main89661-16480iEL54..CVT199512-199802

main89661-16490iEL54..CVT199512-199802

W(ENGINE IMMOBILIZER SYSTEM)

main89661-16500iEL54..MTM..(ARL,GEN)199508-199608

main89661-16510iEL54..ATM199508-199608

main89661-16550iEL54..MTM..GEN199608-199702

main89661-16560iEL54..ATM..GEN199608-199702

main89661-16570iEL54..MTM..ARL199608-199712

main89661-16580iEL54..ATM..ARL199608-199712

main89661-16610iEL54..EUR199712-199802

W(ENGINE IMMOBILIZER SYSTEM)

main89661-16670iEL54..MTM..ARL199712

main89661-16680iEL54..ATM199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEL54..RHD199508

main89667-16060iEL54..LHD199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16060iEL54..RHD..CVT199508-199802

main89668-16070iEL54..LHD..MTM199508-199608

main89668-16080iEL54..GEN199608-199702

main89668-16090iEL54..ATM..GEN199508-199608

main89668-16100iEL54..ARL199608-199712

main89668-16110iEL54..RHD..CP..EUR199712-199802

main89668-16130iEL54..ARL199712

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
