WIRING & CLAMP

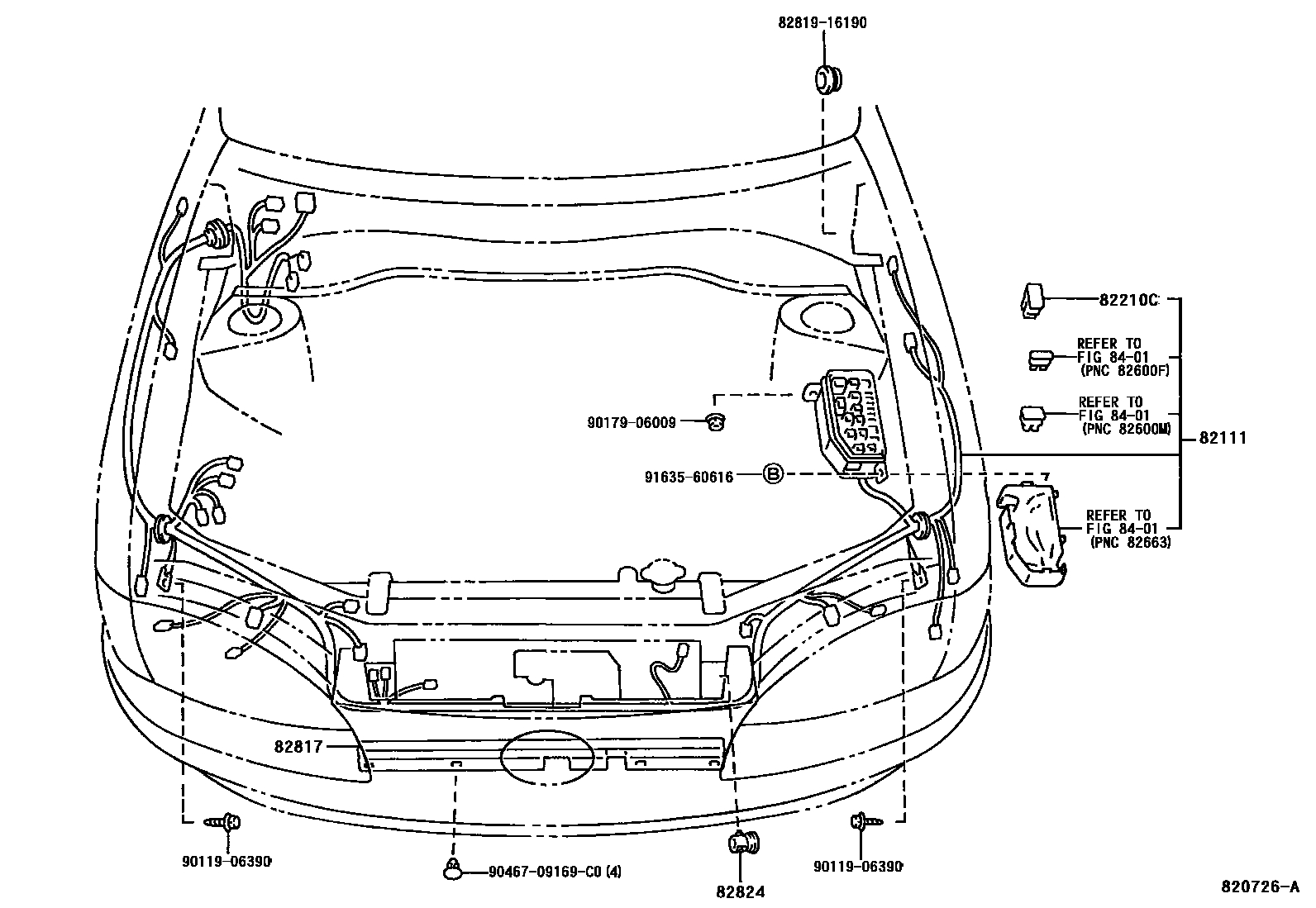

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-1G660i199512-199608
main82111-1G661i199608-199802
main82111-1G662i199712-199802
main82111-1G670i199512-199608
W(ABS)
main82111-1G671i199608-199802
W(ABS)
main82111-1G672i199712-199802
W(ABS)
main82111-1G680i199512-199608
main82111-1G681i199608-199802
main82111-1G682i199712-199802
main82111-1G690i199512-199608
W(ABS)
main82111-1G691i199608-199802
W(ABS)
main82111-1G692i199712-199802
W(ABS)
main82111-1G700i199508-199608
main82111-1G701i199608-199702
main82111-1G790i199512-199608
DENMARK SPEC & W(HEADLAMP LEVELING)
main82111-1G791i199608-199802
DENMARK SPEC
main82111-1G792i199712-199802
DENMARK SPEC
main82111-1G800i199512-199608
DENMARK SPEC, W(ABS & HEADLAMP LEVELING)
main82111-1G801i199608-199802
DENMARK SPEC & W(ABS)
main82111-1G802i199712-199802
DENMARK SPEC & W(ABS)
main82111-1G810i199508-199608
main82111-1G811i199608-199712
W(*80)
main82111-1G812i199712
main82111-1G820i199508-199608
W(ABS)
main82111-1G821i199608-199712
W(ABS & *80)
main82111-1G822i199712
W(ABS)
main82111-1G840i199512-199608
W/O(ABS) & W/O(HEADLAMP LEVELING)
main82111-1G850i199512-199608
DENMARK SPEC & W(ABS)
main82111-1G860i199512-199608
DENMARK SPEC, W/O ABS & W/O HEADLAMP LEVELING
main82111-1G870i199512-199608
DENMARK SPEC, W(ABS) & W/O HEADLAMP LEVELING
main82111-1S030i199608-199712
main82111-1S040i199608-199712
W(ABS)
82210CFUSIBLE LINK
main90982-08189i199508-199802
40A,TERM.:FEMALE,GRN
main90982-08190i199508
60A,TERM.:FEMALE,YEL
main90982-08246i199508
100A,TERM.:MALE,BLUE
main90982-09007i199608-199712
5A,MINI FUSE,TAN
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-16480i199508-199802
82824CONNECTOR, WIRING HARNESS
main82824-20050i199508
8401
8281916190GROMMET, WIRING HARNESS
main82819-16190
9011906390
main90119-06390
9017906009
main90179-06009
9046709169C0
main90467-09169C0
9163560616
main91635-60616

10 parts on this diagram · 11 diagrams in section
