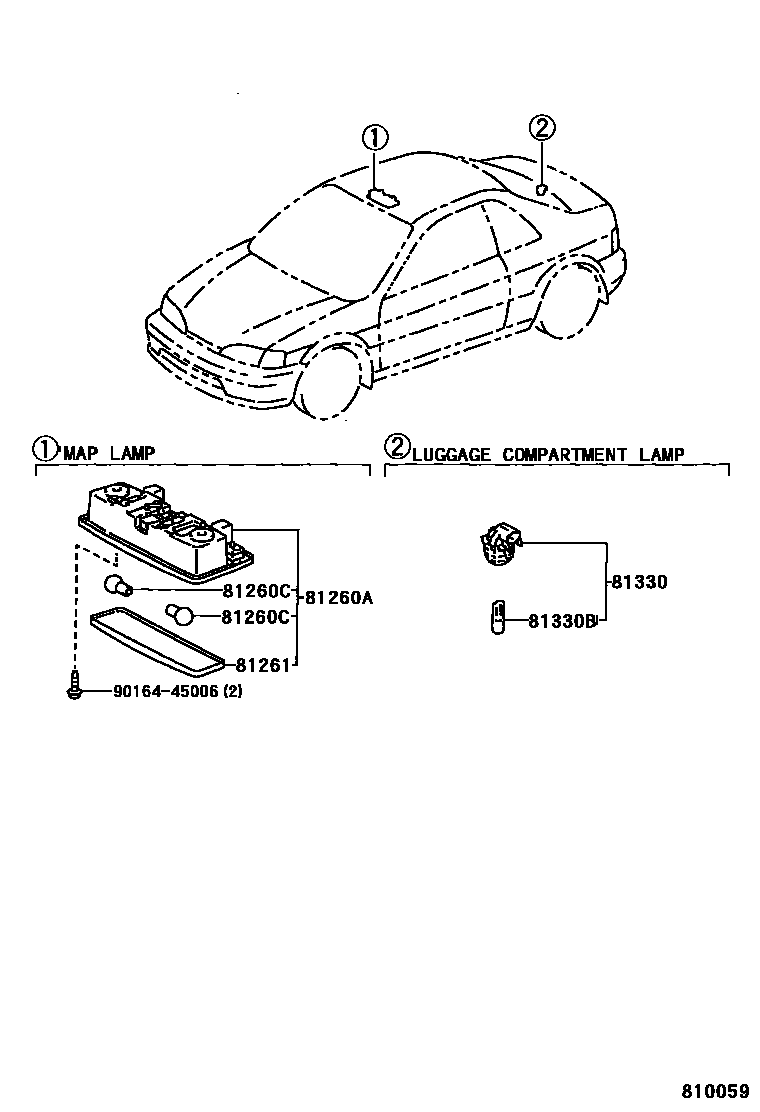

INTERIOR LAMP

0001 1 0002 1 0003 1

81260ALAMP ASSY, MAP

main81250-16040iEL54..CVT199610

main81260-14080-B2iEL54..CP199508

LT.BLUISH GRAY,TRIM1#

sub81260-14080

81260CBULB(FOR MAP LAMP)

main90981-11016iEL54..CVT199610

12V 5W

main90981-12005iEL54..CP199508

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-14080iEL54..CP199508

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iEL54..CP199508

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iEL54..CP199508

12V 3.8W

9016445006

main90164-45006

6 parts on this diagram · 3 diagrams in section
