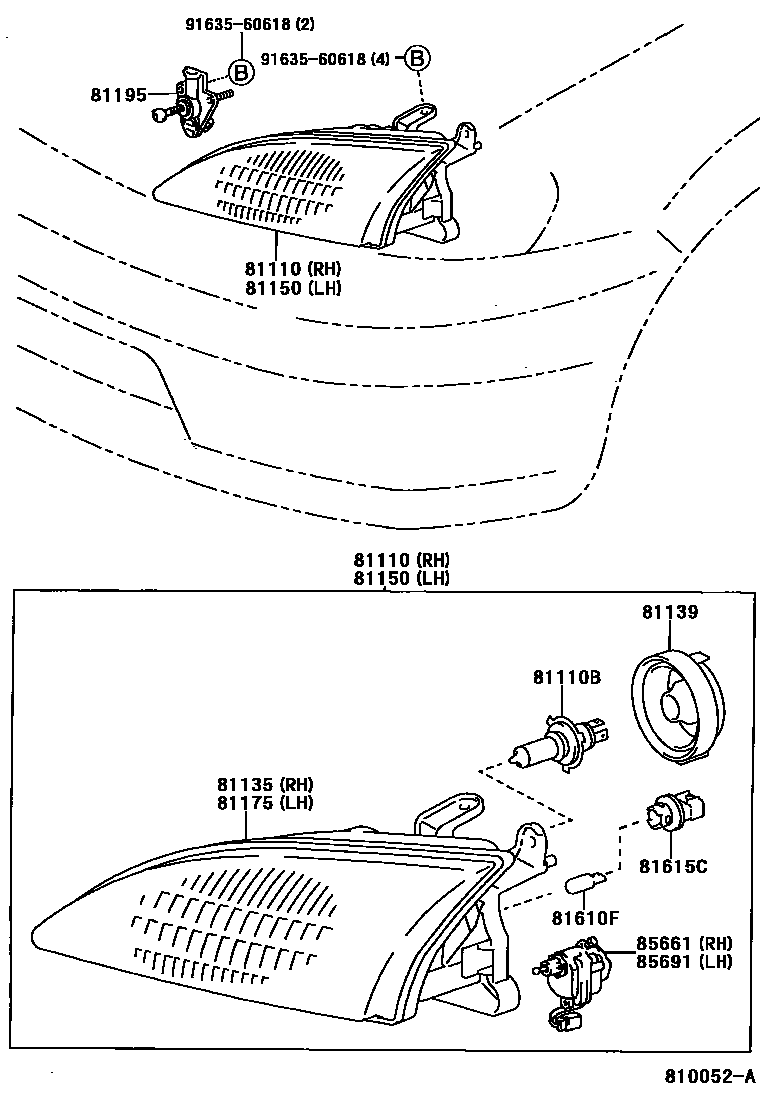

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-16630iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main81110-16630iEL54..LHD..CVT199512-199802

main81110-16640iEL54..LHD199508-199608

W/O(LEVELING)

main81110-16640iEL54..GEN199608-199702

main81110-16650iEL54..RHD..CVT199512-199802

main81110-16660iEL54..ARL199508-199712

main81110-16700iEL54..LHD..CP199712-199802

main81110-16700iEL54..RHD..CP..EUR199712

LH TRAFFIC SPEC

main81110-16710iEL54..RHD..EUR199712-199802

main81110-16720iEL54..ARL199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iEL54199508

12V 60/55W,*HAL *WH

sub90981-13055

main90981-22004iEL54..RHD..CP..EUR199608-199712

12V 60/55W,*HAL *WH,LH TRAFFIC SPEC

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-16630iEL54..LHD..CVT199512-199802

main81130-16630iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main81130-16640iEL54..GEN199608-199702

main81130-16640iEL54..LHD199508-199608

W/O(LEVELING)

main81130-16650iEL54..RHD..EUR199512-199802

main81130-16660iEL54..ARL199508-199712

main81130-16700iEL54..LHD199712-199802

main81130-16700iEL54..RHD..CP..EUR199712

LH TRAFFIC SPEC

main81130-16710iEL54..RHD..EUR199712-199802

main81130-16720iEL54..ARL199712

81139COVER, HEADLAMP SOCKET

main81139-16610iEL54199508-199512

main81139-16680iEL54..CP199712-199802

main90075-65005iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main90075-65005iEL54199512-199802

81150HEADLAMP ASSY, LH

main81150-16630iEL54..LHD..CVT199512-199802

main81150-16630iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main81150-16640iEL54..LHD199508-199608

W/O(LEVELING)

main81150-16640iEL54..GEN199608-199702

main81150-16650iEL54..RHD..EUR199512-199802

main81150-16660iEL54..ARL199508-199712

main81150-16700iEL54..RHD..CP..EUR199712

LH TRAFFIC SPEC

main81150-16700iEL54..LHD..CP199712-199802

main81150-16710iEL54..RHD..CP..EUR199712-199802

main81150-16720iEL54..ARL199712

81175UNIT ASSY, HEADLAMP, LH

main81170-16630iEL54..LHD..CVT199512-199802

main81170-16630iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main81170-16640iEL54..LHD199508-199608

W/O(LEVELING)

main81170-16640iEL54..GEN199608-199702

main81170-16650iEL54..RHD..EUR199512-199802

main81170-16660iEL54..ARL199508-199712

main81170-16700iEL54..LHD199712-199802

main81170-16700iEL54..RHD..CP..EUR199712

LH TRAFFIC SPEC

main81170-16710iEL54..RHD..CP..EUR199712-199802

main81170-16720iEL54..ARL199712

81195SCREW, HEADLAMP

main81195-16010iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main81195-16010iEL54199508

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iEL54..RHD..CP..EUR199608-199712

12V 5W,LH TRAFFIC SPEC

main99132-12050iEL54199508

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-99109iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

main90075-99109iEL54199508

85661MOTOR, HEADLAMP LEVELING, RH

main81143-16010iEL54..CP..EUR199712-199802

main85661-16010iEL54..EUR199512-199802

main85661-16010iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

85691MOTOR, HEADLAMP LEVELING, LH

main81143-16010iEL54..CP..EUR199712-199802

main85691-16010iEL54..EUR199512-199802

main85691-16010iEL54..RHD..CP..EUR199608-199712

LH TRAFFIC SPEC

9163560618

main91635-60618

12 parts on this diagram · 1 diagram in section
