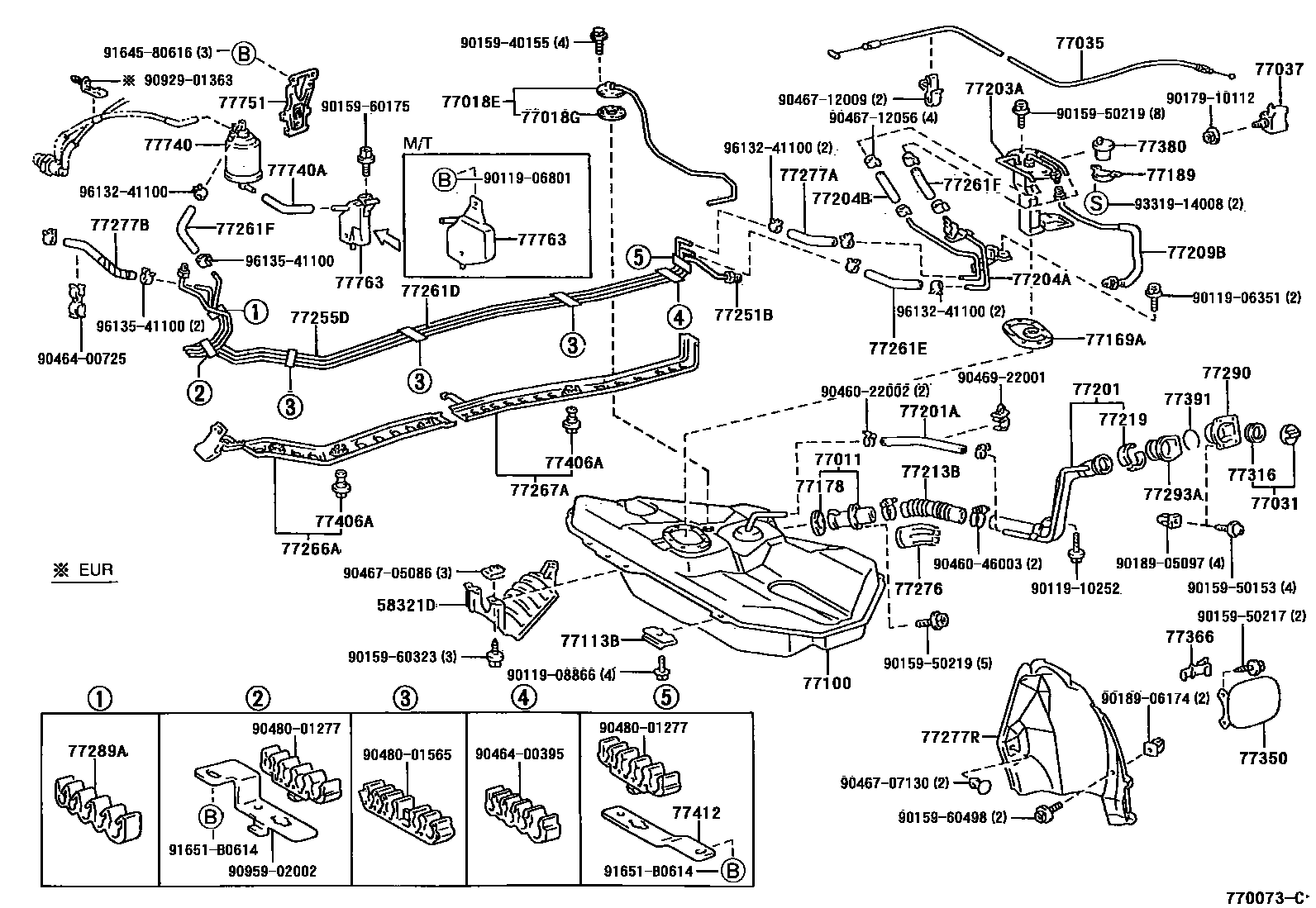

FUEL TANK & TUBE
58321DINSULATOR, REAR FLOOR HEAT, NO.1
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
77031CAP ASSY, FUEL TANK
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77113BPLATE, FUEL TANK SIDE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=280
77203ATUBE SUB-ASSY, FUEL SUCTION
77204ATUBE, FUEL TANK RETURN
77204BHOSE, FUEL(FOR FUEL RETURN)
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77255DTUBE, FUEL RETURN
77261DTUBE, FUEL TANK TO CANISTER
77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
L=140
L=140
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
L=110
*H,L=80
L=80
77266APROTECTOR, FUEL TUBE, NO.1
77267APROTECTOR, FUEL TUBE, NO.2
77276PROTECTOR, FUEL HOSE
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
*H,L=360
*H,L=360
*H,L=360
77277RPROTECTOR, FUEL TANK FILLER PIPE
77289ACLAMP, FUEL TUBE W/GROMMET, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77406ACLIP(FOR FUEL TUBE PROTECTOR)
77412SUPPORT, FUEL TUBE GROMMET, NO.2
77740CANISTER ASSY, CHARCOAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
L=120
*H,L=90
77751BRACKET, CHARCOAL CANISTER BASE
77763CASE, CHARCOAL CANISTER DRAIN
9011906351
9011906801
9011908866
9011910252
9015940155
9015950153
9015950217
9015950219
9015960175
9015960323
9015960498
9017910112
9018905097
9018906174
9046022002
9046046003
9046400395
9046400725
9046705086
9046707130
9046712009
9046712056
9046922001
9048001277
9048001565
9092901363
9095902002
9164580616
91651B0614
9331914008
9613241100
9613541100
77 parts on this diagram · 2 diagrams in section
