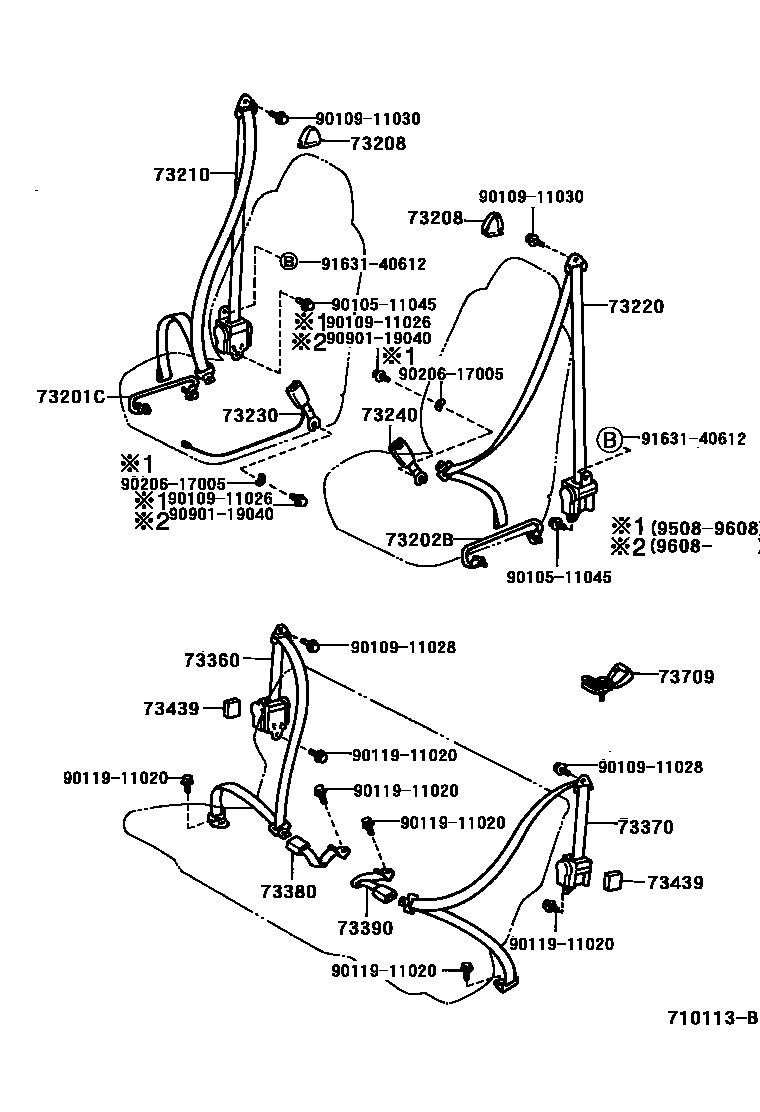

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0003 1 0004 1 0005 1

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-16010iEL54..ARL,EUR199508-199802

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-16010iEL54..ARL,EUR199508-199802

73208COVER SUB-ASSY, FR SEAT BELT ANCHOR

main73208-16010-B0iEL54..ARL,EUR199508-199802

BLUISH GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-16650-B0iEL54..GEN199508-199702

BLUISH GRAY,TRIM1#

main73210-16660-B0iEL54..CP..(ARL,EUR)199508-199712

BLUISH GRAY,TRIM1#

main73210-1G030-B0iEL54..CP..EUR199712

BLUISH GRAY,TRIM1#

main73210-1G040-B0iEL54..ARL199712

BLUISH GRAY,TRIM1#

main73210-1G070-B0iEL54..CVT199802

BLUISH GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-1G030-B0iEL54..CP..EUR199712

BLUISH GRAY,TRIM1#

main73210-1G040-B0iEL54..ARL199712

BLUISH GRAY,TRIM1#

main73220-16580-B0iEL54..GEN199508-199608

BLUISH GRAY,TRIM1#

main73220-16590-B0iEL54..CP..(ARL,EUR)199508-199712

BLUISH GRAY,TRIM1#

main73220-16760-B0iEL54..GEN199608-199702

BLUISH GRAY,TRIM1#

main73220-16800-B0iEL54..ARL199712

W(*80),BLUISH GRAY,TRIM1#

main73220-16820-B0iEL54..CVT199802

BLUISH GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-16410-B0iEL54..CP..EUR199512-199712

SHADOW GRAY,TRIM1#

sub73230-16410

main73230-16420-B0iEL54..ARL199508-199712

SHADOW GRAY,TRIM1#

main73230-20730-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

sub73230-20730

main73240-16220-B0iEL54..GEN199508-199702

SHADOW GRAY,TRIM1#

sub73230-10400

sub73240-16220

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-16410-B0iEL54..CP..(ARL,EUR)199508-199712

SHADOW GRAY,TRIM1#

sub73230-16410

main73230-20730-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

sub73230-20730

main73240-16220-B0iEL54..GEN199508-199702

SHADOW GRAY,TRIM1#

sub73230-10400

sub73240-16220

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-16400-B1iEL54..CP..(EUR,GEN)199508-199712

BLUISH GRAY,TRIM1#

main73360-16410-B0iEL54..ARL199508-199712

SHADOW GRAY,TRIM1#

main73360-16430-B0iEL54..CP199712

BLUISH GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-16310-B1iEL54..CP..(EUR,GEN)199508-199712

BLUISH GRAY,TRIM1#

main73370-16320-B0iEL54..ARL199508-199712

SHADOW GRAY,TRIM1#

main73370-16340-B0iEL54..CP199712

BLUISH GRAY,TRIM1#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-16270-B1iEL54..EUR,GEN199508-199608

BLUISH GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16270-B2iEL54..CP..(EUR,GEN)199608-199712

SHADOW GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16300-B0iEL54..ARL199508-199608

SHADOW GRAY,TRIM1#

sub73380-16300

main73380-16300-B1iEL54..ARL199608-199712

SHADOW GRAY,TRIM1#

sub73380-16300

main73380-16340-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-16270-B1iEL54..EUR,GEN199508-199608

BLUISH GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16270-B2iEL54..CP..(EUR,GEN)199608-199712

SHADOW GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16300-B0iEL54..ARL199508-199608

SHADOW GRAY,TRIM1#

sub73380-16300

main73380-16300-B1iEL54..ARL199608-199712

SHADOW GRAY,TRIM1#

sub73380-16300

main73380-16340-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

73439CUSHION, REAR SEAT BELT RETRACTOR

main73439-12010iEL54..CP199508

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73708-20030-B1iEL54..ARL199508

SHADOW GRAY,TRIM1#

sub73708-20030

9010511045

main90105-11045

9010911026

main90109-11026

9010911028

main90109-11028

9010911030

main90109-11030

9011911020

main90119-11020

9020617005

main90206-17005

9090119040

main90901-19040

9163140612

main91631-40612

21 parts on this diagram · 4 diagrams in section
