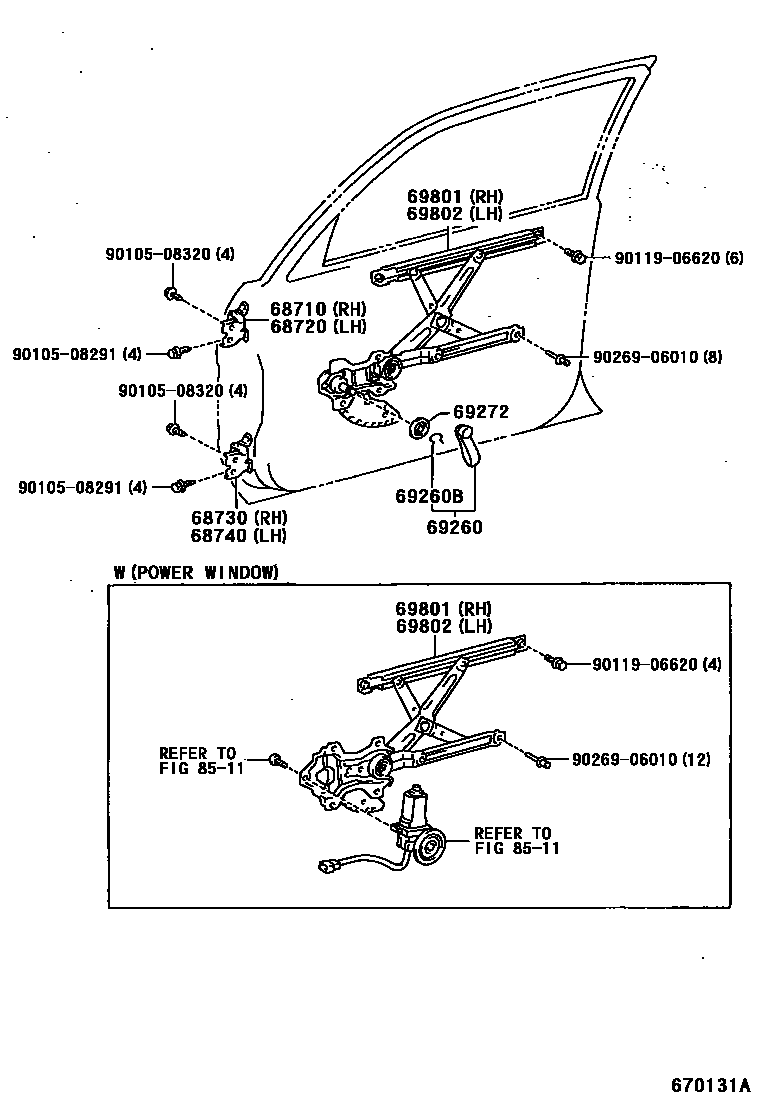

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16060iEL54199508

sub68710-60050

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16060iEL54199508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-16060iEL54199508

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-16060iEL54199508

sub68710-60050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B1iEL54..ARL,GEN199508

SHADOW GRAY,TRIM1#

sub69260-20090

main69260-20100-B0iEL54..EUR199512

SHADOW GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iEL54199508

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iEL54..EUR199512-199608

sub69268-20020

main69268-20020iEL54..ARL,GEN199508-199608

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16060iEL54..CP199508

W(POWER WINDOW)

main69801-16080iEL54..CVT199610

W(POWER WINDOW)

main69810-16170iEL54199508-199608

main69810-16220iEL54..CVT199610

main69810-16250iEL54..CP199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16060iEL54..CP199508

W(POWER WINDOW)

main69802-16080iEL54..CVT199610

W(POWER WINDOW)

main69820-16170iEL54199508-199608

main69820-16220iEL54..CVT199610

main69820-16250iEL54..CP199608

8511

9010508291

main90105-08291

9010508320

main90105-08320

9011906620

main90119-06620

9026906010

main90269-06010

14 parts on this diagram · 2 diagrams in section
