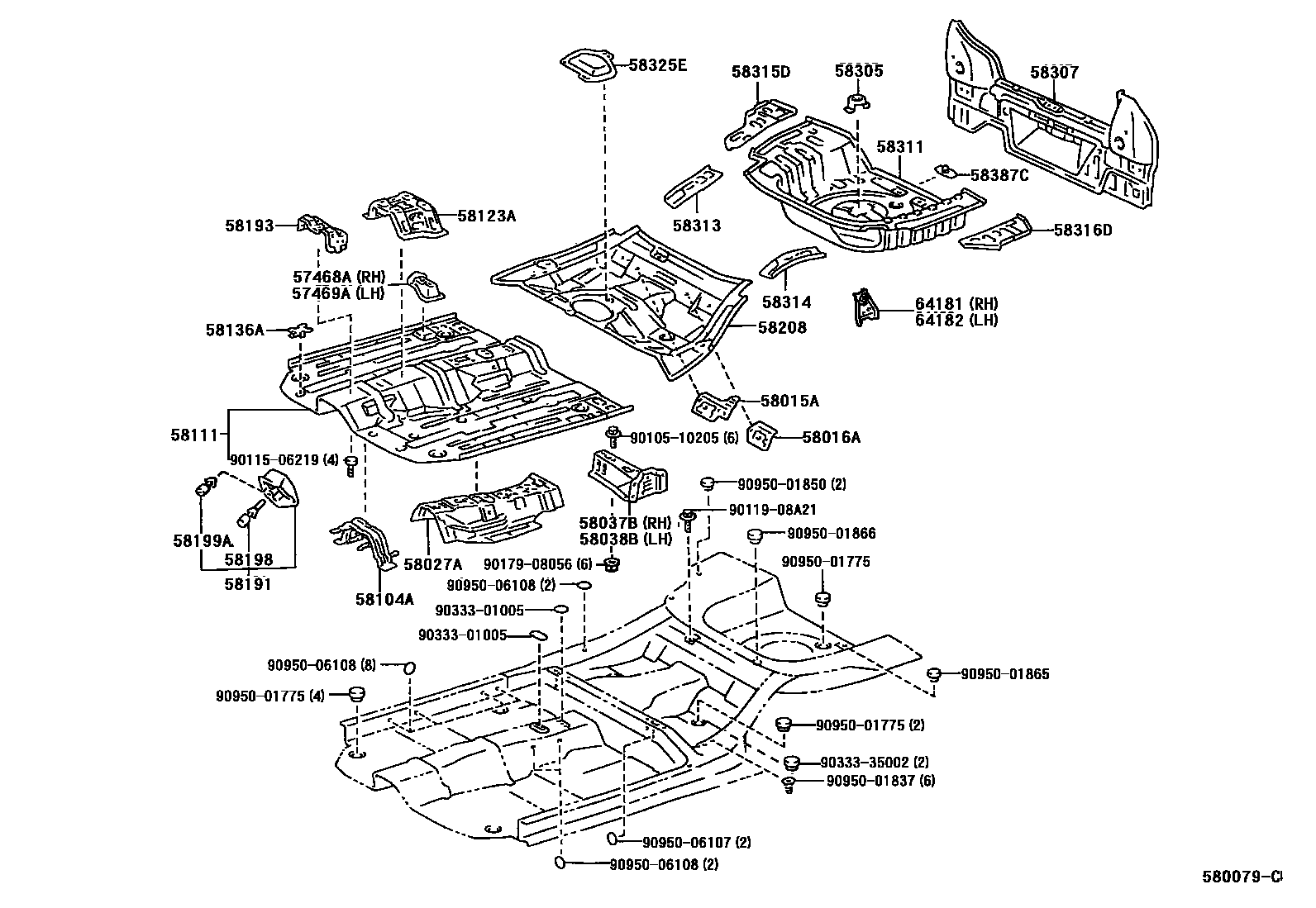

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10030iEL54199508

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10030iEL54199508

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-16050iEL54199508

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEL54199508

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16091iEL54199508

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-16010iEL54..CP199508

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-16010iEL54..CP199508

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-16011iEL54..ARL,GEN199508-199601

main58104-16020iEL54199608

58111PAN, FRONT FLOOR

main58111-16902iEL54199508-199608

sub58111-16903

main58111-16903iEL54199608

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10050iEL54..ARL,GEN199508-199712

main58123-16050iEL54..EUR199512-199608

main58123-16050iEL54..ARL,EUR199608

W(*80)

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iEL54199508

58191FOOTREST, FRONT FLOOR

main58191-16060iEL54..LHD..CP199712-199802

main58191-16070iEL54..RHD199508

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16040iEL54199508-199802

main58193-16060iEL54..CP199712-199802

58198CLIP, FOOTREST

main58198-16020iEL54..LHD..CP199712-199802

main58198-16030iEL54..RHD199508

58199ACLIP, FOOTREST, NO.2

main58199-16010iEL54..LHD..CP199712-199802

main58199-16020iEL54..RHD199508

58208PAN, CENTER FLOOR

main58211-16091iEL54199508

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL54199508

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16450iEL54199508

58311PAN, REAR FLOOR

main58311-10192iEL54199508-199601

sub58311-10193

main58311-10193iEL54199601

58313PANEL, REAR FLOOR SIDE, RH

main58313-16030iEL54199508

58314PANEL, REAR FLOOR SIDE, LH

main58314-16090iEL54199508

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-16060iEL54199508

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-16080iEL54199508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58031-16020iEL54199508

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEL54199508

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64181-16030iEL54..CP199508

64182REINFORCEMENT, REAR SEAT BELT ANCHOR, NO.2

main64182-16020iEL54..CP199508

9010510205

main90105-10205

9011506219

main90115-06219

9011908A21

main90119-08A21

9017908056

main90179-08056

9033301005

main90333-01005

9033335002

main90333-35002

9095001775

main90950-01775

9095001837

main90950-01837

9095001850

main90950-01850

9095001865

main90950-01865

9095001866

main90950-01866

9095006107

main90950-06107

9095006108

main90950-06108

40 parts on this diagram · 2 diagrams in section
