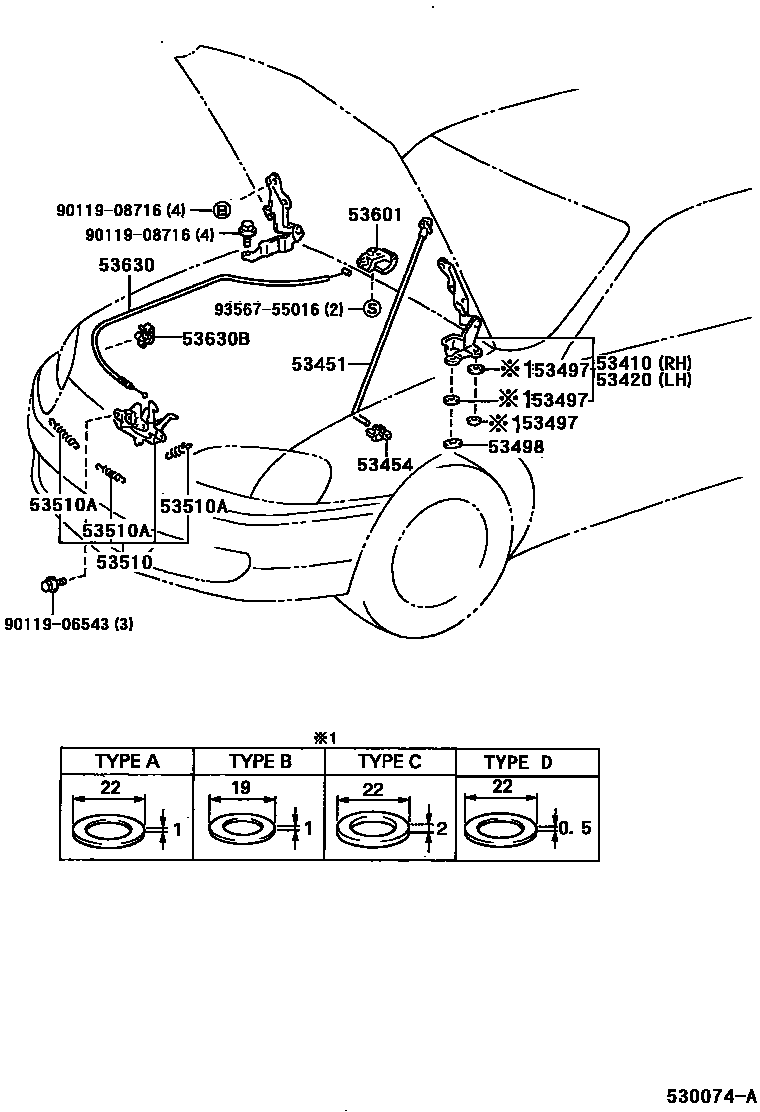

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16080iEL54199508-199802

sub53410-16100

main53410-16100iEL54..CP199712-199802

53420HINGE ASSY, HOOD, LH

main53420-16060iEL54199508-199802

sub53420-16080

main53420-16080iEL54..CP199712-199802

53451ROD, HOOD SUPPORT

main53440-16060iEL54..GEN199508-199702

main53440-16070iEL54..ARL,EUR199508

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEL54199508

53497PAD, HOOD HINGE, NO.1

main53497-12050iEL54199508

T=1.0,TYPE A:REFER TO ILLUSTRATION

sub53497-42010

main53497-12070iEL54199708

T=0.5,TYPE D:REFER TO ILLUSTRATION

main53497-16020iEL54199508

OD=19,TYPE B:REFER TO ILLUSTRATION

main53497-20070iEL54199508-199708

T=2.0,TYPE C:REFER TO ILLUSTRATION

53498PAD, HOOD HINGE, NO.2

main53498-16020iEL54199508

53510LOCK ASSY, HOOD

main53510-16320iEL54..RHD199508

main53510-16330iEL54..LHD199508

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iEL54199508

WD=0.9,CW=20.75

main90506-09053iEL54199508

WD=0.9,CW=24.5

main90506-18061iEL54..RHD199508

WD=1.8,CW=18

main90506-20008iEL54..LHD199508

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-22iEL54199508

BLACK,TRIM1#

sub53601-16020

sub53601-24030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16340iEL54..RHD199508

main53630-16350iEL54..LHD199508

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iEL54199508

9011906543

main90119-06543

9011908716

main90119-08716

9356755016

main93567-55016

14 parts on this diagram · 1 diagram in section
