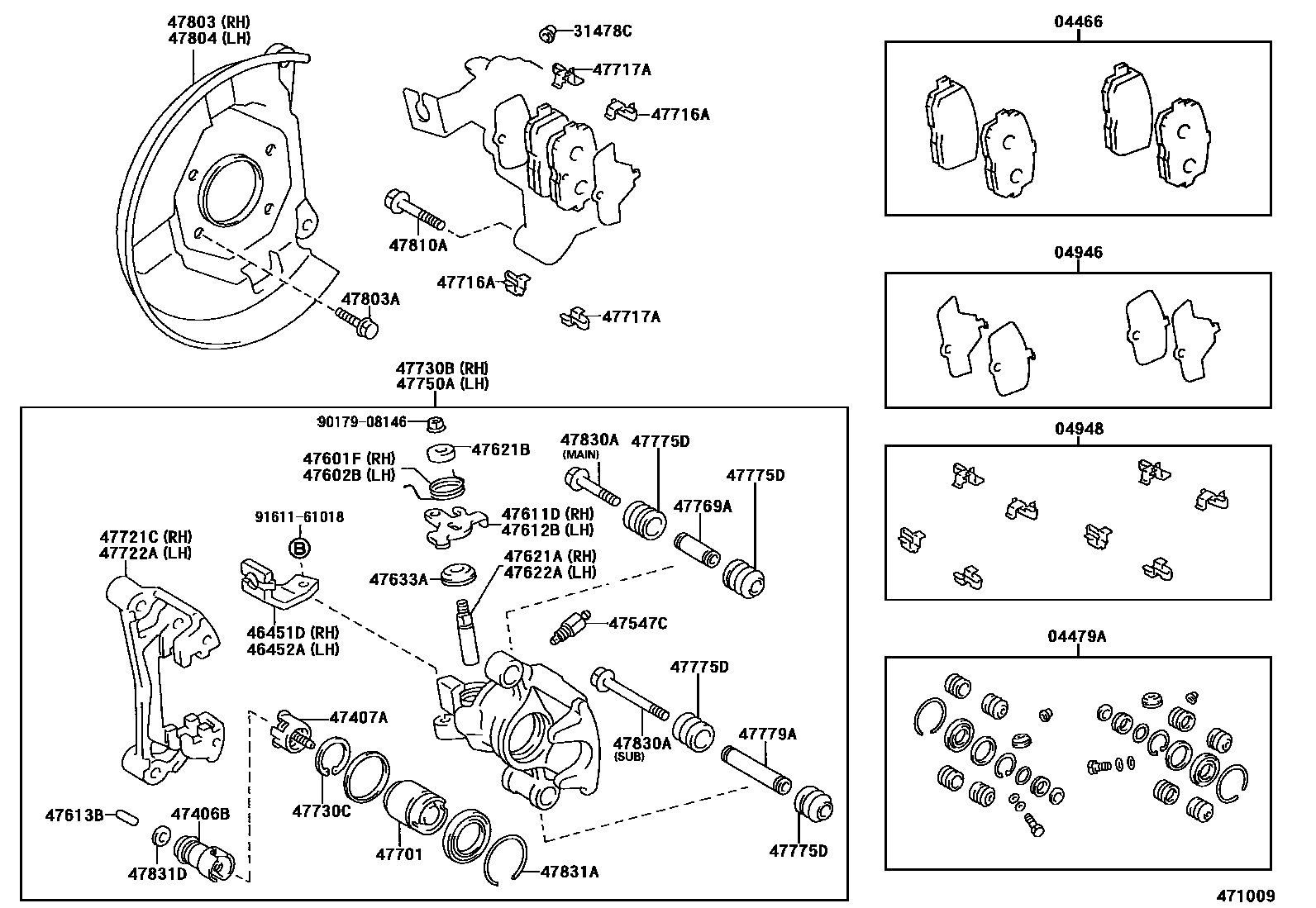

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH
46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH
47406BCLUTCH SUB-ASSY, REAR DISC BRAKE
47407AADJUSTER ASSY, REAR DISC BRAKE PAD
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
47611DLEVER, PARKING BRAKE DISC, RH
47612BLEVER, PARKING BRAKE DISC, LH
47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)
47621ASHAFT, PARKING LEVER, RH
47621BSPACER(FOR PARKING LEVER SHAFT)
47622ASHAFT, PARKING LEVER, LH
47633ABOOT, PARKING BRAKE CRANK
47701PISTON SUB-ASSY, REAR DISC BRAKE
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47730CRING, HOLE SNAP(FOR REAR DISC BRAKE CYLINDER)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803ABOLT(FOR REAR DISC BRAKE DUST COVER)
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47830ABOLT(FOR REAR DISC BRAKE)
SUB PIN SIDE
MAIN PIN SIDE
47831ARING, SET(FOR REAR DISC BRAKE PISTON)
47831DRING(FOR REAR DISC BRAKE)
9017908146
main90179-08146
9161161018
main91611-61018
39 parts on this diagram · 1 diagram in section
