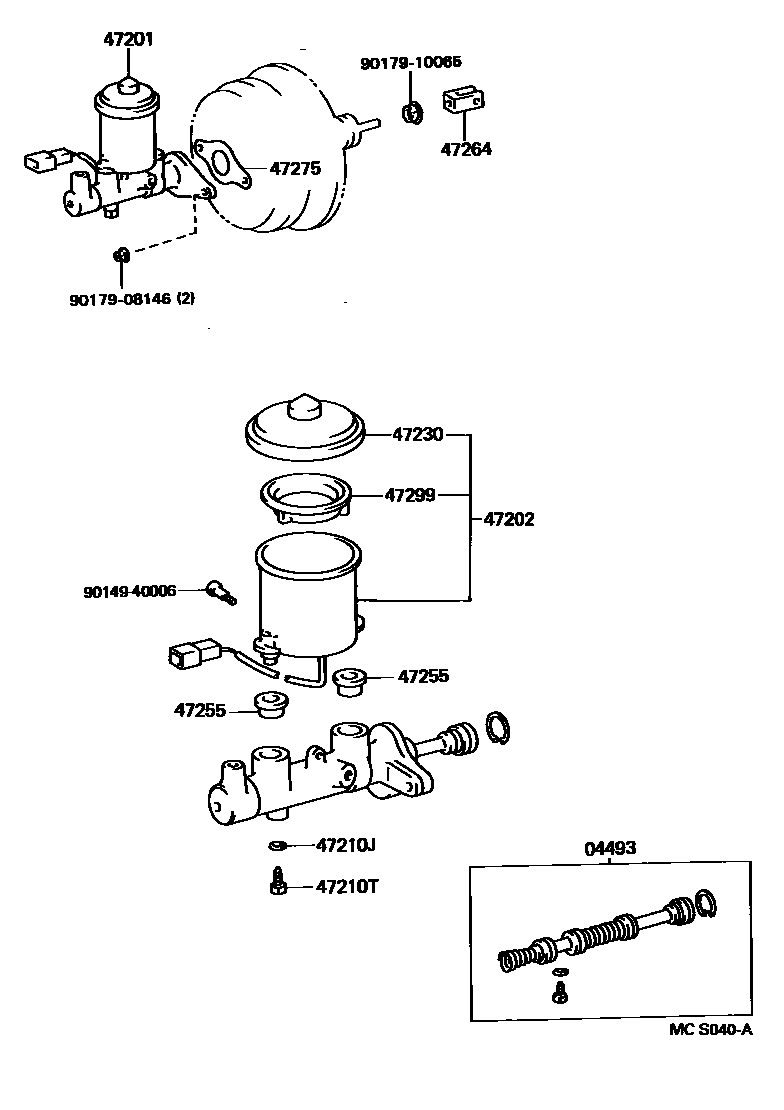

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-10190iEL54..GEN199602-199702

main04493-12200iEL54..CVT199705-199802

W(ABS)

main04493-16080iEL54..ARL,EUR199508-199705

main04493-16090iEL54..ARL,EUR199508-199712

W(ABS)

main04493-16100iEL54..GEN199508-199602

main04493-16130iEL54..EUR199705

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-10230iEL54..GEN199602-199702

sub47201-10210

main47201-16230iEL54..ARL199508-199712

main47201-16250iEL54..ARL199508-199712

W(ABS)

main47201-16270iEL54..GEN199508-199602

main47201-16300iEL54..RHD..EUR199512-199705

main47201-16310iEL54..RHD..EUR199512-199705

W(ABS)

main47201-16320iEL54..LHD..EUR199512-199705

main47201-16330iEL54..LHD..EUR199512-199705

W(ABS)

main47201-16360iEL54..RHD..CVT199705-199802

main47201-16370iEL54..RHD..CVT199705-199802

W(ABS)

main47201-16380iEL54..LHD199705

main47201-16390iEL54..LHD199705-199802

W(ABS)

main47201-16420iEL54..RHD..CP..EUR199712-199802

main47201-16430iEL54..ARL199712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-10010iEL54..ARL199508-199712

main47220-10020iEL54..RHD..CVT199512-199802

main47220-16050iEL54..GEN199602-199702

main47220-16060iEL54..GEN199508-199602

main47220-16070iEL54..LHD..EUR199512

main47220-16120iEL54..ARL199712

main47220-16140iEL54..RHD..CP..EUR199712-199802

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL54..GEN199508-199602

main90430-06104iEL54..ARL,EUR199508-199602

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL54..ARL,EUR199508-199602

main90109-06123iEL54..GEN199508-199602

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-13010iEL54..EUR199512

main47230-16010iEL54..ARL199508-199602

main47230-16270iEL54..GEN199508-199602

sub47230-16010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL54..ARL,EUR199508-199602

main47255-20010iEL54..GEN199508-199602

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iEL54..RHD199508

main47264-20070iEL54..LHD199508

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEL54199508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL54..ARL,EUR199508-199602

main47299-16020iEL54..GEN199508-199602

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

13 parts on this diagram · 2 diagrams in section
