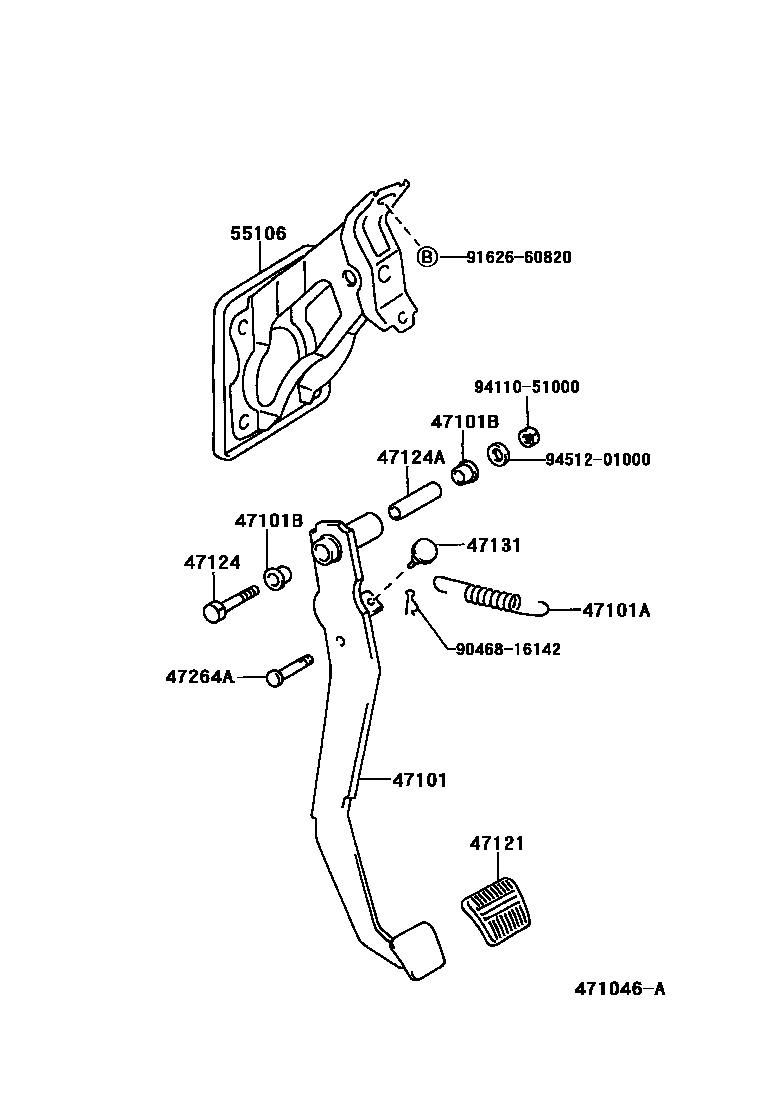

BRAKE PEDAL & BRACKET

0001 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-16170iEL54..RHD..MTM199508-199802

main47101-16180iEL54..ATM..ARL199508-199712

main47101-16190iEL54..LHD..MTM199508-199802

main47101-16200iEL54..ATM..GEN199508-199702

main47101-16210iEL54..RHD..MTM199712-199802

main47101-16220iEL54..ATM199712

main47101-16270iEL54..LHD..CP199712-199802

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14038iEL54199508

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iEL54199508

47121PAD, BRAKE PEDAL

main31321-14020iEL54..MTM199508

main47121-12020iEL54..ATM199508

47124SHAFT, BRAKE PEDAL

main90101-10015iEL54199508

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEL54199508

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iEL54199508-199608

47264APIN(FOR PUSH ROD)

main90249-08051iEL54199508

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-16150iEL54..RHD199508-199802

main55106-16160iEL54..LHD199508-199802

main55106-16170iEL54..RHD..CP199712-199802

main55106-16180iEL54..LHD..CP199712-199802

9046816142

main90468-16142

9162660820

main91626-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 3 diagrams in section
