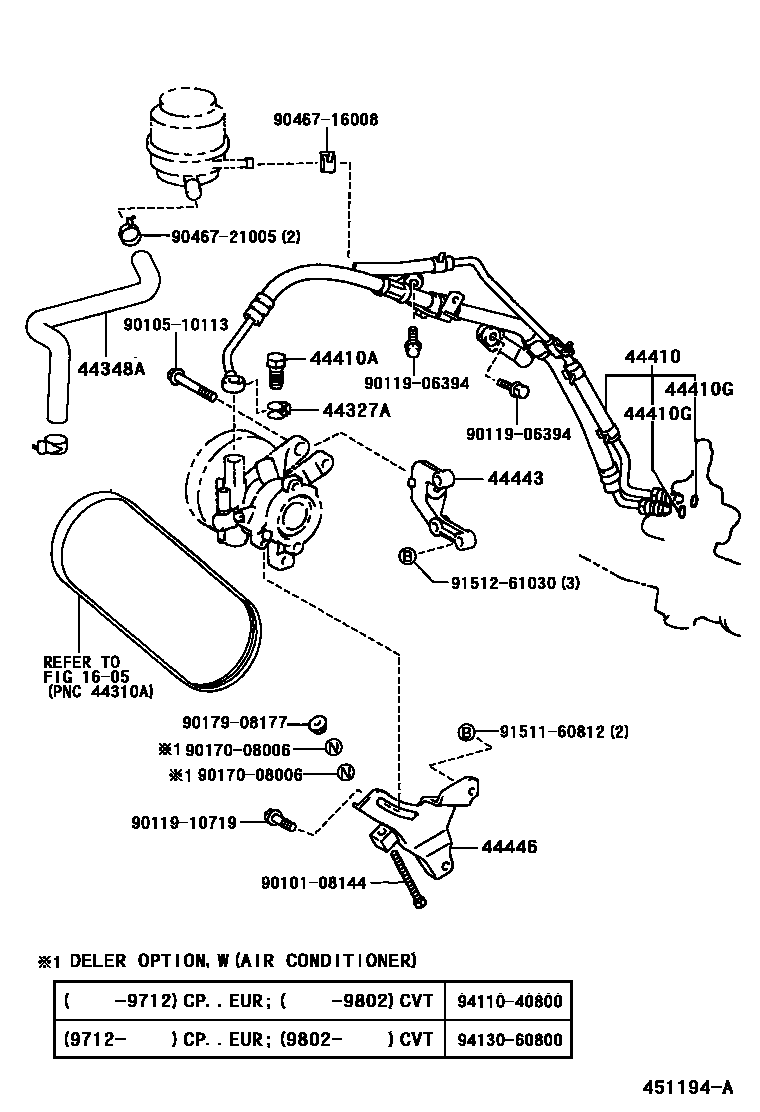

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL54¥260199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10051iEL54..RHD¥2,000199508-199704

sub44348-46010¥2,010

main44348-16150iEL54..LHD¥2,230199508

main44348-46010iEL54..RHD¥2,010199704

44410TUBE ASSY, PRESSURE FEED

main44410-16250iEL54..RHD¥24,100199508-199704

sub44410-46010¥24,100

main44410-16260iEL54..LHD..MTM¥23,000199508-199610

sub44410-16460¥23,000

main44410-16270iEL54..ATM..GEN¥23,000199508-199610

sub44410-16470¥23,000

main44410-16330iEL54..ATM..GEN¥24,100199610-199702

sub44410-16410¥23,000

main44410-16360iEL54..LHD..MTM¥24,100199610-199802

sub44410-16400¥20,100

main44410-16400iEL54..LHD..CP¥20,100199712-199802

main44410-46010iEL54..RHD¥24,100199704

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iEL54¥520199508

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iEL54..RHD¥260199508

44443BRACKET, PUMP

main44443-10030iEL54¥3,010199508

44446STRUT, ADJUSTING

main44446-16051iEL54¥1,340199508

9010108144

main90101-08144¥70

9010510113

main90105-10113¥160

9011906394

main90119-06394¥160

9011910719

main90119-10719¥230

9017008006

main90170-08006¥160

9017908177

main90179-08177¥120

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151160812

main91511-60812¥140

9151261030

main91512-61030¥170

9411040800

main94110-40800¥120

9413060800

main94130-60800¥60

20 parts on this diagram · 3 diagrams in section
