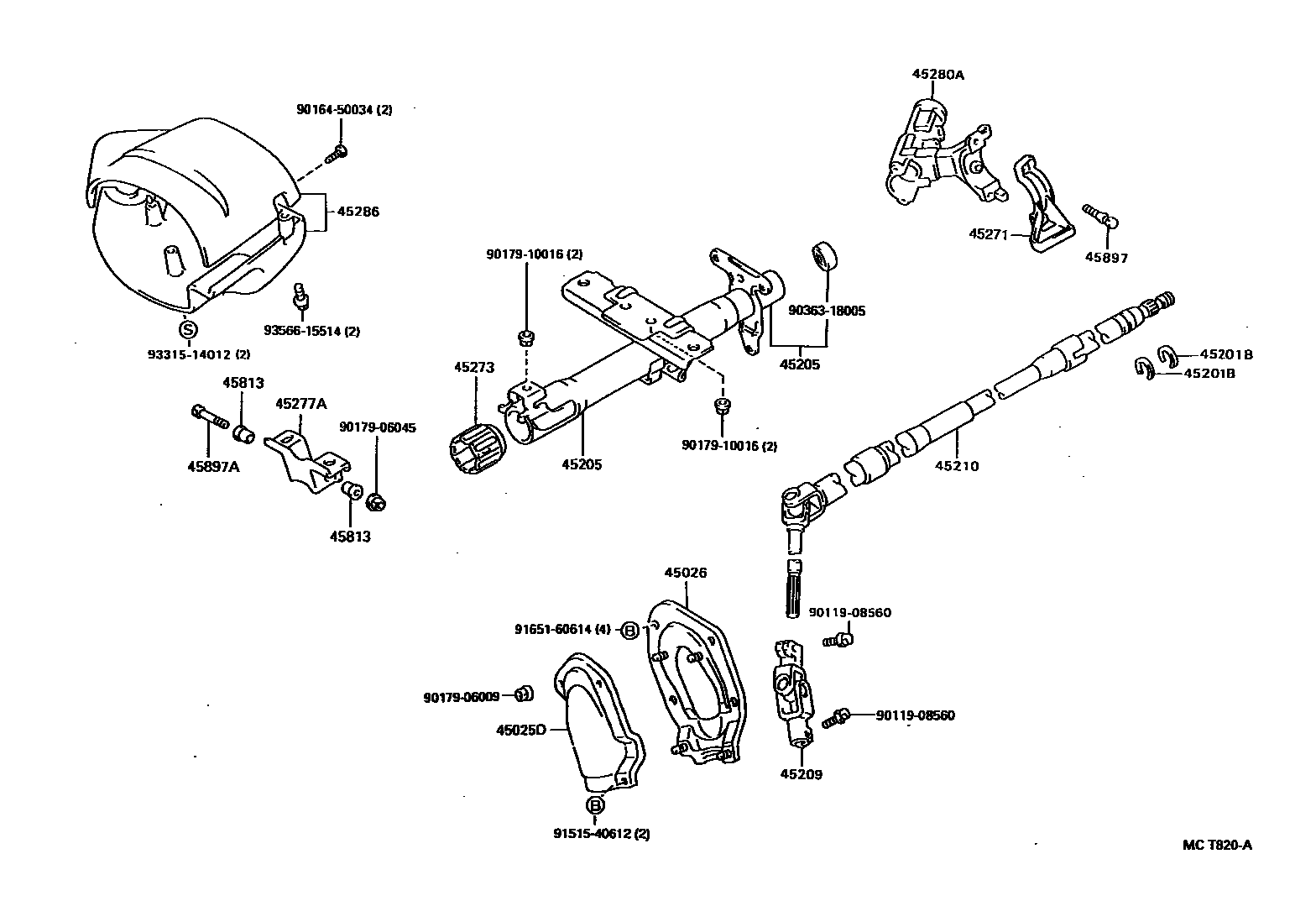

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
W(ELECTRICAL TYPE *80)
W(MECHANICAL *80) OR W/O(*80)
45209YOKE SUB-ASSY, STEERING SLIDING
NSK
45210SHAFT ASSY, STEERING MAIN
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45277ASUPPORT, TILT STEERING
45286COVER, STEERING COLUMN
W(MECHANICAL *80) OR W/O(*80),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=14
ID=8,OD=10
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9016450034
main90164-50034
9017906009
main90179-06009
9017906045
main90179-06045
9017910016
main90179-10016
9036318005
main90363-18005
9151540612
main91515-40612
9165160614
main91651-60614
9331514012
main93315-14012
9356615514
main93566-15514
24 parts on this diagram · 3 diagrams in section
