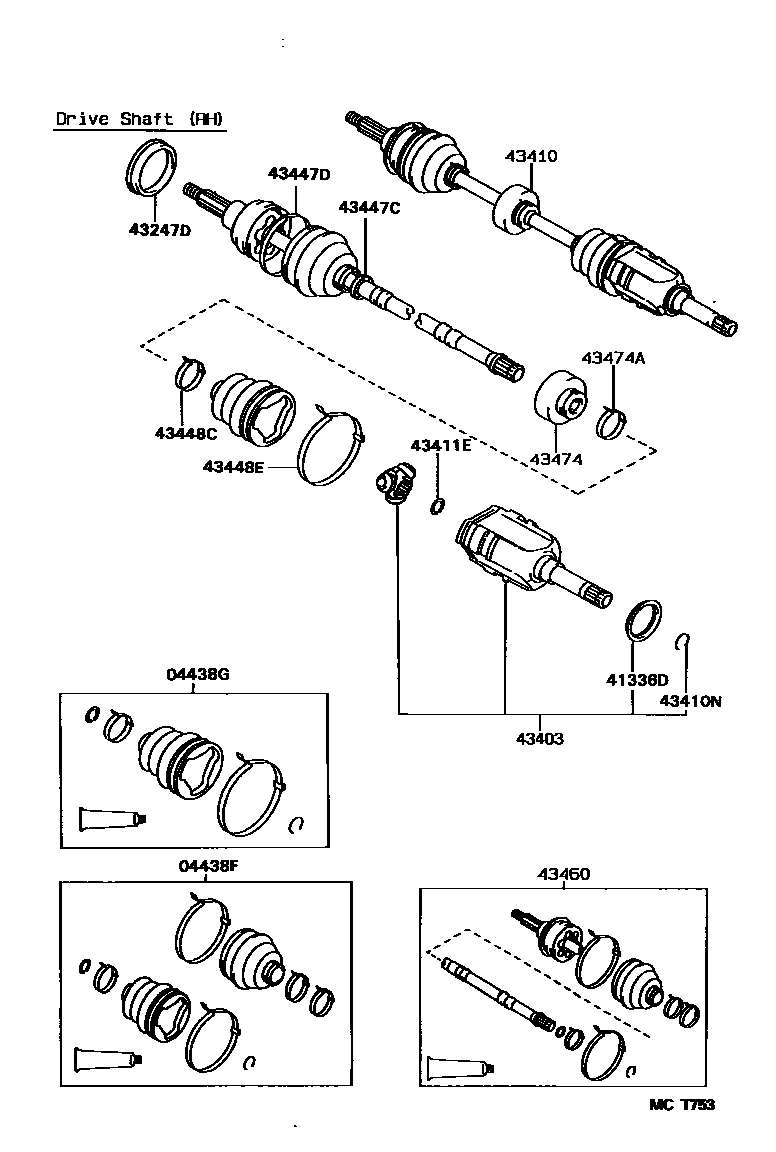

FRONT DRIVE SHAFT

0001 1W/O(ABS) 0002 1W(ABS) 0003 1W/O(ABS) 0004 1W(ABS)

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-16080iEL54¥10,800199508-199907

sub04438-16081¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-16070iEL54¥6,700199508-199907

sub04438-16071¥6,700

main04438-16090iEL54..ARL,EUR¥10,800199508-199608

W(ABS)

sub04438-16091¥10,800

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iEL54¥130199508-199802

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-16040iEL54¥940199508

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEL54¥23,500199508-199903

sub43403-10011¥19,500

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16190iEL54¥82,900199508-199709

sub43410-16191¥76,500

sub90178-22001¥310

main43410-16191iEL54¥76,500199709

sub43410-16290¥80,100

main43410-16200iEL54..ARL,EUR¥82,900199508-199709

W(ABS)

sub43410-16201¥76,800

sub90178-22001¥310

main43410-16201iEL54¥76,800199709

W(ABS)

sub43410-16300¥79,900

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iEL54¥100199508

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iEL54¥110199508

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16010iEL54..CVT¥140199508-199802

ID=32.7

main42345-16010iEL54¥140199802

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020iEL54¥280199508

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iEL54¥140199508-199802

ID=32.7

main42345-16010iEL54¥140199802

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16080iEL54¥500199508

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19615iEL54..ARL,EUR¥49,100199508-199709

W(ABS)

sub43460-19616¥49,100

sub90178-22001¥310

main43460-19616iEL54¥49,100199709

W(ABS)

sub43460-80078¥50,600

sub43474-52030¥4,640

main43460-19625iEL54¥49,100199508-199709

sub43460-19626¥49,100

sub90178-22001¥310

main43460-19626iEL54¥49,100199709

sub43460-80077¥50,600

43474DAMPER, DRIVE SHAFT

main43474-20050iEL54¥2,000199508

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iEL54¥660199508

15 parts on this diagram · 4 diagrams in section
