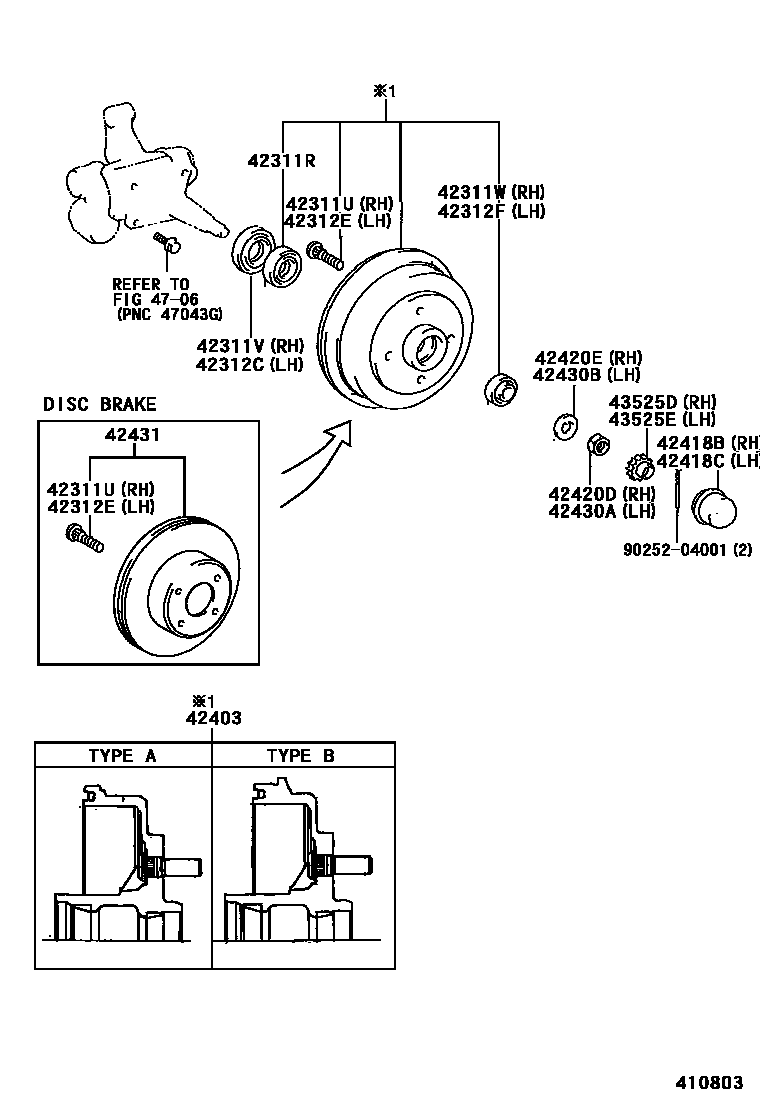

REAR AXLE SHAFT & HUB

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-27001iEL54199508-199907

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iEL54199508-199907

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-38037iEL54199508-199907

42311WBEARING(FOR REAR AXLE SHAFT OUTER RH)

main90366-17010iEL54199508-199907

sub90368-17017

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-38037iEL54199508-199907

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iEL54199508-199907

42312FBEARING(FOR REAR AXLE SHAFT OUTER LH)

main90366-17010iEL54199508-199907

sub90368-17017

42403DRUM SUB-ASSY, REAR BRAKE

main42043-19015iEL54..ARL199508-199512

main42043-19045iEL54..ARL199512-199907

TYPE A:REFER TO ILLUSTRATION, W(ABS)

main42403-19015iEL54199508-199512

TYPE B:REFER TO ILLUSTRATION

sub42043-19015

main42403-19085iEL54199512-199907

TYPE A:REFER TO ILLUSTRATION

sub42043-19045

42418BCAP, REAR HUB GREASE, RH

main43514-10030iEL54199508-199907

42418CCAP, REAR HUB GREASE, LH

main43514-10030iEL54199508-199907

42420DNUT (FOR REAR AXLE SHAFT RH)

main94125-41600iEL54199508-199907

42420EWASHER, CLAW (FOR REAR AXLE SHAFT RH)

main90214-16010iEL54199508-199907

42430ANUT (FOR REAR AXLE SHAFT LH)

main94125-41600iEL54199508-199907

42430BWASHER, CLAW (FOR REAR AXLE SHAFT LH)

main90214-16010iEL54199508-199907

42431DISC, REAR

main42043-19065iEL54..CP..EUR199712-199802

43525DCAP, REAR WHEEL ADJUSTING LOCK, RH

main43525-20011iEL54..CP199508-199907

43525ECAP, REAR WHEEL ADJUSTING LOCK, LH

main43525-20011iEL54..CP199508-199907

4706

9025204001

main90252-04001

19 parts on this diagram · 1 diagram in section
