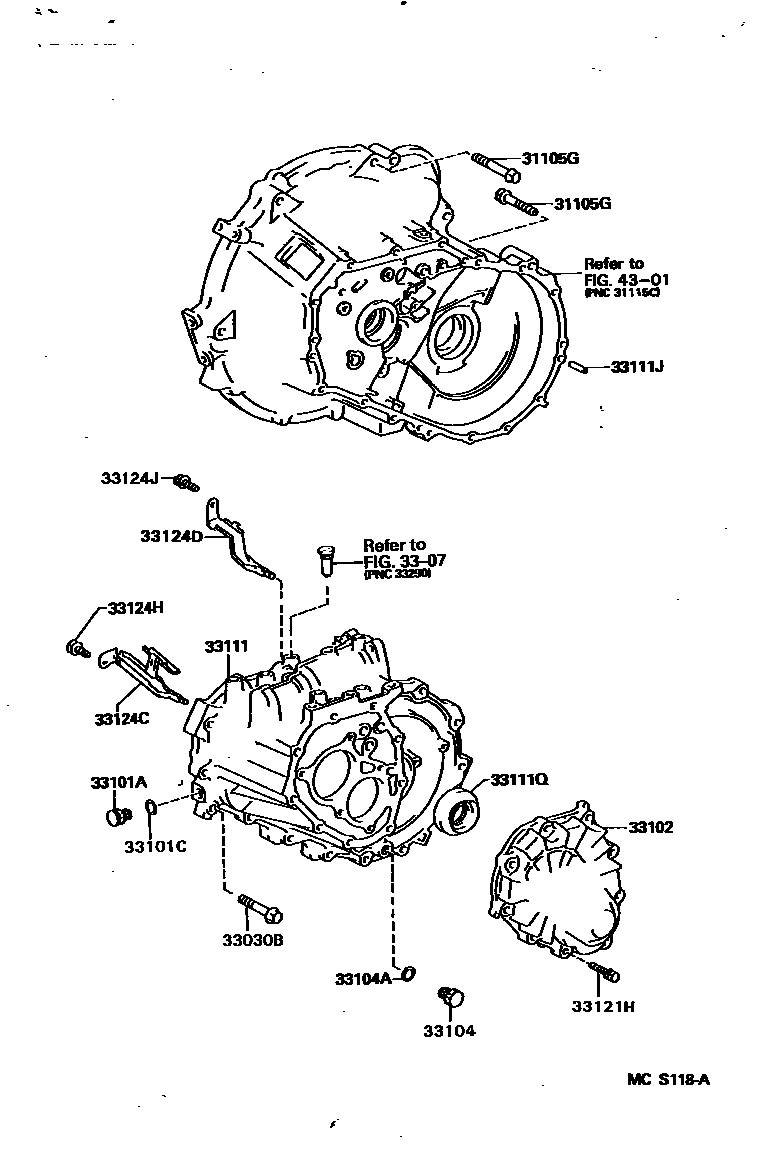

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEL54..MTM¥250199508

*10-1.25PX60-22

main91612-41025iEL54..MTM..(ARL,GEN)¥170199508

*10-1.25PX25-25

sub90119-10223¥120

main91619-61260iEL54..MTM¥130199508

*12-1.25PX60-30

main91621-60614iEL54..MTM..(ARL,GEN)¥120199508

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iEL54..MTM¥110199508

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEL54..MTM¥180199508

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEL54..MTM¥110199508

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iEL54..MTM¥3,540199508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEL54..MTM¥180199508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEL54..MTM¥110199508

33111CASE, MANUAL TRANSMISSION

main33111-16051iEL54..MTM¥35,100199508-199704

sub33111-16052¥35,100

sub90109-12073¥230

main33111-16052iEL54..MTM¥35,100199704-199907

sub33111-16053¥35,200

sub90109-18005¥210

sub90430-18008¥110

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEL54..MTM¥120199508

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iEL54..MTM¥270199508

sub90311-34028¥310

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08A34iEL54..MTM¥130199508

sub90119-08373¥140

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iEL54..MTM¥750199508

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iEL54..MTM¥1,260199508

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEL54..MTM¥200199508

sub91611-G0820¥160

33124JBOLT, W/WASHER

main91611-60820iEL54..MTM¥200199508-199608

sub91611-G0820¥160

4301

17 parts on this diagram · 1 diagram in section
