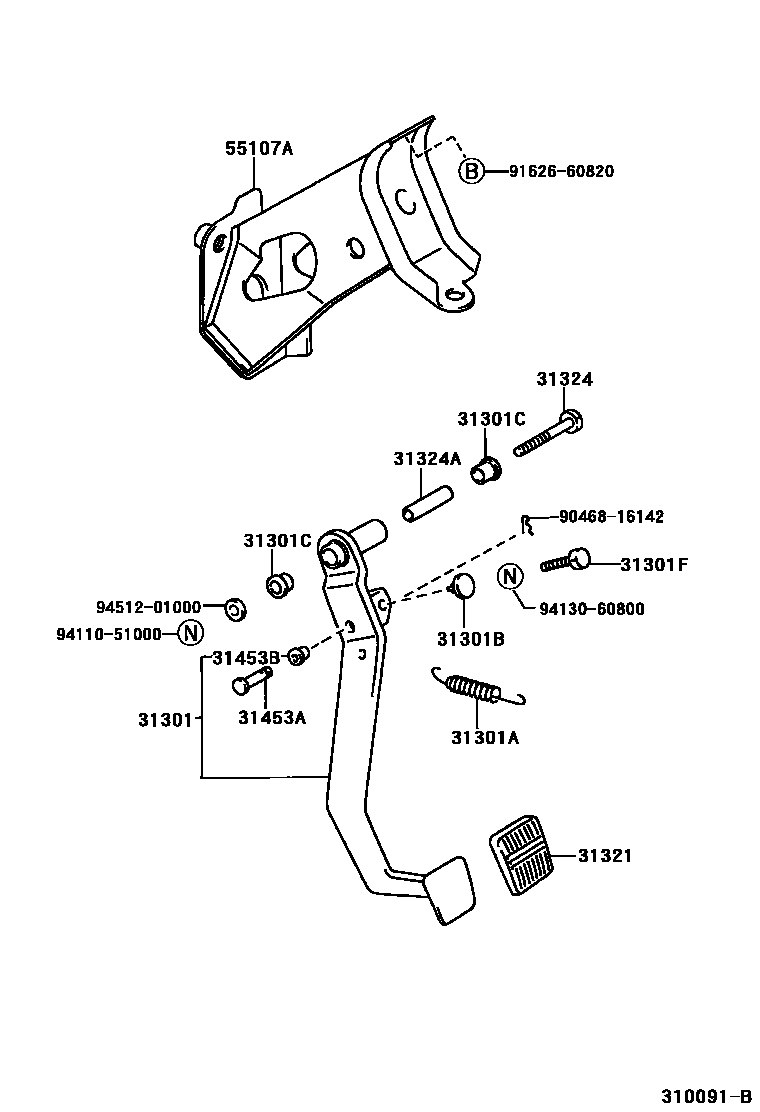

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-16090iEL54..RHD..MTM199508

main31301-16100iEL54..LHD..MTM199508

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14035iEL54..RHD..MTM199508

main90507-14036iEL54..LHD..MTM199508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iEL54..RHD..MTM199508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iEL54..MTM199508

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iEL54..RHD..MTM199508

main90101-10369iEL54..LHD..MTM199508

31321PAD, CLUTCH PEDAL

main31321-14020iEL54..MTM199508

31324SHAFT, CLUTCH PEDAL

main90101-10015iEL54..MTM199508

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEL54..MTM199508

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iEL54..MTM199508

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEL54..MTM199508

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-16070iEL54..RHD..MTM199508

main55107-16080iEL54..LHD..MTM199508

9046816142

main90468-16142

9162660820

main91626-60820

9411051000

main94110-51000

9413060800

main94130-60800

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
