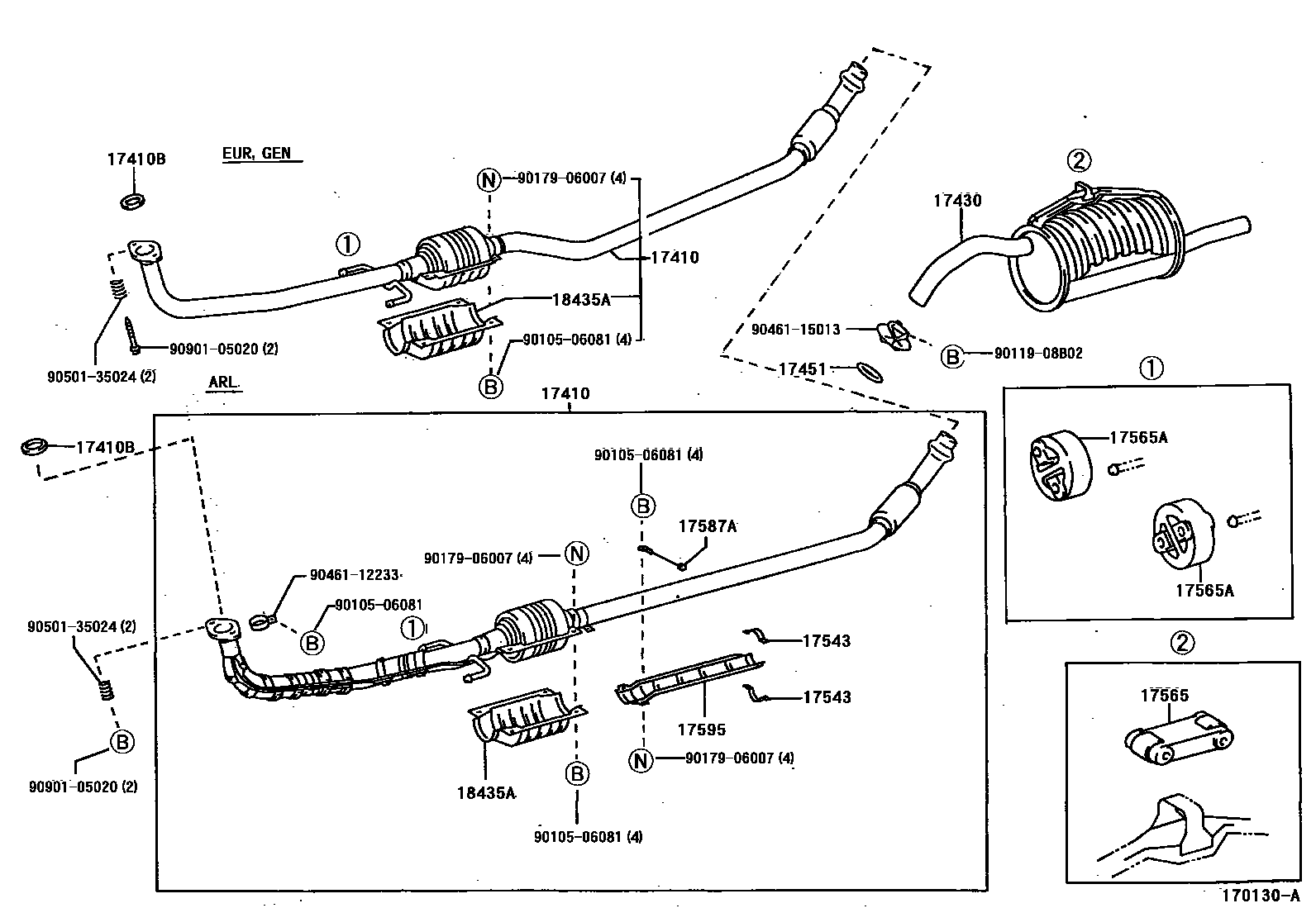

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-11830i5EFE..EL54..ARL199508

main17410-11850i5EFE..EL54..EUR199512

main17410-11880i5EFE..EL54..ATM..GEN199508-199702

main17410-11890i5EFE..EL54..MTM..GEN199508-199702

17410BGASKET, EXHAUST PIPE

main17451-11010i5EFE..EL54199803

main90917-06080i5EFE..EL54199508-199803

17430PIPE ASSY, EXHAUST, TAIL

main17430-11860i5EFE..EL54..EUR199512

main17430-11870i5EFE..EL54..ARL,GEN199508

17451GASKET, EXHAUST PIPE

main90917-06082i5EFE..EL54199508

17543STAY, EXHAUST PIPE PROTECTOR, NO.3

main17543-26010i5EFE..EL54..ARL199508

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-11150i5EFE..EL54..CP199508

main17566-11160i5EFE..EL54..CVT199610

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i5EFE..EL54199508

17587ACLAMP EXHAUST PIPE HANGER

main17587-11010i5EFE..EL54..ARL199508

17595PROTECTOR, EXHAUST PIPE, LOWER NO.3

main17595-11260i5EFE..EL54..ARL199508

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-11020i5EFE..EL54199508-199811

sub18435-11040

main18435-11030i5EFE..EL54199811

9010506081

main90105-06081

9011908B02

main90119-08B02

9017906007

main90179-06007

9046112233

main90461-12233

9046115013

main90461-15013

9050135024

main90501-35024

9090105020

main90901-05020

17 parts on this diagram · 1 diagram in section
