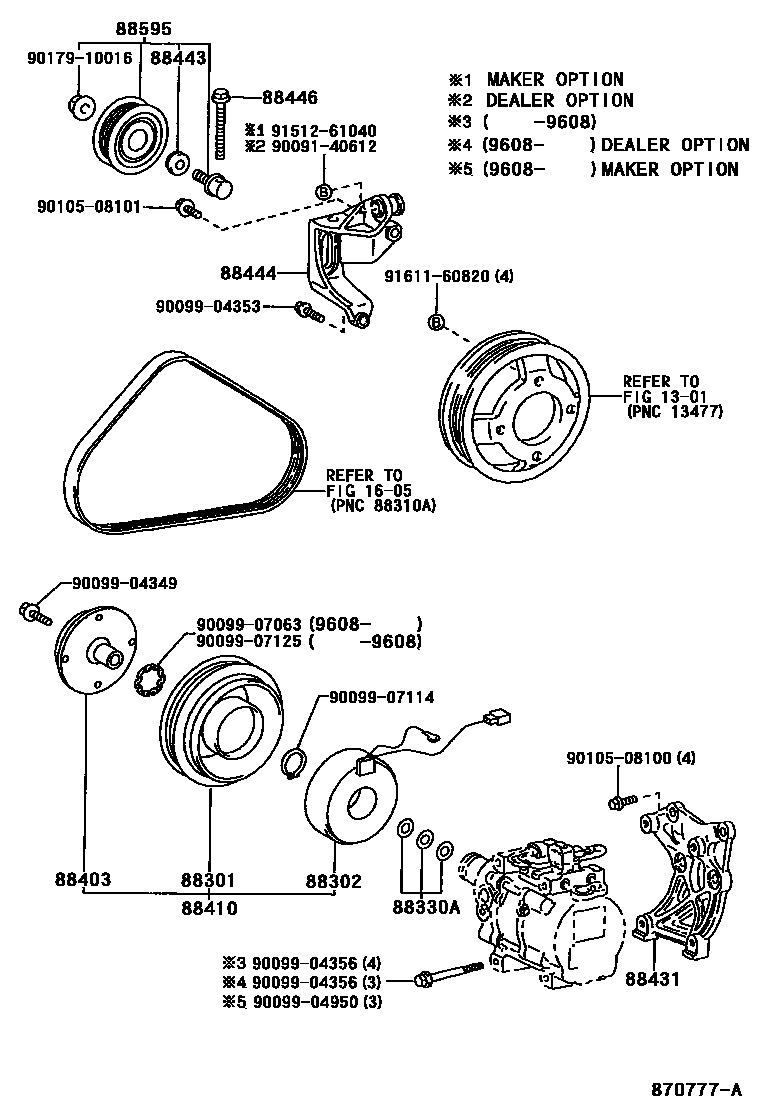

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1301

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16130iEL53..USA199409-199608

PUERTORICO SPEC

main88412-16150iEL53199409-199608

main88412-16160iEL53..USA199608

PUERTORICO SPEC

main88412-16190iEL53199608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iEL53199608

main88411-1A040iEL53199409-199608

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEL53199409

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iEL53199608

main88403-1A010iEL53199409-199608

88410CLUTCH ASSY, MAGNET

main88410-16181iEL53..USA199409-199608

PUERTORICO SPEC

main88410-16270iEL53199409-199608

main88410-16280iEL53..USA199608

PUERTORICO SPEC

main88410-16300iEL53199608

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEL53..USA199409-199608

PUERTORICO SPEC

main88431-16090iEL53199409-199608

main88431-16140iEL53199608

88443COLLAR, IDLE PULLEY

main88443-36010iEL53199409-199712

88444BRACKET, IDLE PULLEY

main88444-16030iEL53199409

88446BOLT, IDLE PULLEY

main88446-12030iEL53199409

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16050iEL53199409

9009140612

main90091-40612

9009904349

main90099-04349

9009904353

main90099-04353

9009904356

main90099-04356

9009904950

main90099-04950

9009907063

main90099-07063

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9017910016

main90179-10016

9151261040

main91512-61040

9161160820

main91611-60820

25 parts on this diagram · 3 diagrams in section
