WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1INSTRUMENT WIRE 0004 1DOOR, ROOF WIRE 0005 1DOOR, ROOF WIRE 0006 1FLOOR, LUGGAGE WIRE 0007 1FLOOR, LUGGAGE WIRE 0008 1CABLE BOND 0009 1CLAMP & BRACKET 0010 1CLAMP & BRACKET

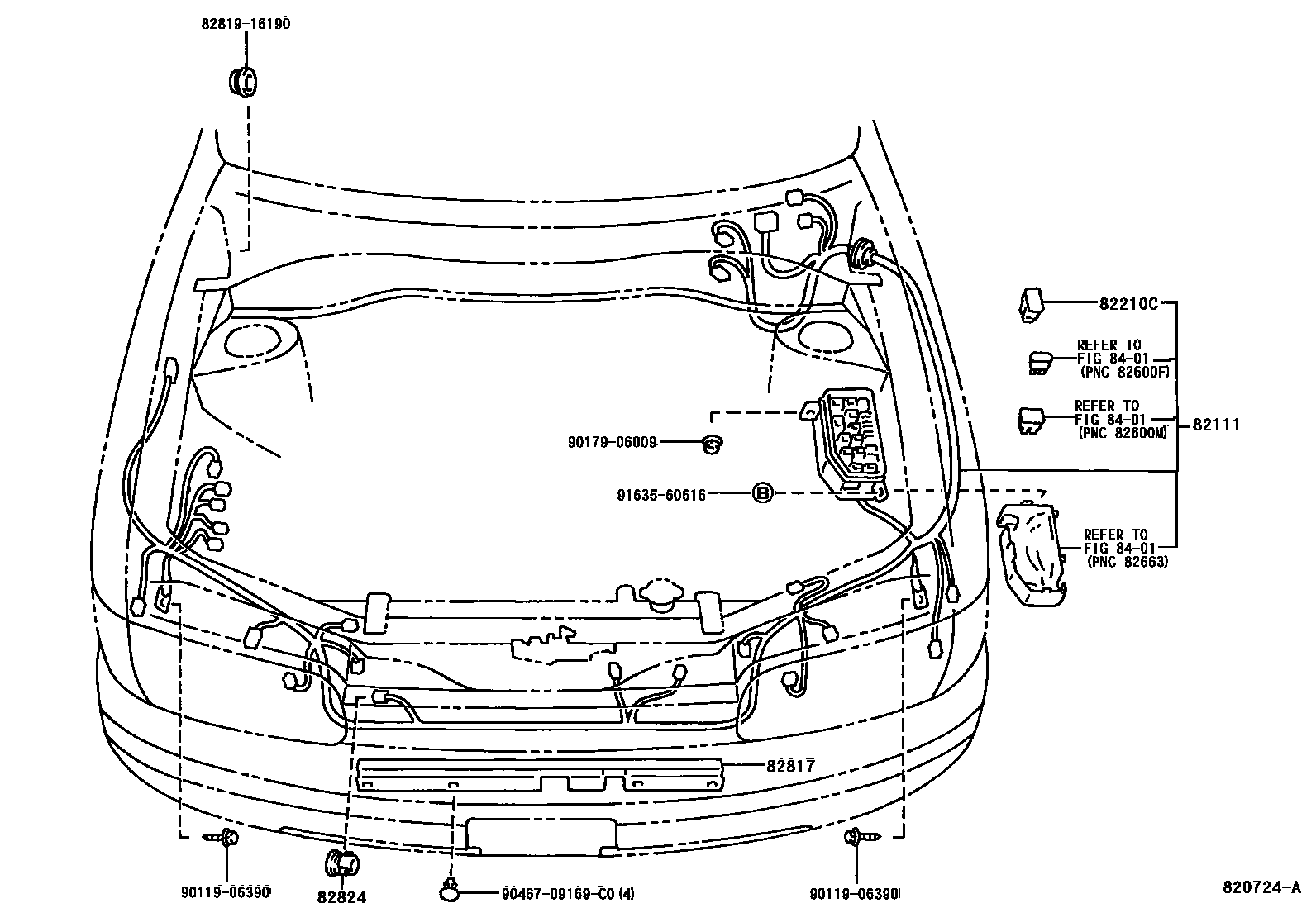

82111WIRE, ENGINE ROOM MAIN

main82111-1G500iEL53..CND¥45,900199409-199608

main82111-1G501iEL53..CND¥40,100199608-199712

main82111-1G502iEL53..CND¥40,100199712

main82111-1G510iEL53..CND¥92,500199409-199508

W(ABS)

main82111-1G511iEL53..CND¥105,000199508-199608

W(ABS)

main82111-1G512iEL53..CND¥46,000199608-199712

W(ABS)

main82111-1G513iEL53..CND¥46,000199712

W(ABS)

main82111-1G550iEL53..USA¥39,900199409-199608

main82111-1G551iEL53..USA¥40,100199608-199712

main82111-1G552iEL53..USA¥40,100199712

main82111-1G600iEL53..USA¥105,000199409-199608

PUERTORICO SPEC

main82111-1G601iEL53..USA¥40,100199608-199712

PUERTORICO SPEC

main82111-1G602iEL53..USA¥40,100199712

PUERTORICO SPEC

main82111-1G610iEL53..USA¥39,900199409-199508

W(ABS)

main82111-1G611iEL53..USA¥92,500199508-199608

W(ABS)

main82111-1G612iEL53..USA¥46,000199608-199712

W(ABS)

main82111-1G613iEL53..USA¥46,000199712

W(ABS)

82210CFUSIBLE LINK

main90982-08190iEL53¥750199409

60A,TERM.:FEMALE,YEL

main90982-08227iEL53¥440199409-199508

50A,TERM.:FEMALE,RED

main90982-08246iEL53¥440199508

100A,TERM.:MALE,BLUE

main90982-08277iEL53¥440199508

50A,TERM.:FEMALE,RED

main90982-08280iEL53..CND¥590199608-199712

30A,TERM.:FEMALE,PNK

main90982-08281iEL53¥590199608

40A,TERM.:FEMALE,GRN

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16480iEL53¥2,570199409-199802

82824CONNECTOR, WIRING HARNESS

main82824-20050iEL53¥940199409

8401

8281916190GROMMET, WIRING HARNESS

main82819-16190¥860

9011906390

main90119-06390¥70

9017906009

main90179-06009¥120

9046709169C0

main90467-09169C0

9163560616

main91635-60616¥120

10 parts on this diagram · 10 diagrams in section
