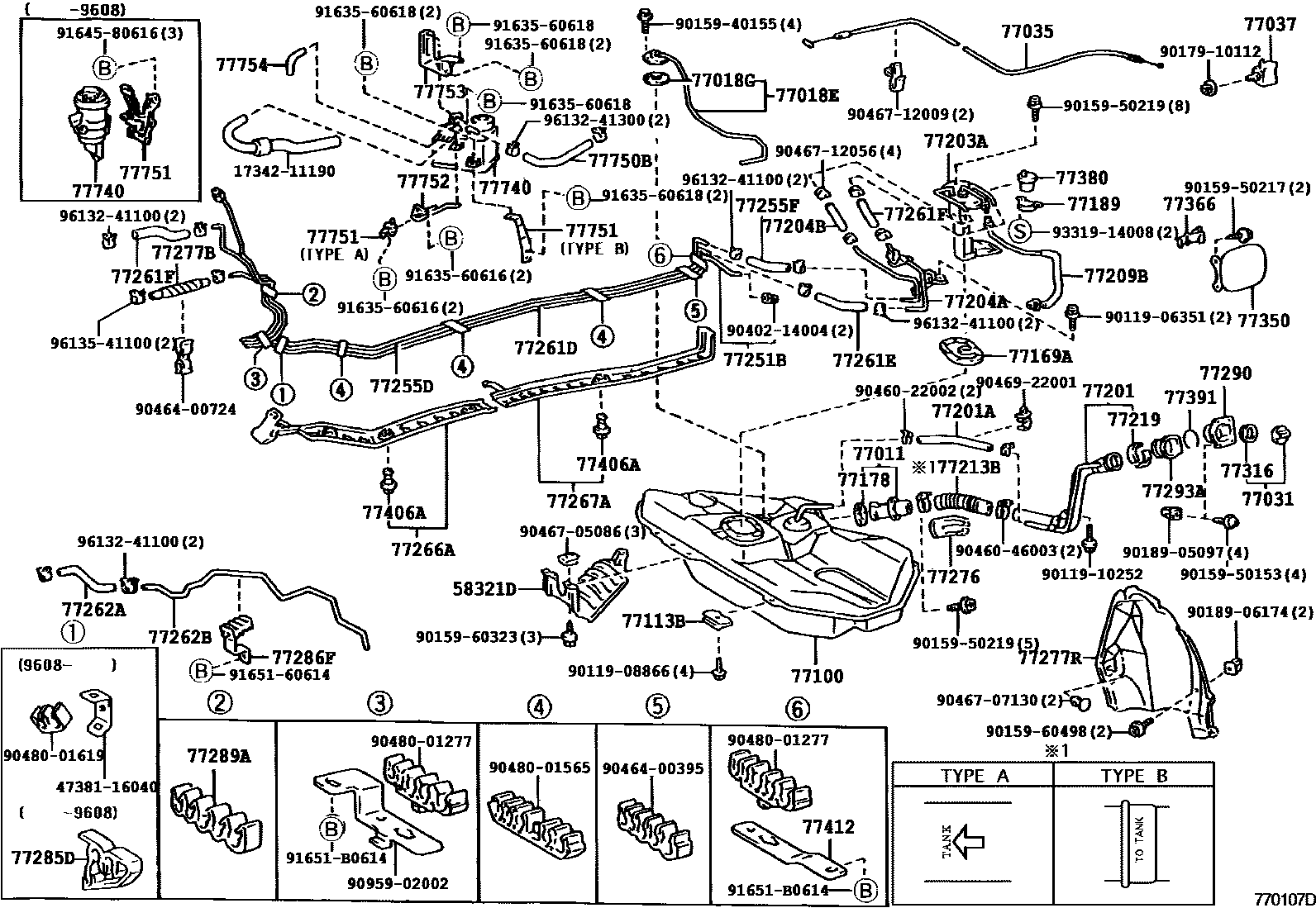

FUEL TANK & TUBE

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL53199409

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL53199409-199608

main77011-16100iEL53199608

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-16060iEL53199608

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-26010iEL53199608

sub77179-26011

77031CAP ASSY, FUEL TANK

main77310-12140iEL53199409-199803

main77310-48020iEL53199803

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16220iEL53..DX199409

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-16040iEL53..DX199409

77100TANK ASSY, FUEL

main77001-10360iEL53199901

main77001-16220iEL53199409-199608

sub77001-16230

main77001-16260iEL53199608-199901

sub77001-10360

77113BPLATE, FUEL TANK SIDE

main77113-10020iEL53199409-199608

77169AGASKET, FUEL SUCTION TUBE SET

main77169-16030iEL53199409-199608

main77169-20050iEL53199608

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL53199409-199608

77189RETAINER, FUEL CHECK VALVE

main77189-18010iEL53199409-199608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16171iEL53199409-199608

sub77201-16270

main77201-16270iEL53199608

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-16070iEL53199608-199901

L=280

main95311-13028iEL53199409-199608

L=280

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-11140iEL53199409-199602

sub23206-11430

sub23239-74010

main23206-11430iEL53199602-199608

main77203-16060iEL53199608-199712

77204ATUBE, FUEL TANK RETURN

main23204-11140iEL53199409-199608

77204BHOSE, FUEL(FOR FUEL RETURN)

main95334-06010iEL53199409-199608

77209BTUBE SUB-ASSY, FUEL PUMP

main23091-11090iEL53199409-199608

main77209-16020iEL53199608

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-16050iEL53199409-199608

L=395

sub77213-16090

main77213-16090iEL53199608

TYPE A:REFER TO ILLUSTRATION

main77213-16120iEL53199608

TYPE B:REFER TO ILLUSTRATION

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iEL53199409

77251BTUBE, FUEL MAIN

main77251-16240iEL53199409

77255DTUBE, FUEL RETURN

main77255-16180iEL53199409-199608

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06020iEL53199409-199608

L=130

sub95337-06020

77261DTUBE, FUEL TANK TO CANISTER

main77261-16150iEL53199409

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEL53199409-199608

L=140

main95337-06014iEL53199608

L=140

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main77249-10070iEL53199409-199608

L=110

main95333-06010iEL53199409-199608

*H,L=80

main95337-06008iEL53199608

L=80

77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)

main77249-16030iEL53199608

77262BTUBE, FUEL TANK TO CANISTER, NO.2

main77262-16040iEL53199608

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL53199409

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL53199409-199608

77276PROTECTOR, FUEL HOSE

main77276-10020iEL53199409

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main23271-11230iEL53199409-199608

*H,L=360

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16120iEL53199409

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL53199409-199608

77286FCLAMP, FUEL TUBE, NO.2

main47371-10040iEL53199608-199611

main77286-16070iEL53199611

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL53199409

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16110iEL53199409

main77290-16120iEL53..DX199409

W(BACK DOOR OPENER)

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16100iEL53199409

main77293-16110iEL53..DX199409

W(BACK DOOR OPENER)

77316GASKET, FUEL TANK CAP

main77316-16010iEL53199409

77350LID ASSY, FUEL FILLER OPENING

main77350-16200iEL53199409

main77350-16210iEL53..DX199409

W(BACK DOOR OPENER)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-16010iEL53199409

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEL53199409-199608

77391RING, FUEL INLET BOX

main77391-14020iEL53199409

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023iEL53199409

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL53199409

77740CANISTER ASSY, CHARCOAL

main77740-16220iEL53199409-199608

main77740-16260iEL53199608-199808

sub77740-16261

main77740-16261iEL53199808

77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)

main23829-11010iEL53199608

L=339

77751BRACKET, CHARCOAL CANISTER BASE

main77751-16140iEL53199409-199608

main77751-16170iEL53199608

TYPE A:REFER TO ILLUSTRATION

main77751-16180iEL53199608

TYPE B:REFER TO ILLUSTRATION

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-16030iEL53199608

77753BRACKET, CHARCOAL CANISTER, NO.3

main77753-16030iEL53199608

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-16070iEL53199608-199808

sub77754-16071

main77754-16071iEL53199808

1734211190HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-11190

4738116040BRACKET, BRAKE TUBE CLAMP NO.1

main47381-16040

9011906351

main90119-06351

9011908866

main90119-08866

9011910252

main90119-10252

9015940155

main90159-40155

9015950153

main90159-50153

9015950217

main90159-50217

9015950219

main90159-50219

9015960323

main90159-60323

9015960498

main90159-60498

9017910112

main90179-10112

9018905097

main90189-05097

9018906174

main90189-06174

9040214004

main90402-14004

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400724

main90464-00724

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046712056

main90467-12056

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9048001619

main90480-01619

9095902002

main90959-02002

9163560616

main91635-60616

9163560618

main91635-60618

9164580616

main91645-80616

9165160614

main91651-60614

91651B0614

main91651-B0614

9331914008

main93319-14008

9613241100

main96132-41100

9613241300

main96132-41300

9613541100

main96135-41100

88 parts on this diagram · 1 diagram in section
