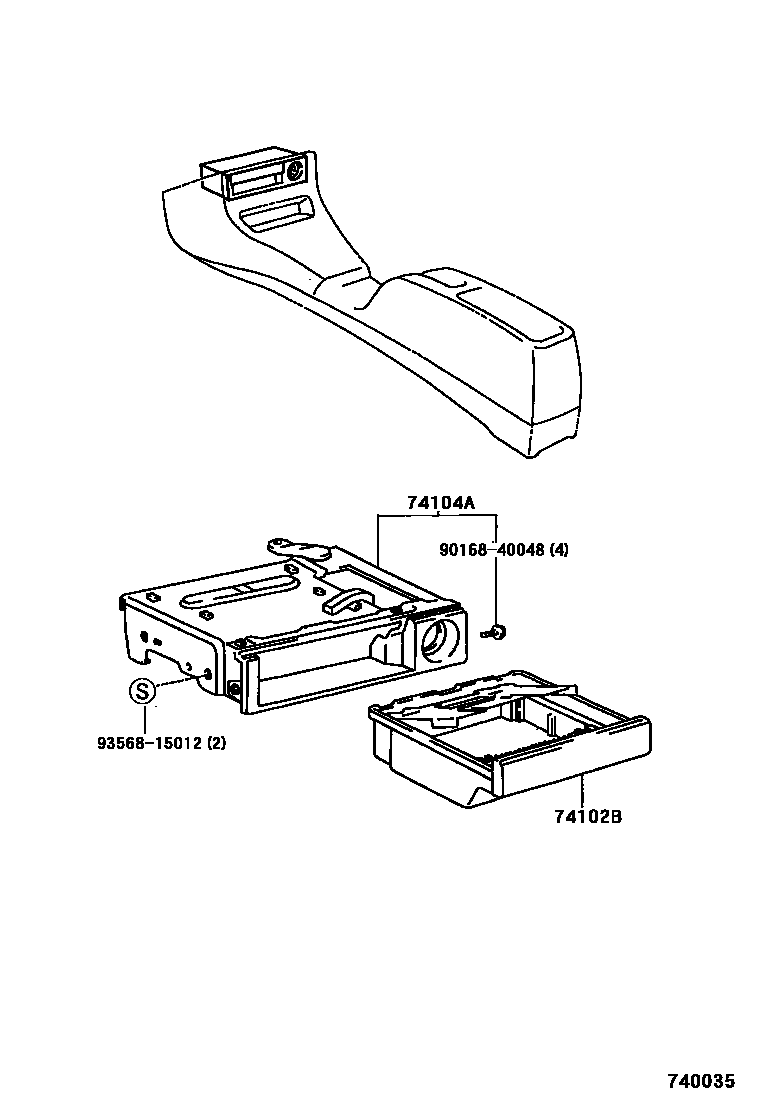

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-16040-C0iEL53199409

BLACK,TRIM1#

sub74102-16040

main74102-16060-E0iEL53199712

OAK,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-16070-C0iEL53199409

BLACK,TRIM1#

sub74104-16070

main74104-16080-E0iEL53199712

OAK,TRIM4#

9016840048

main90168-40048

9356815012

main93568-15012

4 parts on this diagram · 1 diagram in section
