E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

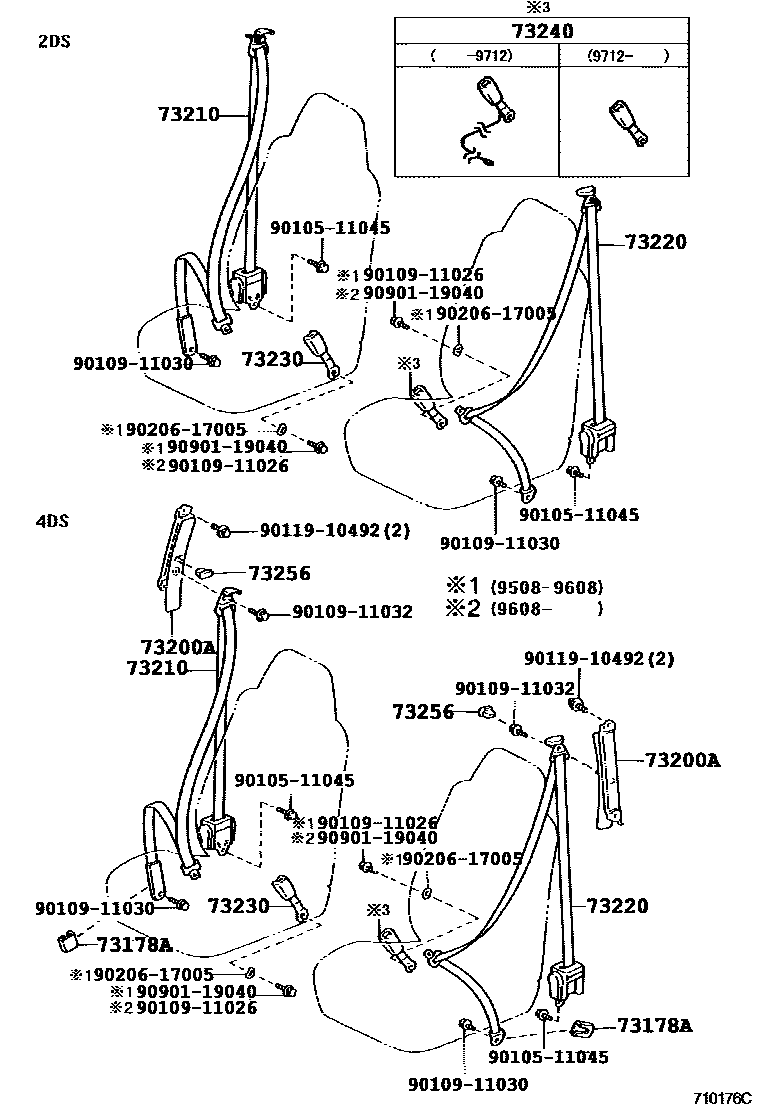

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-16020-B0×2i199608-199712
SHADOW GRAY,TRIM1#
main73178-16020-E0i199608-199712
OAK,TRIM4#
main73233-33010-B3×2i199712-199907
SHADOW GRAY,TRIM1#
main73233-33010-E2×2i199712-199907
SANDAL WOOD,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-16020-B0×2i199409
LT.BLUISH GRAY,TRIM1#
main73200-16020-E0×2i199409
MD.OAK,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-16560-B0i199409-199601
BLUISH GRAY,TRIM1#
main73210-16560-E0i199409-199601
OAK,TRIM4#
main73210-16600-B0i199409-199608
BLUISH GRAY,TRIM1#
main73210-16600-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
main73210-16700-B0i199601-199608
BLUISH GRAY,TRIM1#
main73210-16700-E0i199601-199608
OAK,TRIM4#
main73210-16790-B0i199608-199611
BLUISH GRAY,TRIM1#
main73210-16790-E0i199608-199611
OAK,TRIM4#
main73210-16791-B0i199611-199712
BLUISH GRAY,TRIM1#
main73210-16791-E0i199611-199712
OAK,TRIM4#
main73210-16830-B0i199608-199712
BLUISH GRAY,TRIM1#
main73210-16830-E0i199608-199712
OAK,TRIM4#
main73210-16870-B0i199712
W(*80),BLUISH GRAY,TRIM1#
main73210-16870-E0i199712-199804
W(*80),OAK,TRIM4#
main73210-16870-E1i199804
W(*80),OAK,TRIM4#
main73210-1G020-B1i199712
W(*80),BLUISH GRAY,TRIM1#
main73210-1G020-E1i199712-199804
W(*80),OAK,TRIM4#
main73210-1G020-E2i199804
W(*80),OAK,TRIM4#
main73210-1G080-B0i199712
BLUISH GRAY,TRIM1#
main73210-1G080-E0i199712-199804
OAK,TRIM4#
main73210-1G080-E1i199804
OAK,TRIM4#
main73210-1G090-B0i199712
BLUISH GRAY,TRIM1#
main73210-1G090-E0i199712-199804
OAK,TRIM4#
main73210-1G090-E1i199804
OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-1G010-B0i199712-199907
W(*80),BLUISH GRAY,TRIM1#
main73210-1G010-E0i199712-199804
W(*80),OAK,TRIM4#
main73210-1G010-E1i199804-199907
W(*80),OAK,TRIM4#
main73210-1G020-B1i199712-199907
BLUISH GRAY,TRIM1#
main73210-1G020-E1i199712-199804
OAK,TRIM4#
main73210-1G020-E2i199804-199907
OAK,TRIM4#
main73220-16500-B0i199409-199601
BLUISH GRAY,TRIM1#
main73220-16500-E0i199409-199601
OAK,TRIM4#
main73220-16540-B0i199409-199601
BLUISH GRAY,TRIM1#
main73220-16540-E0i199409-199601
OAK,TRIM4#
main73220-16620-B0i199601-199608
BLUISH GRAY,TRIM1#
main73220-16620-E0i199601-199608
OAK,TRIM4#
main73220-16640-B0i199601-199608
BLUISH GRAY,TRIM1#
main73220-16640-E0i199601-199608
OAK,TRIM4#
main73220-16660-B0i199712-199907
BLUISH GRAY,TRIM1#
main73220-16660-E0i199712-199804
OAK,TRIM4#
main73220-16660-E1i199804-199907
OAK,TRIM4#
main73220-16700-B0i199608-199611
BLUISH GRAY,TRIM1#
main73220-16700-E0i199608-199611
OAK,TRIM4#
main73220-16701-B0i199611-199712
BLUISH GRAY,TRIM1#
main73220-16701-E0i199611-199712
OAK,TRIM4#
main73220-16740-B0i199608-199712
BLUISH GRAY,TRIM1#
main73220-16740-E0i199608-199712
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16370-B1i199409-199608
BLUISH GRAY,TRIM1#
main73230-16370-E1i199512-199602
BLACK HAWK,OAK,TRIM4#
main73240-16220-B0i199608
SHADOW GRAY,TRIM1#
sub73230-10400
main73240-16220-E1i199608-199804
OAK,TRIM4#
sub73230-10400
main73240-16220-E2i199804
SANDAL WOOD,TRIM4#
sub73230-10400
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-16210-B1i199409-199608
BLUISH GRAY,TRIM1#
main73240-16210-E1i199409-199608
OAK,TRIM4#
main73240-16220-B0i199608
SHADOW GRAY,TRIM1#
sub73230-10400
main73240-16220-E1i199608-199804
OAK,TRIM4#
sub73230-10400
main73240-16220-E2i199804
SANDAL WOOD,TRIM4#
sub73230-10400
73256KNOB, SHOULDER BELT ANCHOR ADJUST
main73256-16010-B0×2i199409
LT.BLUISH GRAY,TRIM1#
main73256-16010-E0×2i199409
MD.OAK,TRIM4#
9010511045
main90105-11045
9010911026
main90109-11026
9010911030
main90109-11030
9010911032
main90109-11032
9011910492
main90119-10492
9020617005
main90206-17005
9090119040
main90901-19040

14 parts on this diagram · 2 diagrams in section
