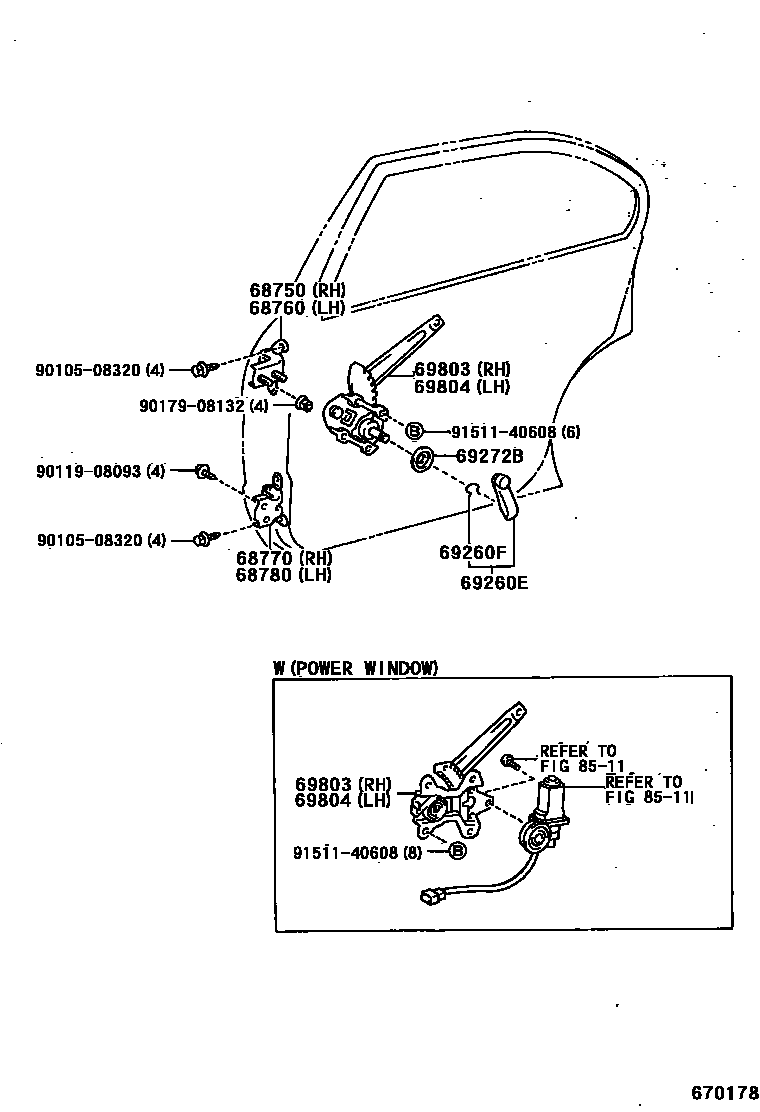

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20100iEL53..4DS199409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20100iEL53..4DS199409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-16040iEL53..4DS199409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-16040iEL53..4DS199409

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-20090-B0iEL53..4DS199409-199608

BLUEISH GRAY,TRIM1#

sub69260-20090

main69260-20090-B1iEL53..4DS199608

SHADOW GRAY,TRIM1#

sub69260-20090

main69260-20090-E2iEL53..4DS199409-199805

OAK,TRIM4#

sub69260-20090

main69260-20090-E3iEL53..4DS199805

SANDAL WOOD,TRIM4#

sub69260-20090

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iEL53..4DS199409

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020iEL53..4DS199409

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-16030iEL53..4DS199409

W(POWER WINDOW)

main69803-16030iEL53..2DS..CND199608

main69830-16080iEL53..4DS199409-199608

main69830-16110iEL53..4DS199608

sub69830-10070

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-16030iEL53..2DS..CND199608

main69804-16030iEL53..4DS199409

W(POWER WINDOW)

main69840-16080iEL53..4DS199409-199608

main69840-16110iEL53..4DS199608

8511

9010508320

main90105-08320

9011908093

main90119-08093

9017908132

main90179-08132

9151140608

main91511-40608

14 parts on this diagram · 1 diagram in section
