REAR DOOR PANEL & GLASS

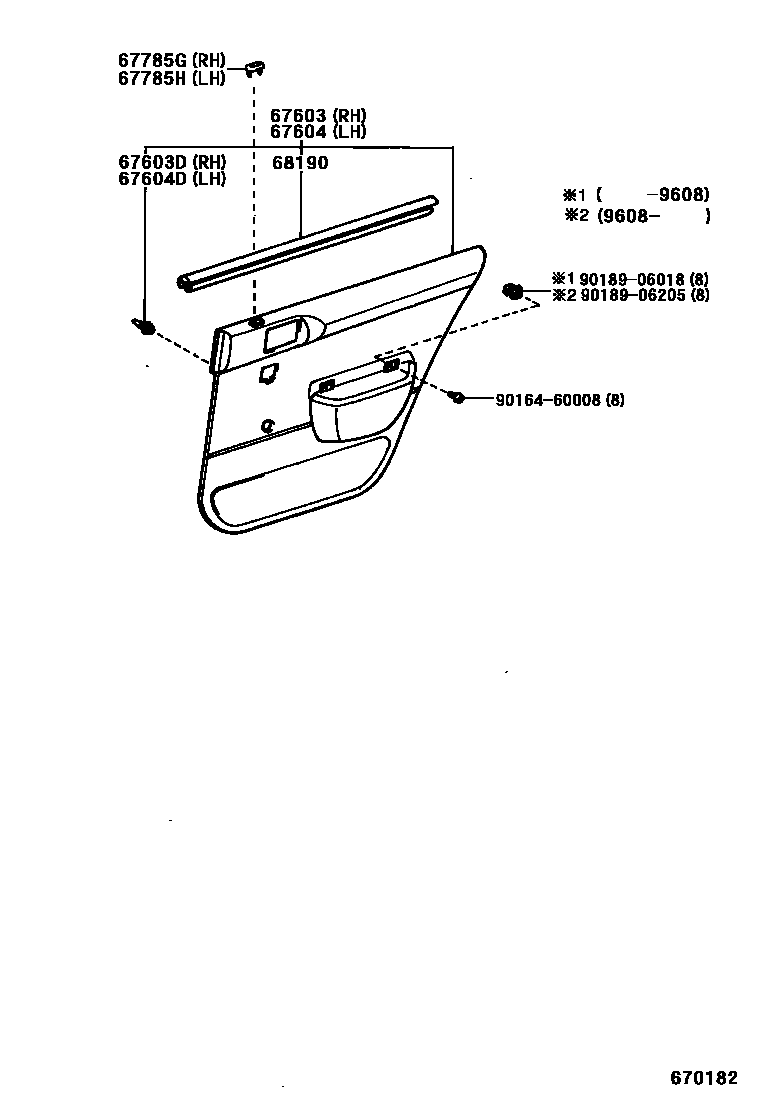

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-16530-B1i199409-199608
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67630-16530-E1i199409-199608
W(POWER WINDOW),OAK,TRIM4#
main67630-16580-B0i199409-199608
BLUISH GRAY,TRIM1#
main67630-16580-E0i199409-199608
OAK,TRIM4#
main67630-16660-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67630-16661¥23,000
main67630-16660-E0i199608-199712
OAK,TRIM4#
sub67630-16661¥23,000
main67630-16661-B1i199712
SHADOW GRAY,TRIM1#
main67630-16661-E1i199712
OAK,TRIM4#
main67630-16670-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67630-16671¥26,800
main67630-16670-E0i199608-199712
W(POWER WINDOW),OAK,TRIM4#
sub67630-16671¥26,800
main67630-16671-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-16671-E1i199712
W(POWER WINDOW),OAK,TRIM4#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-12050i¥160199608
RED
main67771-16120i¥160199409-199608
main67771-16120i¥160199608
LIGHT GRAY
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-16540-B1i199409-199608
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67640-16540-E1i199409-199608
W(POWER WINDOW),OAK,TRIM4#
main67640-16590-B0i199409-199608
BLUISH GRAY,TRIM1#
main67640-16590-E0i199409-199608
OAK,TRIM4#
main67640-16670-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67640-16671¥23,000
main67640-16670-E0i199608-199712
OAK,TRIM4#
sub67640-16671¥23,000
main67640-16671-B1i199712
SHADOW GRAY,TRIM1#
main67640-16671-E1i199712
OAK,TRIM4#
main67640-16680-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67640-16681¥26,800
main67640-16680-E0i199608-199712
W(POWER WINDOW),OAK,TRIM4#
sub67640-16681¥26,800
main67640-16681-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67640-16681-E1i199712
W(POWER WINDOW),OAK,TRIM4#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-12050i¥160199608
RED
main67771-16120i¥160199608
LIGHT GRAY
main67771-16120i¥160199409-199608
67785GHOLDER, REAR DOOR LOCK CONTROL KNOB, RH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
sub69751-12050¥370
main69751-12050-E0i199608
OAK,TRIM4#
sub69751-12050¥370
67785HHOLDER, REAR DOOR LOCK CONTROL KNOB, LH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
sub69751-12050¥370
main69751-12050-E0i199608
OAK,TRIM4#
sub69751-12050¥370
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-16070i¥3,090199409-199608
RH
main68173-16080i¥3,920199608-199712
RH
main68173-16090i¥5,300199712
RH
main68174-16070i¥3,090199409-199608
LH
main68174-16080i¥3,920199608-199712
LH
main68174-16090i¥5,300199712
LH
9016460008
main90164-60008¥160
9018906018
main90189-06018¥80
9018906205
main90189-06205¥120

10 parts on this diagram · 2 diagrams in section
