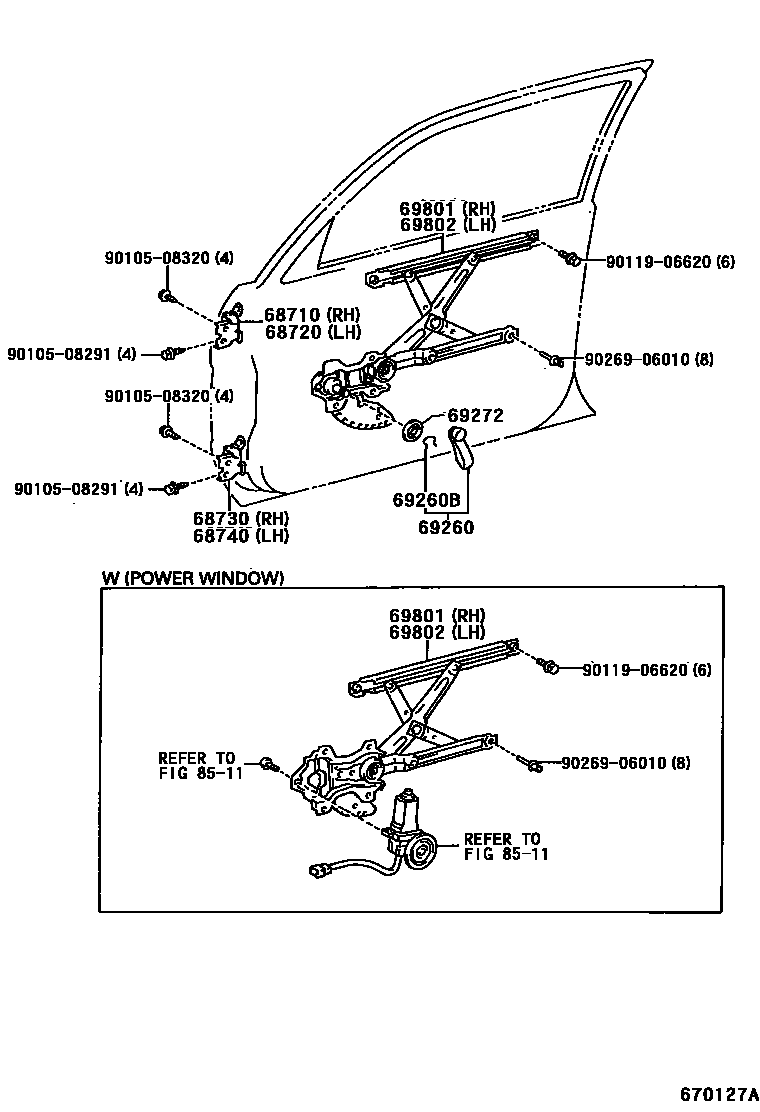

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16060iEL53199409

sub68710-60050

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16060iEL53199409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-16060iEL53199409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-16060iEL53199409

sub68710-60050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B0iEL53199409-199608

BLUEISH GRAY,TRIM1#

sub69260-20090

main69260-20090-B1iEL53199608

SHADOW GRAY,TRIM1#

sub69260-20090

main69260-20090-E2iEL53199409-199805

OAK,TRIM4#

sub69260-20090

main69260-20090-E3iEL53199805

SANDAL WOOD,TRIM4#

sub69260-20090

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iEL53199409-199608

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iEL53199409-199608

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16050iEL53..4DS199409-199608

W(POWER WINDOW)

main69810-16150iEL53199409-199608

main69810-16240iEL53199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16050iEL53..4DS199409-199608

W(POWER WINDOW)

main69820-16150iEL53199409-199608

main69820-16240iEL53199608

8511

9010508291

main90105-08291

9010508320

main90105-08320

9011906620

main90119-06620

9026906010

main90269-06010

14 parts on this diagram · 1 diagram in section
