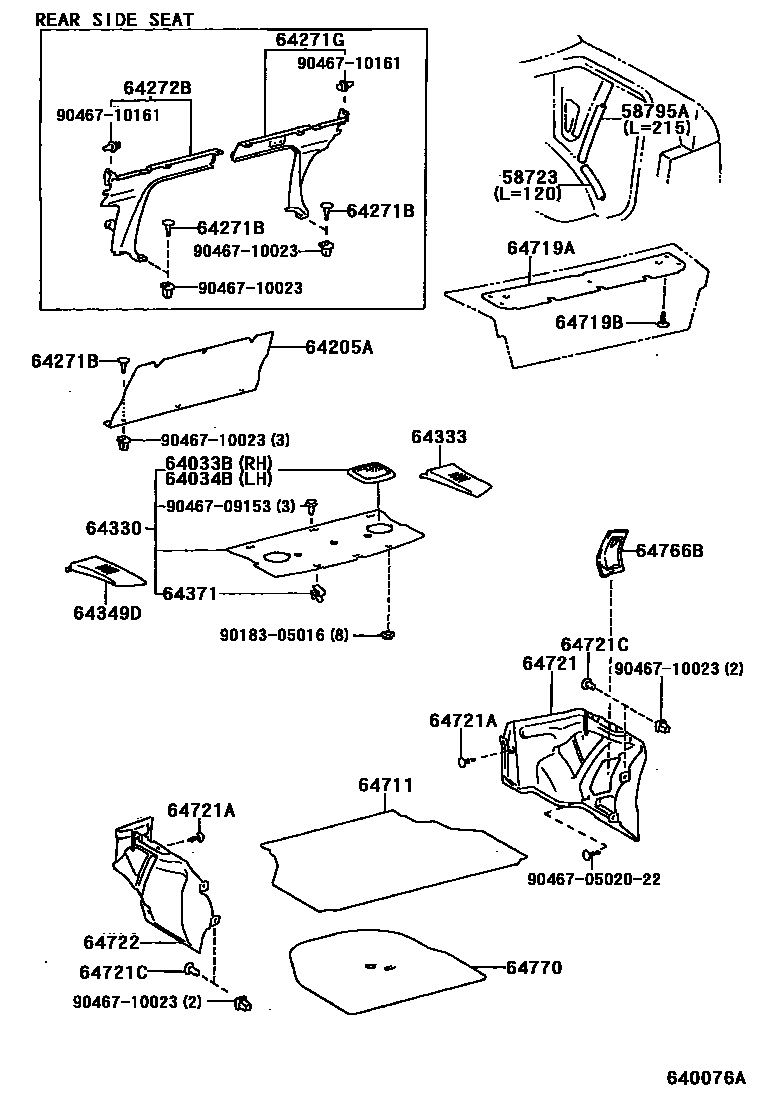

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
sub58795-16020
58795ATRIM, JACK HOUSE OPENING
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64205ACOVER SUB-ASSY, ROOM PARTITION
BLACK,TRIM1#
BLACK,TRIM1#,4#
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
W(REAR SPEAKER),BLUISH GRAY,TRIM1#
sub64330-16860
SHADOW GRAY,TRIM1#
OAK,TRIM4#
W(REAR SPOILER),SHADOW GRAY,TRIM1#
W(REAR SPOILER),OAK,TRIM4#
64333COVER, PACKAGE TRAY TRIM, SIDE
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
64371RETAINER, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
W(REAR SPLIT SEAT),BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
W(REAR SPLIT SEAT),BLACK,TRIM1#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM1#,4#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
64766BCOVER, QUARTER TRIM JACK
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
9018305016
main90183-05016
904670502022
main90467-0502022
9046709153
main90467-09153
9046710023
main90467-10023
9046710161
main90467-10161
26 parts on this diagram · 1 diagram in section
