E
EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

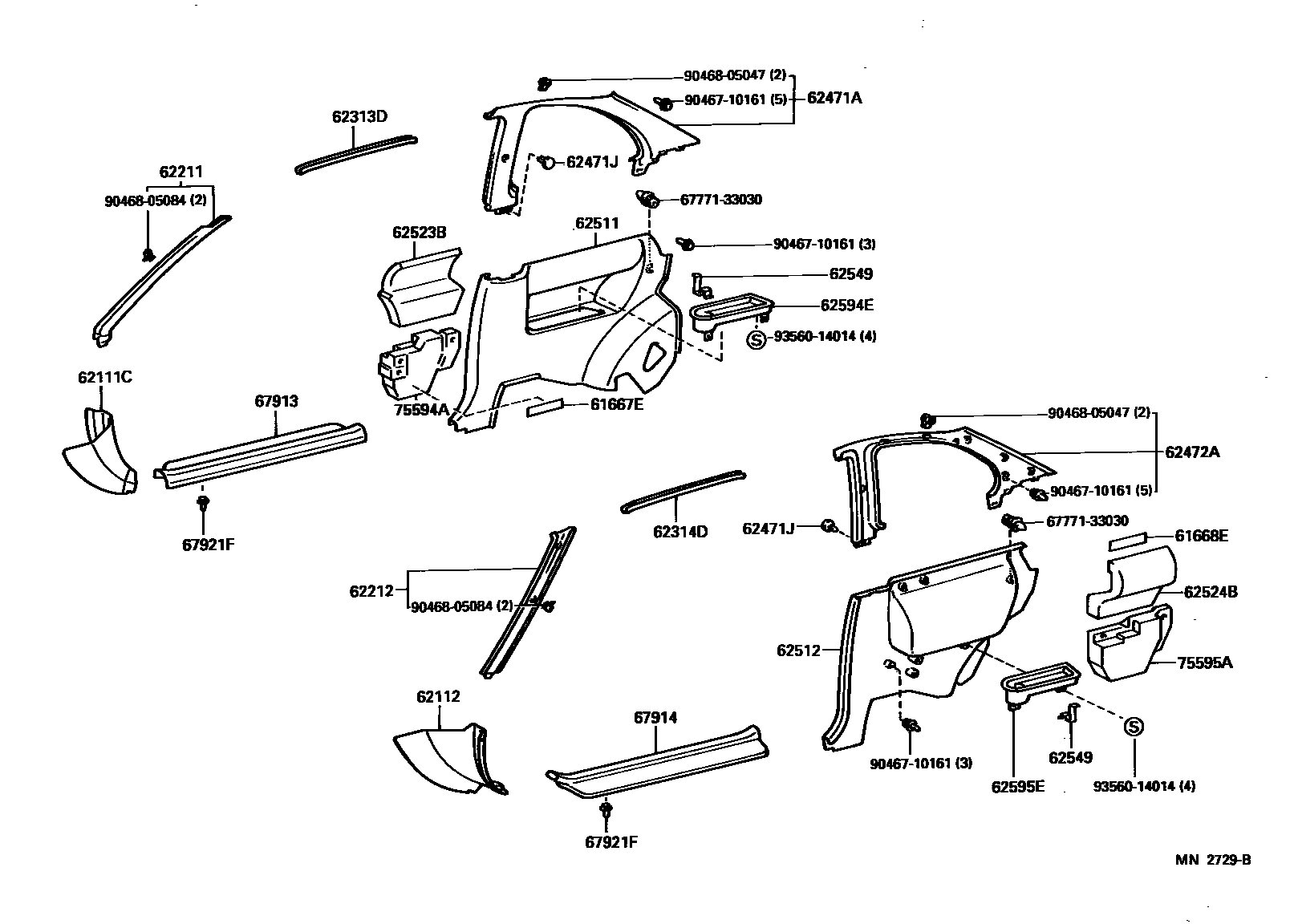

Parts diagram
61667ESEAL, QUARTER PANEL, NO.1
main61667-16040i¥160199409
61668ESEAL, QUARTER PANEL, NO.2
main61668-16040i¥400199409
62111CBOARD, COWL SIDE TRIM, RH
main62111-16110-B0i199409-199510
BLUISH GRAY,TRIM1#
sub62111-16120¥2,460
main62111-16110-E0i199409-199510
OAK,TRIM4#
sub62111-16120¥2,460
main62111-16120-B0i199608
SHADOW GRAY,TRIM1#
sub62111-16120¥2,460
main62111-16120-B1i199510-199608
BLUISH GRAY,TRIM1#
sub62111-16120¥2,460
main62111-16120-E0i199510
OAK,TRIM4#
sub62111-16120¥2,460
main62111-16120-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub62111-16120¥2,460
62112BOARD, COWL SIDE TRIM, LH
main62112-16110-B0i199409-199510
BLUISH GRAY,TRIM1#
sub62112-16120¥2,490
main62112-16110-E0i199409-199510
OAK,TRIM4#
sub62112-16120¥2,490
main62112-16120-B0i199608-199712
SHADOW GRAY,TRIM1#
sub62112-16100¥2,230
main62112-16120-B1i199510-199608
BLUISH GRAY,TRIM1#
sub62112-16100¥2,230
main62112-16120-E0i199510-199712
OAK,TRIM4#
sub62112-16100¥2,230
main62112-16120-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub62112-16100¥2,230
main62112-16121-B0i199712
SHADOW GRAY,TRIM1#
sub62112-16101¥2,060
main62112-16121-E0i199712
OAK,TRIM4#
sub62112-16101¥2,060
62211GARNISH, FRONT PILLAR, RH
main62210-16010-B1i199409-199712
LT.BLUISH GRAY,TRIM1#
main62210-16010-E0i199409-199712
MD.OAK,TRIM4#
main62210-16010-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
main62210-16050-B0i199712
LT.BLUISH GRAY,TRIM1#
main62210-16050-E0i199712
MD.OAK,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62220-16010-B1i199409-199712
LT.BLUISH GRAY,TRIM1#
main62220-16010-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
main62220-16010-E0i199409-199712
MD.OAK,TRIM4#
main62220-16050-B0i199712
LT.BLUISH GRAY,TRIM1#
main62220-16050-E0i199712
MD.OAK,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-16100-B1i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62313-16130¥1,340
main62313-16100-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
sub62313-16130¥1,340
main62313-16100-E0i199409-199712
MD.OAK,TRIM4#
sub62313-16130¥1,340
main62313-16110-B0i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62313-16140¥920
main62313-16110-E0i199409-199712
MD.OAK,TRIM4#
sub62313-16140¥920
main62313-16130-B0i199712
LT.BLUISH GRAY,TRIM1#
main62313-16130-E0i199712
MD.OAK,TRIM4#
main62313-16140-B0i199712
LT.BLUISH GRAY,TRIM1#
sub62313-16130¥1,340
main62313-16140-E0i199712
MD.OAK,TRIM4#
sub62313-16130¥1,340
62314DTRIM, FRONT DOOR OPENING, LH
main62313-16100-B1i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62313-16130¥1,340
main62313-16100-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
sub62313-16130¥1,340
main62313-16100-E0i199409-199712
MD.OAK,TRIM4#
sub62313-16130¥1,340
main62313-16110-B0i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62313-16140¥920
main62313-16110-E0i199409-199712
MD.OAK,TRIM4#
sub62313-16140¥920
main62313-16130-B0i199712
LT.BLUISH GRAY,TRIM1#
main62313-16130-E0i199712
MD.OAK,TRIM4#
main62313-16140-B0i199712
LT.BLUISH GRAY,TRIM1#
sub62313-16130¥1,340
main62313-16140-E0i199712
MD.OAK,TRIM4#
sub62313-16130¥1,340
62471AGARNISH, ROOF SIDE, INNER RH
main62470-16050-B0i199409
LT.BLUISH GRAY,TRIM1#
main62470-16050-E0i199409
MD.OAK,TRIM4#
main62470-16060-B0i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62471-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
main62470-16060-E0i199409-199712
MD.OAK,TRIM4#
sub62471-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
main62470-16060-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
sub62471-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
main62471-16290-B0i199712
LT.BLUISH GRAY,TRIM1#
main62471-16290-E0i199712
MD.OAK,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-06058i¥130199409
62472AGARNISH, ROOF SIDE, INNER LH
main62472-16290-B0i199712
LT.BLUISH GRAY,TRIM1#
main62472-16290-E0i199712
MD.OAK,TRIM4#
main62480-16050-B0i199409
LT.BLUISH GRAY,TRIM1#
main62480-16050-E0i199409
MD.OAK,TRIM4#
main62480-16060-B0i199409-199712
LT.BLUISH GRAY,TRIM1#
sub62472-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
main62480-16060-E0i199409-199712
MD.OAK,TRIM4#
sub62472-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
main62480-16060-E0i199512-199602
BLACK HAWK,MD.OAK,TRIM4#
sub62472-16290¥9,200
sub90467-10161¥90
sub90468-05047¥90
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-16230-B0i199409-199608
BLUISH GRAY,TRIM1#
main62511-16230-B1i199608
SHADOW GRAY,TRIM1#
main62511-16230-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
main62511-16230-E0i199409
OAK,TRIM4#
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-16210-B0i199409-199608
BLUISH GRAY,TRIM1#
main62512-16210-B1i199608
SHADOW GRAY,TRIM1#
main62512-16210-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
main62512-16210-E0i199409
OAK,TRIM4#
62523BPAD, QUARTER TRIM CORNER, RH
main62523-16010i¥5,500199409
62524BPAD, QUARTER TRIM CORNER, LH
main62524-16010i¥5,500199409
62549REINFORCEMENT, QUARTER TRIM, NO.2
main62549-16040i¥140199409
62594EPOCKET, QUARTER TRIM, RH
main62594-16040-B0i199409-199608
BLUISH GRAY,TRIM1#
sub62594-16040¥3,010
main62594-16040-B1i199608
SHADOW GRAY,TRIM1#
sub62594-16040¥3,010
main62594-16040-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub62594-16040¥3,010
main62594-16040-E0i199409
OAK,TRIM4#
sub62594-16040¥3,010
62595EPOCKET, QUARTER TRIM, LH
main62595-16020-B0i199409-199608
BLUISH GRAY,TRIM1#
sub62595-16020¥3,010
main62595-16020-B1i199608
SHADOW GRAY,TRIM1#
sub62595-16020¥3,010
main62595-16020-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub62595-16020¥3,010
main62595-16020-E0i199409
OAK,TRIM4#
sub62595-16020¥3,010
67913PLATE, FRONT DOOR SCUFF, RH
main67913-16090-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67913-16090¥3,680
main67913-16090-B1i199608
SHADOW GRAY,TRIM1#
sub67913-16090¥3,680
main67913-16090-E0i199409
OAK,TRIM4#
sub67913-16090¥3,680
main67913-16100-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67913-16100¥4,330
main67913-16100-B1i199608
SHADOW GRAY,TRIM1#
sub67913-16100¥4,330
main67913-16100-E0i199409
OAK,TRIM4#
sub67913-16100¥4,330
main67913-16100-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub67913-16100¥4,330
67914PLATE, FRONT DOOR SCUFF, LH
main67914-16070-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67914-16070¥3,680
main67914-16070-B1i199608-199712
SHADOW GRAY,TRIM1#
sub67914-16070¥3,680
main67914-16070-E0i199409-199712
OAK,TRIM4#
sub67914-16070¥3,680
main67914-16071-B1i199712-199907
SHADOW GRAY,TRIM1#
sub67914-16071¥3,670
main67914-16071-E0i199712-199907
OAK,TRIM4#
sub67914-16071¥3,670
main67914-16080-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67914-16080¥4,330
main67914-16080-B1i199608-199712
SHADOW GRAY,TRIM1#
sub67914-16080¥4,330
main67914-16080-E0i199409-199712
OAK,TRIM4#
sub67914-16080¥4,330
main67914-16080-E0i199512-199602
BLACK HAWK,OAK,TRIM4#
sub67914-16080¥4,330
main67914-16081-B1i199712-199907
SHADOW GRAY,TRIM1#
main67914-16081-E0i199712-199907
OAK,TRIM4#
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-16020i¥180199409
75594APAD, QUARTER GARNISH, RH
main75594-16010i¥2,690199409
75595APAD, QUARTER GARNISH, LH
main75595-16010i¥2,690199409
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030¥140
9046710161
main90467-10161¥90
9046805047
main90468-05047¥90
9046805084
main90468-05084¥110
9356014014
main93560-14014¥60

28 parts on this diagram · 2 diagrams in section
