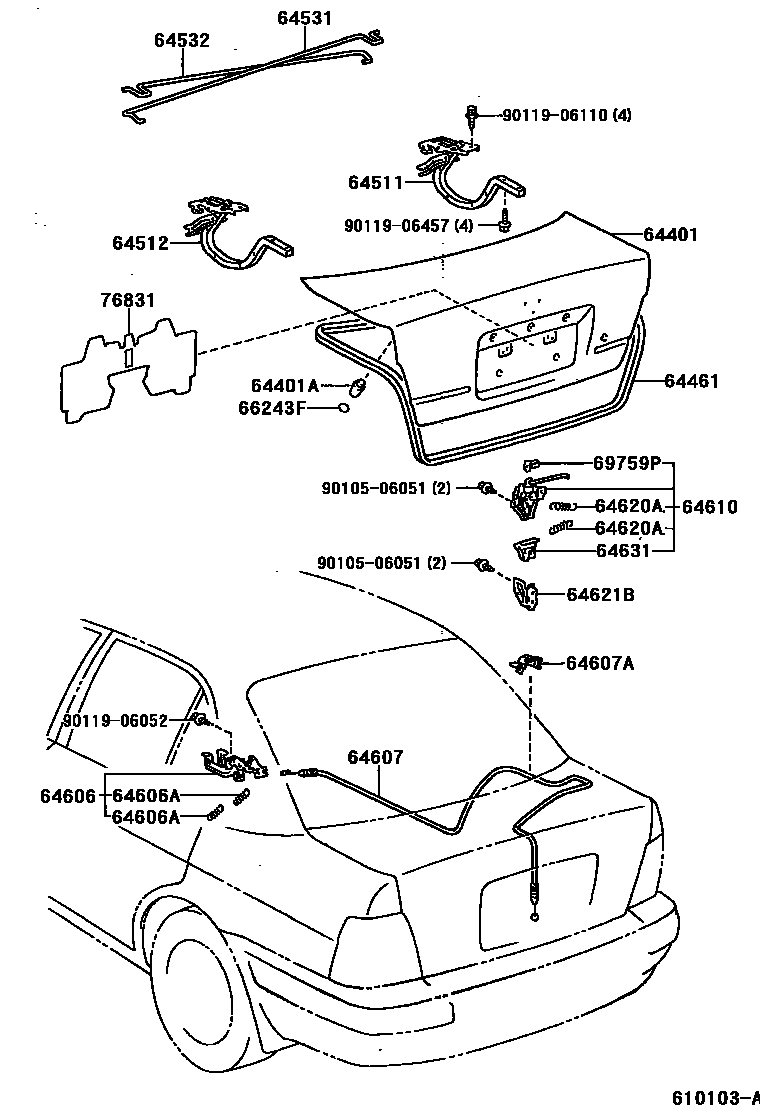

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-16210iEL53199409

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09077iEL53199409-199411

sub90541-09001

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-16150iEL53199409

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64510-16030iEL53199409

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64510-16030iEL53199409

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-16180iEL53199409

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-16180iEL53199409

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-16060iEL53..DX199409

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iEL53..DX199409

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-16350iEL53..DX199409

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01369iEL53..DX199409-199608

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-16090iEL53199409

sub64610-16100

main64610-16100iEL53..DX199409

W(BACK DOOR OPENER)

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iEL53199409-199512

YELLOW

main90506-05002iEL53..DX199409

WD=0.55,CW=17.25

main90905-06021iEL53199512

WD=0.55,CW=17.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-16020iEL53199409

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-16020iEL53199409

66243FPROTECTOR, REAR BODY, NO.1

main66243-20010iEL53199409-199411

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iEL53199409

main69759-24060iEL53..DX199409

W(BACK DOOR OPENER)

76831COVER, BACK DOOR FINISH PANEL

main76831-16010iEL53199409-199411

9010506051

main90105-06051

9011906052

main90119-06052

9011906110

main90119-06110

9011906457

main90119-06457

22 parts on this diagram · 1 diagram in section
