QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-16450iEL53..2DS199409-199608

*TEM,T=3.5,CLEAR

main62711-16460iEL53..2DS..DX..USA199409-199508

*TT,T=3.5,BLUE

main62711-16500iEL53..2DS..DX..USA199508-199608

*TT,T=3.5,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-16450iEL53..2DS199409-199608

*TEM,T=3.5,CLEAR

sub62712-16500

main62712-16460iEL53..2DS..DX..USA199409-199508

*TT,T=3.5,BLUE

sub62712-16500

main62712-16500iEL53..2DS..DX..USA199508-199608

*TT,T=3.5,GREEN

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iEL53..2DS199409

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-20020iEL53..2DS199409

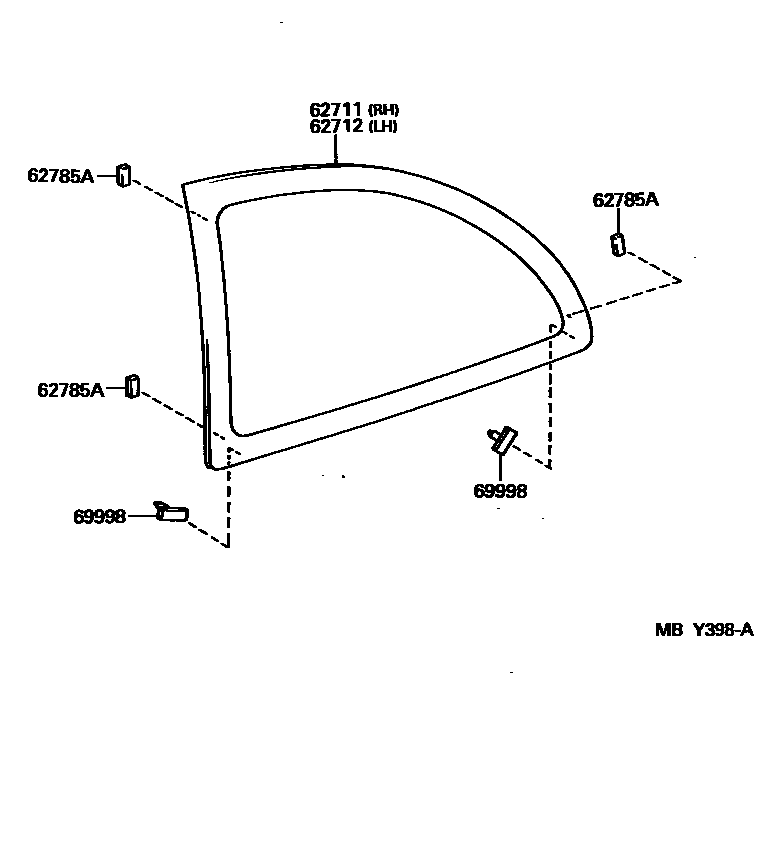

4 parts on this diagram · 1 diagram in section
