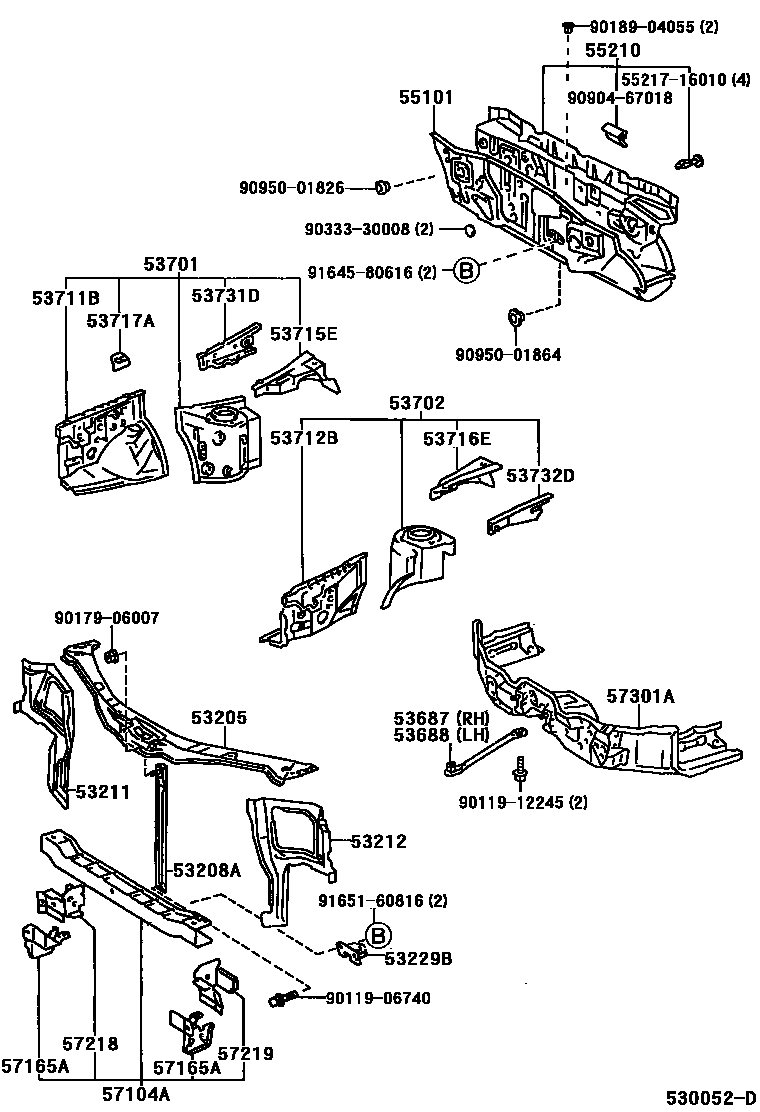

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53212SUPPORT, RADIATOR, LH
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717APLATE, FENDER APRON
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2
RH
LH
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
5521716010STRIP, DASH PANEL SILENCER FINISH
main55217-16010
9011906740
main90119-06740
9011912245
main90119-12245
9017906007
main90179-06007
9018904055
main90189-04055
9033330008
main90333-30008
9090467018
main90904-67018
9095001826
main90950-01826
9095001864
main90950-01864
9164580616
main91645-80616
9165160816
main91651-60816
34 parts on this diagram · 1 diagram in section
