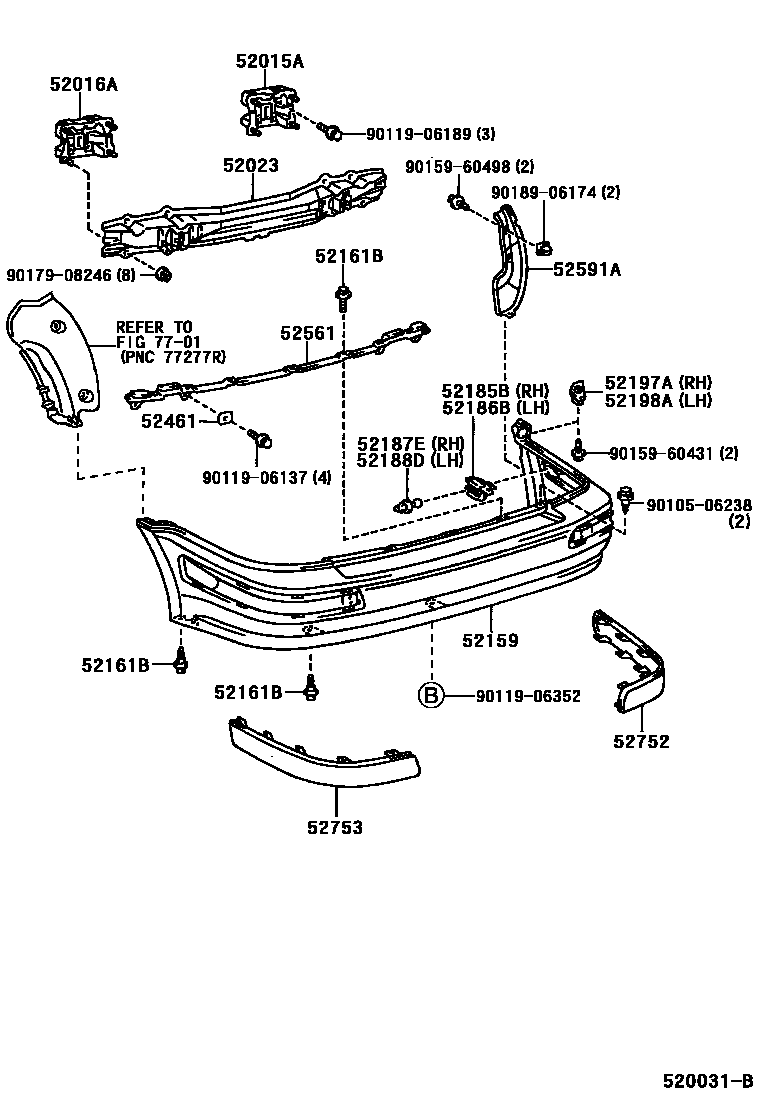

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52161BPIECE, REAR BUMPER
sub52161-0K040
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52461PAD, REAR BUMPER, CENTER
52561RETAINER, REAR BUMPER, UPPER CENTER
52591ASEAL, REAR BUMPER
52752MOULDING, REAR BUMPER SIDE, RH
sub52752-16080
DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5
GRAY MM,040 ,1A0 ,6P6
52753MOULDING, REAR BUMPER SIDE, LH
sub52753-16080
DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5
GRAY MM,040 ,1A0 ,6P6
7701
9010506238
main90105-06238
9011906137
main90119-06137
9011906189
main90119-06189
9011906352
main90119-06352
9015960431
main90159-60431
9015960498
main90159-60498
9017908246
main90179-08246
9018906174
main90189-06174
25 parts on this diagram · 2 diagrams in section
