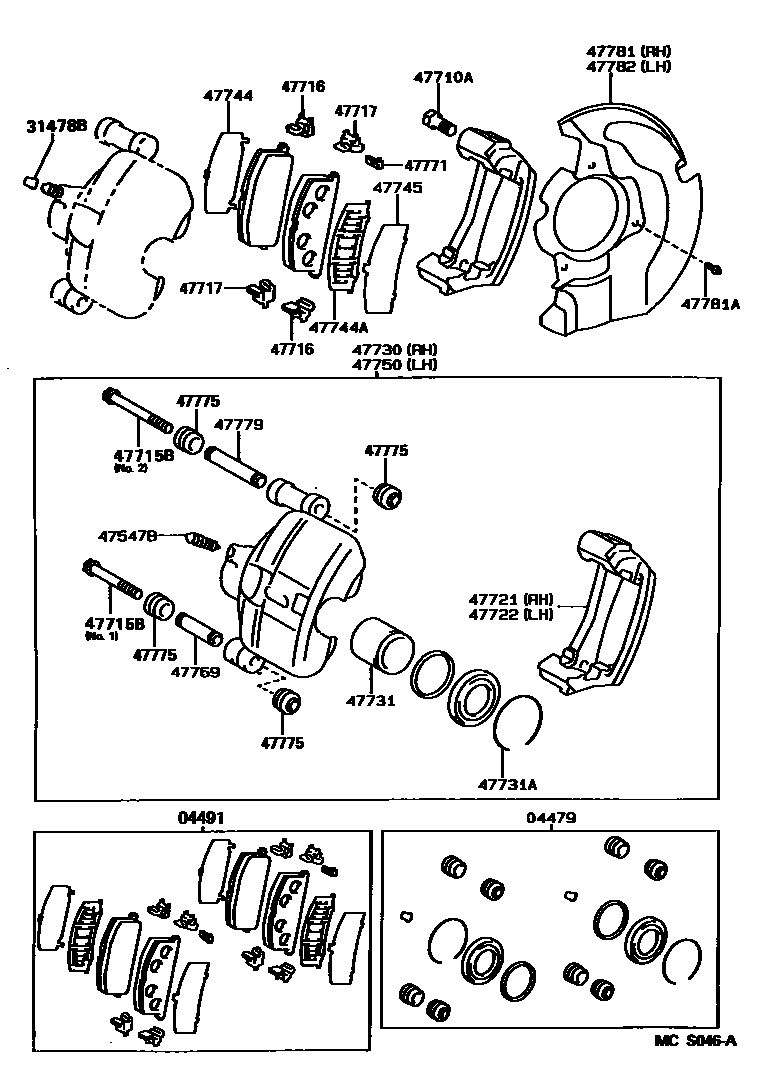

FRONT DISC BRAKE CALIPER & DUST COVER
04491PAD KIT, DISC BRAKE, FRONT
sub04465-12090
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX25.8-19.5
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
W(ABS),NO.1
W(ABS),NO.2
NO.1
NO.2
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
W(ABS)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
W(ABS)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
W(ABS)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
W(ABS)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
24 parts on this diagram · 2 diagrams in section
