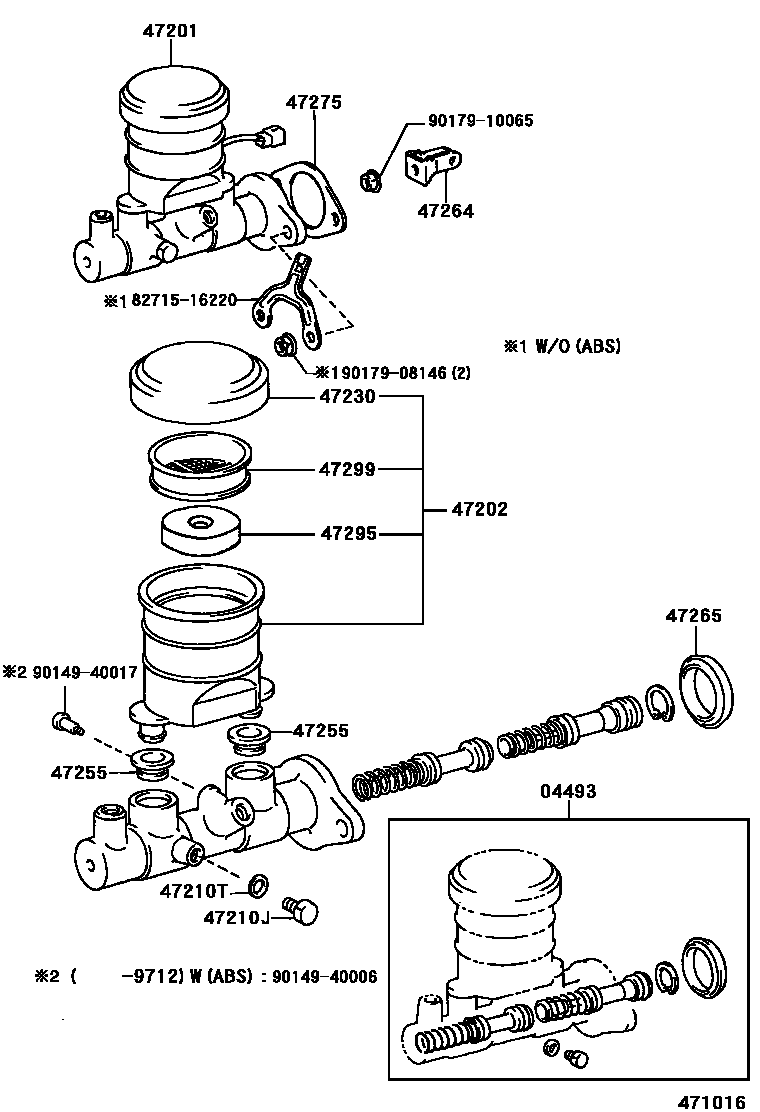

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-16080iEL53199712

W(ABS)

main04493-16090iEL53199409-199712

W(ABS)

main04493-16100iEL53199409

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16260iEL53199409-199712

W(ABS)

main47201-16270iEL53199409

main47201-16440iEL53199712

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-16050iEL53199409

W(ABS)

main47220-16060iEL53199409

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL53199409

main90430-06104iEL53199409

W(ABS)

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL53199409

W(ABS)

main90109-06123iEL53199409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL53199409

W(ABS)

main47230-16270iEL53199409

sub47230-16010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL53199409

W(ABS)

main47255-20010iEL53199409

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iEL53199409-199508

main47264-20070iEL53199508

47265BOOT, MASTER CYLINDER

main47265-20080iEL53199409-199608

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEL53199409

47295FLOAT, SWITCH OPERATING

main47295-20040iEL53199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL53199409

W(ABS)

main47299-16020iEL53199409

8271516220BRACKET,WIRING HARNESS CLAMP

main82715-16220

9014940006

main90149-40006

9014940017

main90149-40017

9017908146

main90179-08146

9017910065

main90179-10065

17 parts on this diagram · 1 diagram in section
