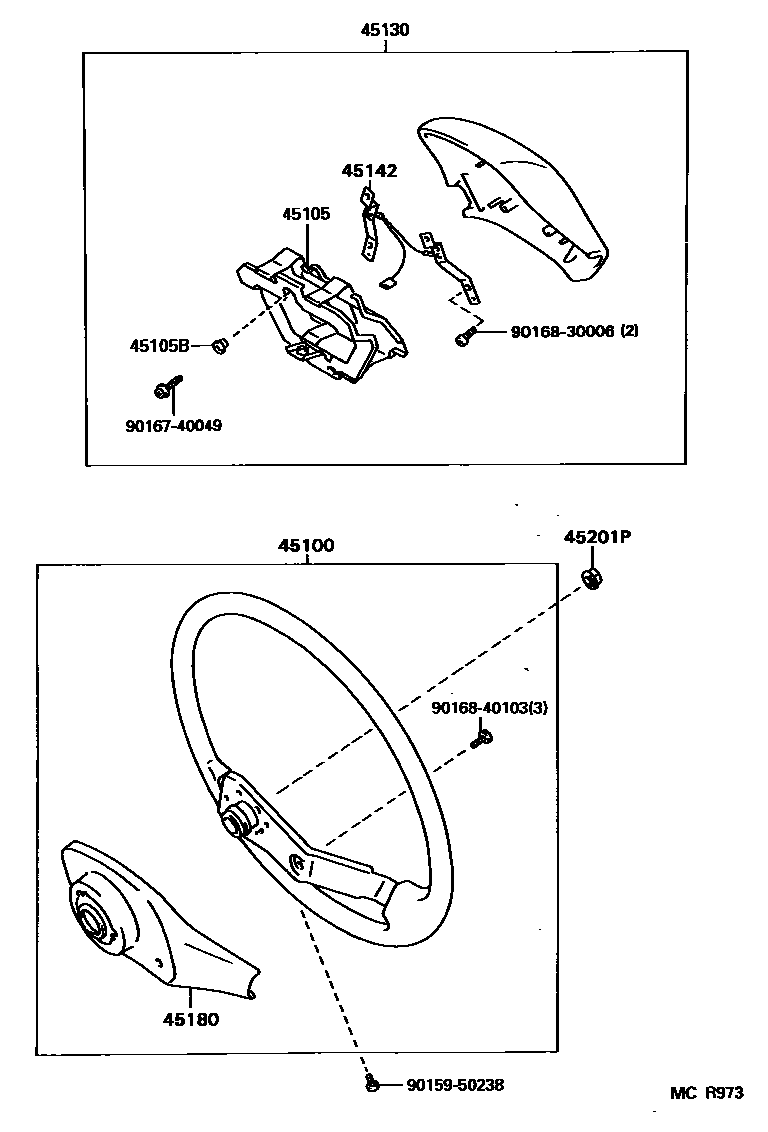

STEERING WHEEL
45100WHEEL ASSY, STEERING
2SPOKE,POLYPROPYLENE,SPORTS PACKAGE,BLUISH GRAY,TRIM1#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45130BUTTON ASSY, HORN
W(*80),BLUISH GRAY,TRIM1#
W(*80),OAK,TRIM4#
BLACK HAWK,OAK,TRIM4#
W(*80),SHADOW GRAY,TRIM1#
W(*80),OAK,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
45142SEAT, HORN BUTTON CONTACT, NO.1
45180COVER SUB-ASSY, STEERING WHEEL
45201PNUT, STEERING WHEEL SET
9015950238
main90159-50238
9016740049
main90167-40049
9016830006
main90168-30006
9016840103
main90168-40103
11 parts on this diagram · 2 diagrams in section
