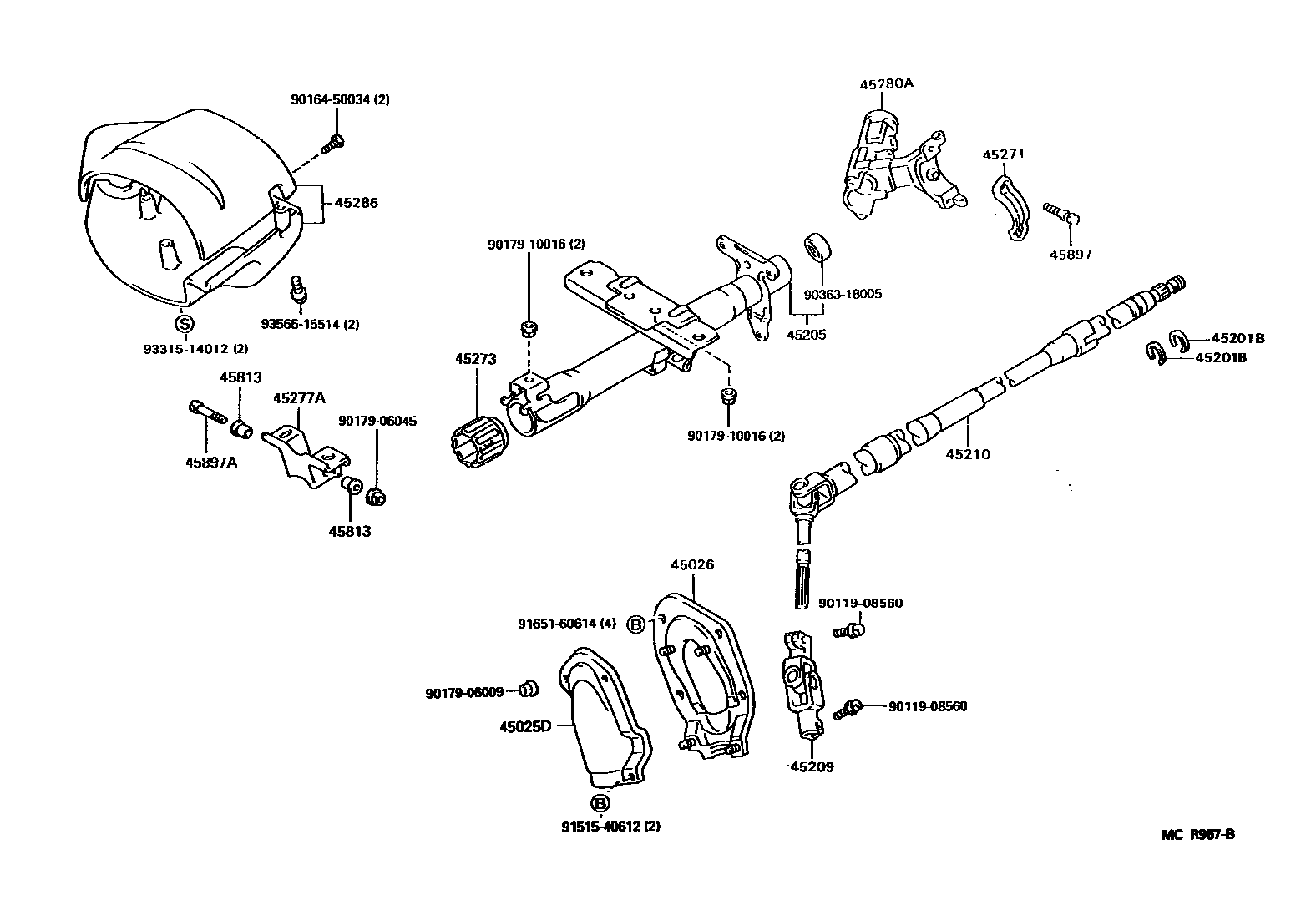

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1W(POWER STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10100iEL53199409

main45025-16140iEL53199409

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10050iEL53199409

main45026-16070iEL53199409

W(POWER STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEL53199409

T=1.20,LOWER

main90520-17269iEL53199409

T=1.20,UPPER

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12350iEL53199712

main45205-16080iEL53..CND199409-199712

main45205-16100iEL53199409-199712

W(*80)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12070iEL53199712-199907

KOYO

sub45209-12060

main45209-16040iEL53199712-199907

NSK

main45209-16040iEL53199409-199712

main45209-16051iEL53..4FC,5F199608-199712

W(POWER STEERING) & NSK

main45209-16051iEL53199409-199712

W(POWER STEERING)

main45209-18010iEL53199608-199712

W(POWER STEERING) & KOYO;W(POWER STEERING)

sub45209-16051

45210SHAFT ASSY, STEERING MAIN

main45210-10161iEL53..STD..CND199409-199608

W(*80)

main45210-10161iEL53..DX;EL53..STD..USA199409-199712

main45210-16180iEL53199409-199712

W(POWER STEERING)

main45210-16190iEL53..STD..CND199409-199608

main45210-42010iEL53199712-199907

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL53..CND199409-199712

main45271-16030iEL53199409-199712

W(*80)

45273BUSH, STEERING MAIN SHAFT

main45273-12020iEL53199712

main45273-16020iEL53199409-199712

45277ASUPPORT, TILT STEERING

main45277-16030iEL53199409-199712

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12341iEL53..ATM199712

main45280-16090iEL53199409-199712

main45280-28230iEL53..5F199712

45286COVER, STEERING COLUMN

main45286-16925-B0iEL53..CND199409-199608

BLUISH GRAY,TRIM1#

sub45286-16925

main45286-16925-B1iEL53..CND199608-199712

SHADOW GRAY,TRIM1#

sub45286-16925

main45286-16925-E0iEL53..DX..CND199409-199712

OAK,TRIM4#

sub45286-16925

main45286-16926-B0iEL53..3FC199608-199712

BLUISH,GRAY,TRIM1#

sub45286-16926

main45286-16926-B0iEL53..STD199409-199608

W(*80),BLUISH GRAY,TRIM1#

sub45286-16926

main45286-16926-B1iEL53..USA199608-199712

SHADOW GRAY,TRIM1#

sub45286-16926

main45286-16926-B1iEL53..USA199608-199712

W(*80),SHADOW GRAY,TRIM1#

sub45286-16926

main45286-16926-E0iEL53..DX..CND199409-199712

OAK,TRIM4#

sub45286-16926

main45286-16926-E0iEL53..DX..CND199409-199712

W(*80),OAK,TRIM4#

sub45286-16926

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-16030iEL53199409-199712

ID=8,OD=10

45897BOLT, STEERING LOCK SET

main45897-12020iEL53199409

45897ABOLT, TILT STEERING PAWL SET

main45897-16020iEL53199409-199712

9011908560

main90119-08560

9016450034

main90164-50034

9017906009

main90179-06009

9017906045

main90179-06045

9017910016

main90179-10016

9036318005

main90363-18005

9151540612

main91515-40612

9165160614

main91651-60614

9331514012

main93315-14012

9356615514

main93566-15514

24 parts on this diagram · 3 diagrams in section
