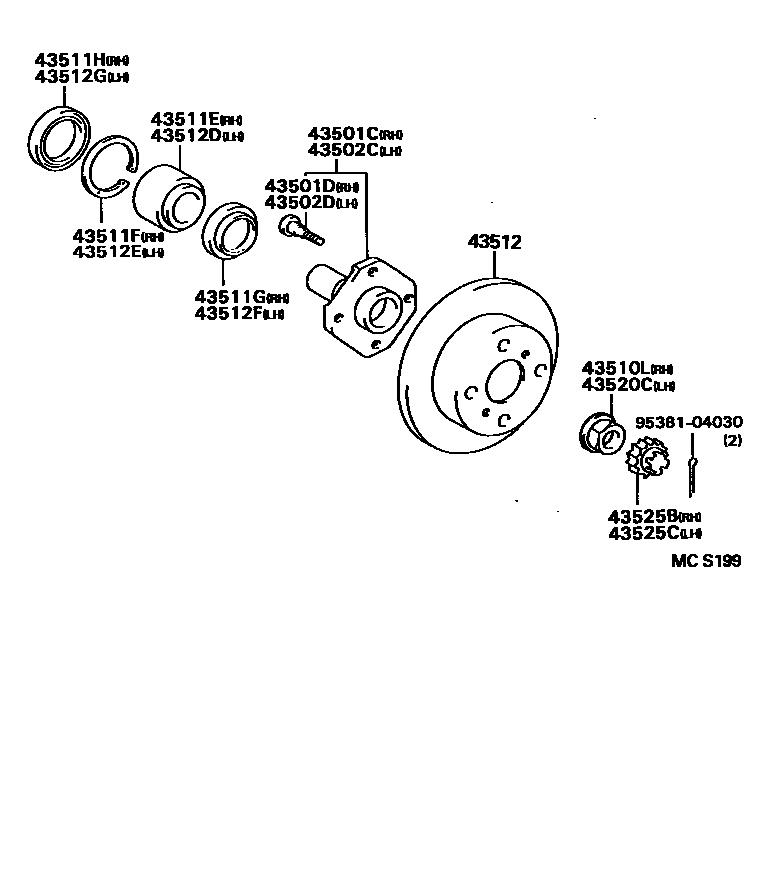

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-16040iEL53199409

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047iEL53199409

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-16040iEL53199409

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047iEL53199409

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iEL53199709

main90179-22020iEL53199409-199709

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-38006iEL53199409

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iEL53199409

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-54003iEL53199409

43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)

main90311-56016iEL53199409

main90311-56017iEL53199409

W(ABS)

43512DISC, FRONT

main43512-16120iEL53199409

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-38006iEL53199409

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iEL53199409

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-54003iEL53199409

43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)

main90311-56016iEL53199409

main90311-56017iEL53199409

W(ABS)

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iEL53199709

main90179-22020iEL53199409-199709

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iEL53199409

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iEL53199409

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
