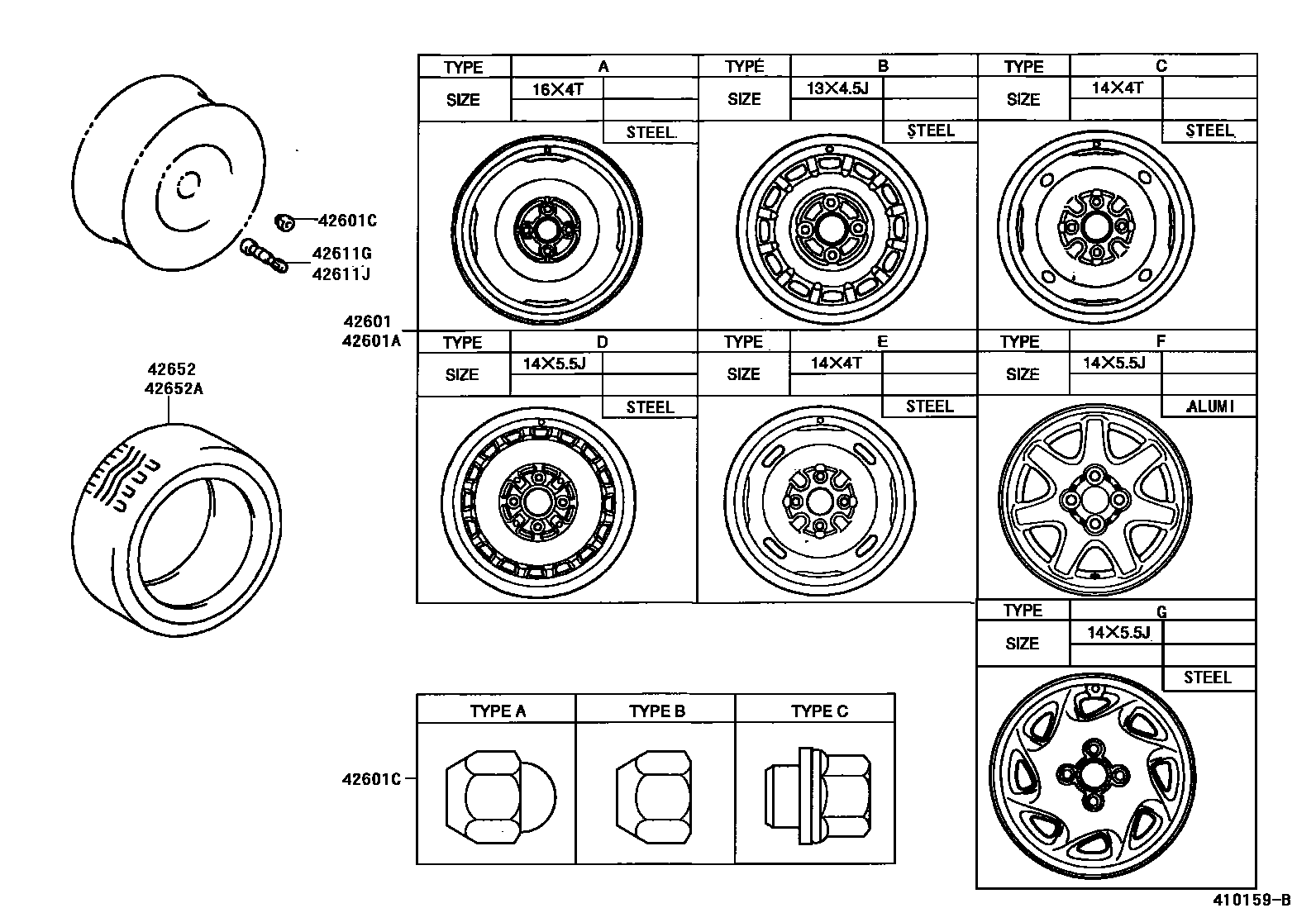

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-0W010iEL53¥13,900199801

14X5.5J,TYPE G:REFER TO ILLUSTRATION

main42611-0W010iEL53..2DS..USA¥13,900199611-199708

14X5.5J,HAWK PACKAGE,TYPE G:REFER TO ILLUSTRATION

main42611-0W010iEL53..2DS..USA¥13,900199704-199711

14X5.5J,SPORTS EDITION,TYPE G:REFER TO ILLUSTRATION

main42611-16420-03iEL53199409

13X4.5J,TYPE B:REFER TO ILLUSTRATION,SILVER

main42611-16430-01iEL53..DX199409

13X4.5J,TYPE B:REFER TO ILLUSTRATION,BLACK M

main42611-16500iEL53..2DS..DX..CND¥32,000199601-199604

14X5.5JJ,TYPE F:REFER TO ILLUSTRATION, SPORTS PACKAGE

main42611-18010-01iEL53199608

14X5.5J,TYPE D:REFER TO ILLUSTRATION,BLACK

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iEL53¥9,500199409-199608

16X4T,TYPE A:REFER TO ILLUSTRATION

sub42611-10321¥9,500

main42611-16220iEL53..2DS..DX..CND¥6,300199601-199604

14X4T,TYPE E:REFER TO ILLUSTRATION, SPORTS PACKAGE

main42611-16220iEL53¥6,300199608

14X4T,TYPE E:REFER TO ILLUSTRATION

main42611-16340iEL53¥7,000199409-199712

14X4T,TYPE C:REFER TO ILLUSTRATION

sub42611-1A260¥8,500

42601CNUT, HUB (FOR AXLE)

main90942-01007iEL53..DX¥230199409

TYPE B:REFER TO ILLUSTRATION

main90942-01021iEL53..2DS..USA¥330199611-199708

HAWK PACKAGE,TYPE A:REFER TO ILLUSTRATION

main90942-01021iEL53¥330199409

TYPE A:REFER TO ILLUSTRATION

main90942-01033iEL53..2DS..DX..CND¥430199601-199604

TYPE C:REFER TO ILLUSTRATION, SPORTS PACKAGE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iEL53¥390199409

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEL53¥390199409

L=51

42652TIRE

main42652-16440iEL53199409

155SR13

main42652-16500iEL53..2DS..DX..CND199601-199604

P185/60R14 82H,SPORTS PACKAGE

main42652-16500iEL53199608

P185/60R14 82H

42652ATIRE (FOR SPARE)

main42652-10170iEL53199608-199712

T105/70D14

main42652-12370iEL53..2DS..DX..CND199601-199604

T115/70D14,SPORTS PACKAGE

sub42652-16220

main42652-12370iEL53199608

T115/70D14

sub42652-16220

main42652-16290iEL53199409-199608

T105/70D14

main42652-16380iEL53199409-199608

T105/70D16

7 parts on this diagram · 4 diagrams in section
