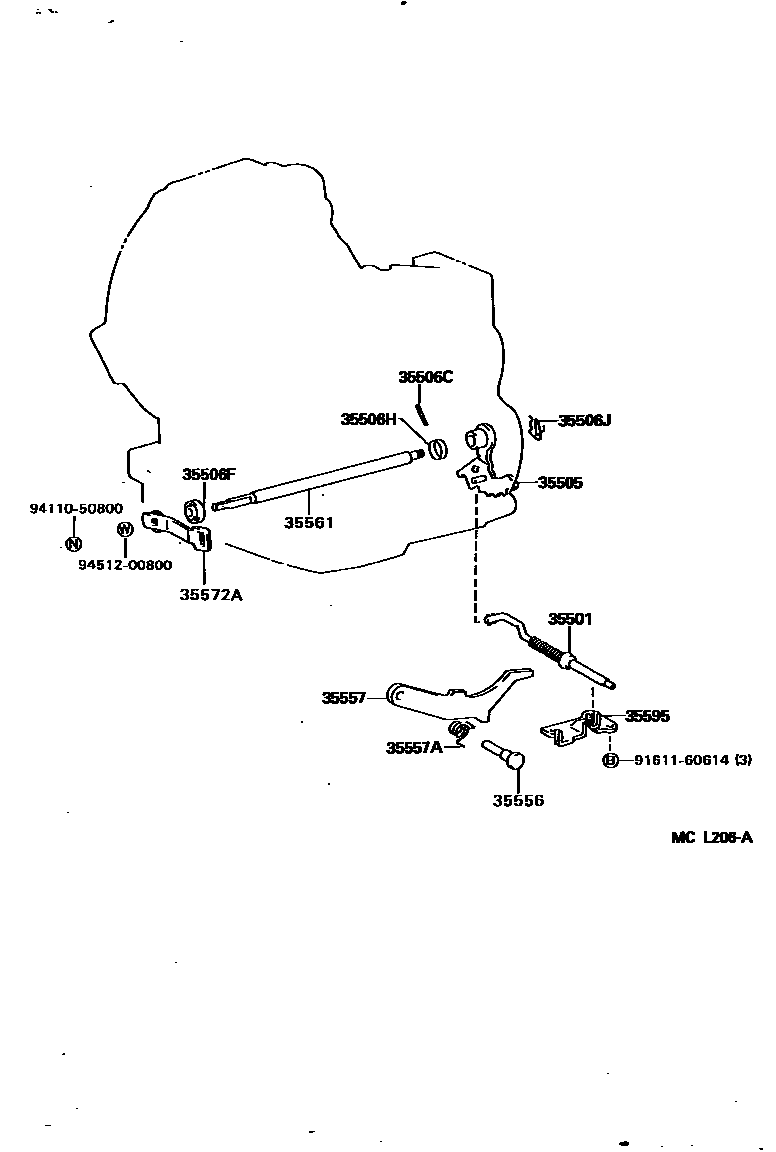

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A132L 0002 1A242L 0003 1A132L,A242L

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iEL53..4FC199409

main35501-32030iEL53..3FC199409

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iEL53..4FC199409

main35505-32040iEL53..3FC199409

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iEL53..ATM199409

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iEL53..ATM199409

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iEL53..ATM199409

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iEL53..3FC199409

main90524-11001iEL53..4FC199409

35556SHAFT, PARKING LOCK PAWL

main35556-12020iEL53..4FC199409

main35556-32010iEL53..3FC199409

35557PAWL, PARKING LOCK

main35557-12020iEL53..4FC199409

main35557-32020iEL53..3FC199409

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iEL53..4FC199409

main90508-26047iEL53..3FC199409

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iEL53..4FC199409

main35561-32010iEL53..3FC199409

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12110iEL53..3FC199409

main35572-16040iEL53..4FC199409

35595BRACKET, PARKING LOCK PAWL

main35595-32010iEL53..3FC199409

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
