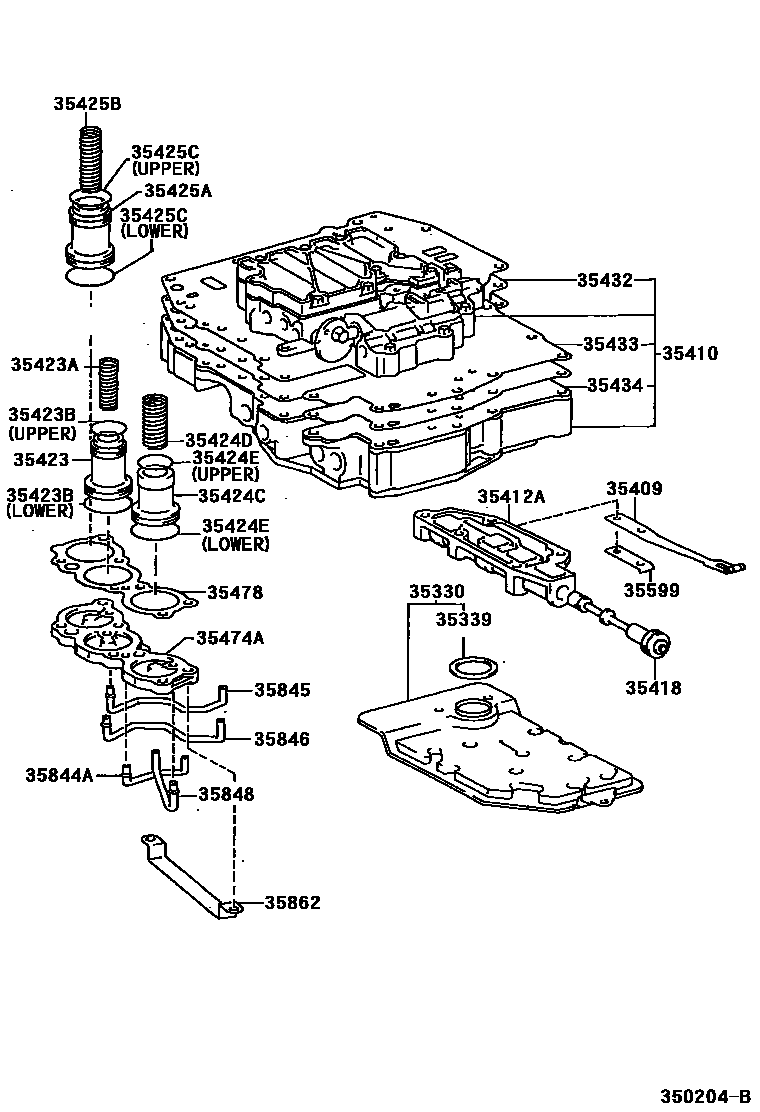

VALVE BODY & OIL STRAINER (ATM)

0001 1A132L 0002 1A132L 0003 1A132L 0004 1A132L 0005 1A242L 0006 1A242L 0007 1A242L 0008 1A242L 0009 1A242L

35330STRAINER ASSY, VALVE BODY OIL

main35330-12020iEL53..4FC199409

main35330-20012iEL53..3FC199409

35339GASKET, OIL STRAINER

main35339-12010iEL53..4FC199409

main35339-32010iEL53..3FC199409

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-20010iEL53..4FC199409

main35409-32030iEL53..3FC199409

35410BODY ASSY, TRANSMISSION VALVE

main35410-12430iEL53..3FC199409

main35410-16190iEL53..4FC199409-199510

sub35410-16191

sub82125-20240

main35410-16191iEL53..4FC199510

35412ABODY, MANUAL VALVE

main35412-32010iEL53..3FC199409

35418VALVE, MANUAL

main35418-12020iEL53..4FC199409

main35418-32010iEL53..3FC199409

35423PISTON, B-2 ACCUMULATOR

main35403-20010iEL53..3FC199409

main35423-20030iEL53..4FC199510

main35423-32010iEL53..4FC199409-199510

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-20110iEL53..4FC199409

main90501-23106iEL53..3FC199409

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-22185iEL53..ATM199409

UPPER

main90301-29011iEL53..3FC199712

LOWER

main90301-29187iEL53..ATM199409-199712

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35424-20020iEL53..3FC199409-199706

main35424-20021iEL53..3FC199706

main35424-20030iEL53..4FC199409

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-19023iEL53..4FC199508-199511

INNER

main90501-19024iEL53..4FC199409-199508

INNER

main90501-19027iEL53..4FC199511

main90501-20129iEL53..3FC199409-199706

main90501-20141iEL53..3FC199706

main90501-25044iEL53..4FC199409-199511

OUTER

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23194iEL53..ATM199409-199706

UPPER

main90301-24009iEL53..3FC199706

UPPER

main90301-29011iEL53..3FC199706

LOWER

main90301-29187iEL53..4FC199409-199706

LOWER

35425APISTON, C-2 ACCUMULATOR

main35405-12010iEL53..3FC199409

main35425-12020iEL53..4FC199409

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23063iEL53..4FC199409

main90501-23106iEL53..3FC199409

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-23194iEL53..4FC199409

UPPER

main90301-26190iEL53..3FC199409

UPPER

main90301-29011iEL53..3FC199712

LOWER

main90301-29187iEL53..ATM199409-199712

LOWER

35432PLATE, VALVE BODY, NO.1

main35432-12250iEL53..3FC199705

main35432-16020iEL53..4FC199409

main35432-20220iEL53..3FC199409-199705

sub35432-12250

35433GASKET, VALVE BODY, NO.1

main35433-20020iEL53..3FC199409

main35433-20030iEL53..4FC199409

35434GASKET, VALVE BODY, NO.2

main35434-20010iEL53..4FC199409

main35434-32020iEL53..3FC199409

35474ACOVER, ACCUMULATOR

main35474-12010iEL53..4FC199409

main35474-20010iEL53..3FC199409

35478GASKET, ACCUMULATOR COVER

main35478-32010iEL53..ATM199409

35599COVER, MANUAL DETENT SPRING

main35599-12010iEL53..4FC199409

main35599-32010iEL53..3FC199409

35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1

main35844-12030iEL53..4FC199409

main35844-32021iEL53..3FC199409

35845TUBE, RR CLUTCH ACCUMULATOR

main35845-32012iEL53..3FC199409

35846TUBE, BRAKE ACCUMULATOR

main35846-12040iEL53..4FC199409

main35846-20020iEL53..3FC199409

35848TUBE, FORWARD CLUTCH ACCUMULATOR

main35848-12030iEL53..4FC199409

main35848-32011iEL53..3FC199409

35862BRACKET, ACCUMULATOR APPLY TUBE

main35862-12020iEL53..4FC199409

main35862-32011iEL53..3FC199409

26 parts on this diagram · 9 diagrams in section
