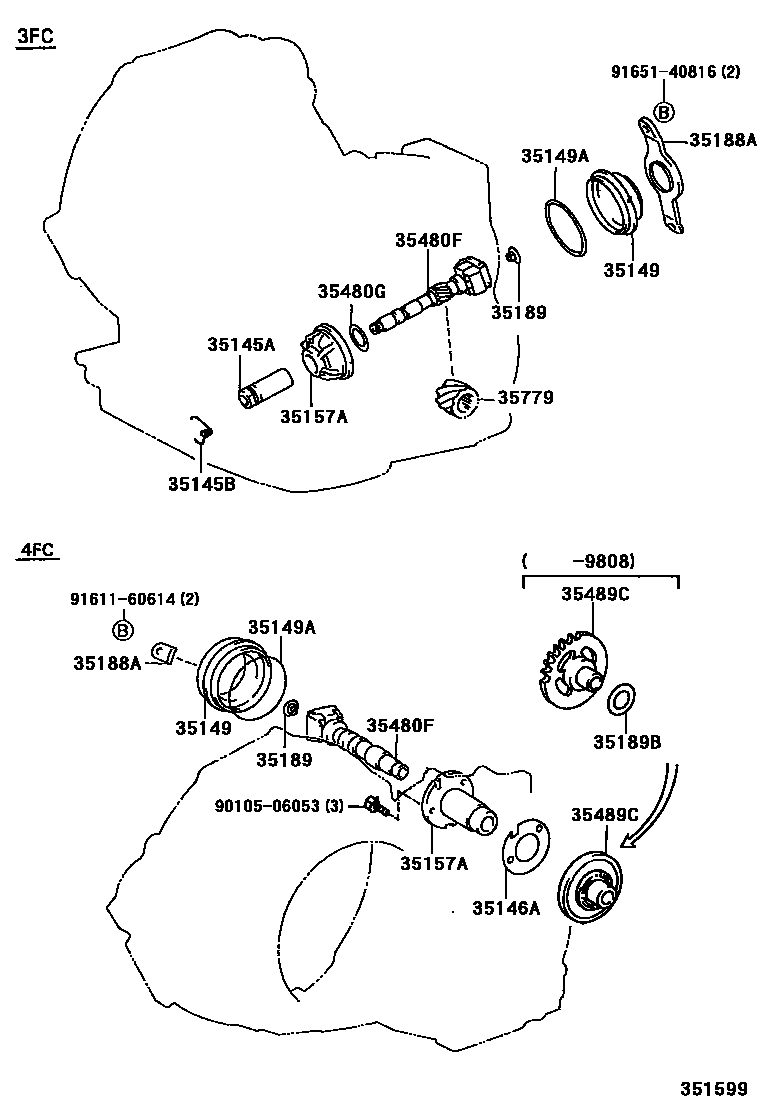

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iEL53..3FC199409

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iEL53..3FC199409

35146AGASKET, GOVERNOR BODY

main35146-20010iEL53..4FC199409

35149COVER, GOVERNOR

main35149-12010iEL53..3FC199409

main35149-20010iEL53..4FC199409

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iEL53..4FC199409

main90301-73001iEL53..3FC199409

35157AADAPTER, GOVERNOR BODY

main35157-12010iEL53..3FC199409

main35157-20031iEL53..4FC199409

35188ABRACKET, GOVERNOR COVER

main35188-12010iEL53..3FC199409

main35188-20010iEL53..4FC199409

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iEL53..ATM199409

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iEL53..4FC199409-199808

35480FBODY ASSY, GOVERNOR

main35480-16050iEL53..4FC199409

main35480-16060iEL53..3FC199409

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iEL53..3FC199409

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEL53..4FC199409-199808

main35489-16020iEL53..4FC199808

35779GEAR, GOVERNOR DRIVE

main35779-32010iEL53..3FC199409

9010506053

main90105-06053

9161160614

main91611-60614

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
