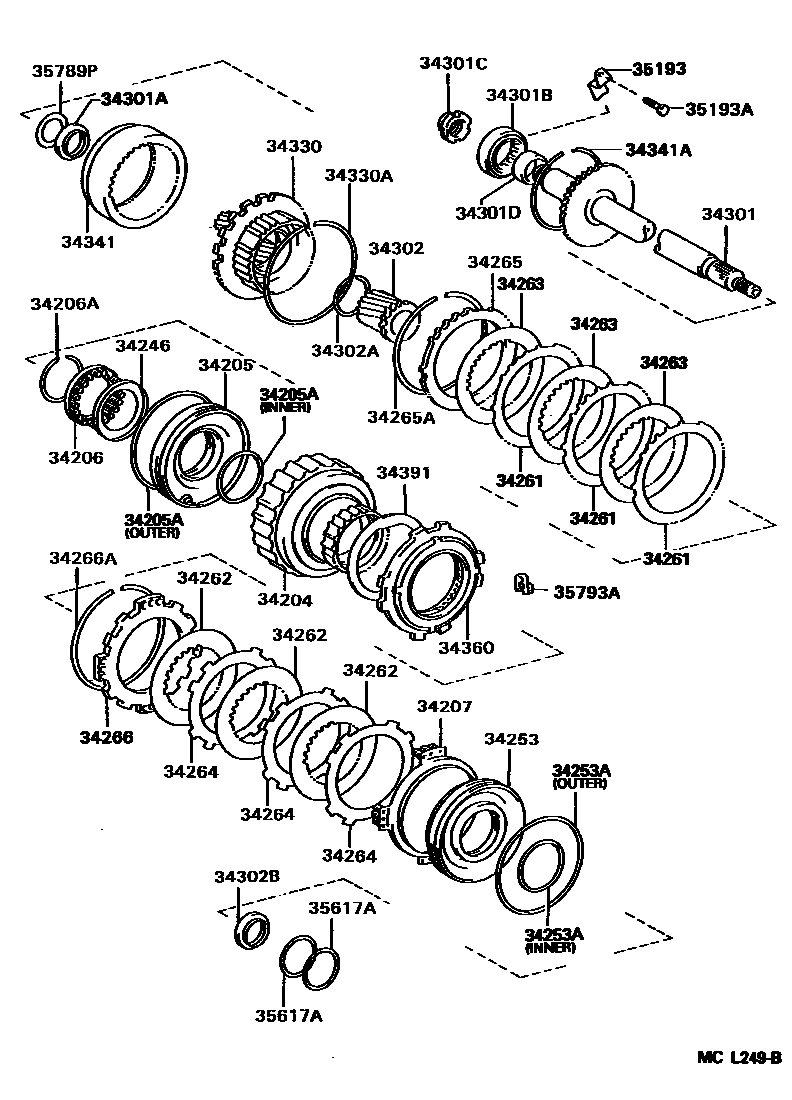

OVERDRIVE GEAR (ATM)
34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH
sub34204-12H00
34205PISTON SUB-ASSY, UNDERDRIVE CLUTCH
34205ARING, O (FOR UNDERDRIVE CLUTCH PISTON)
INNER
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
34246PLATE, UNDERDRIVE CLUTCH RETURN SPRING
34253PISTON, UNDERDRIVE BRAKE
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
INNER
34261DISC, UNDERDRIVE CLUTCH, NO.1
34262DISC, UNDERDRIVE CLUTCH, NO.2
34263PLATE, UNDERDRIVE CLUTCH, NO.1
34264PLATE, UNDERDRIVE CLUTCH, NO.2
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
34301SHAFT SUB-ASSY, UNDERDRIVE INPUT
34301ABEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
34301DBEARING, CYLINDRICAL ROLLER, NO.2 (FOR UNDERDRIVE)
34302GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN
34302ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR)
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
34330ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR)
34341GEAR, UNDERDRIVE PLANETARY RING
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
sub34360-12030
34391WASHER, UNDERDRIVE CLUTCH DRUM THRUST
35193RETAINER, ROLLER BEARING
35193ABOLT (FOR ROLLER BEARING RETAINER)
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35789PRACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT)
35793ARETAINER, UNDERDRIVE 1 WAY CLUTCH
36 parts on this diagram · 1 diagram in section
