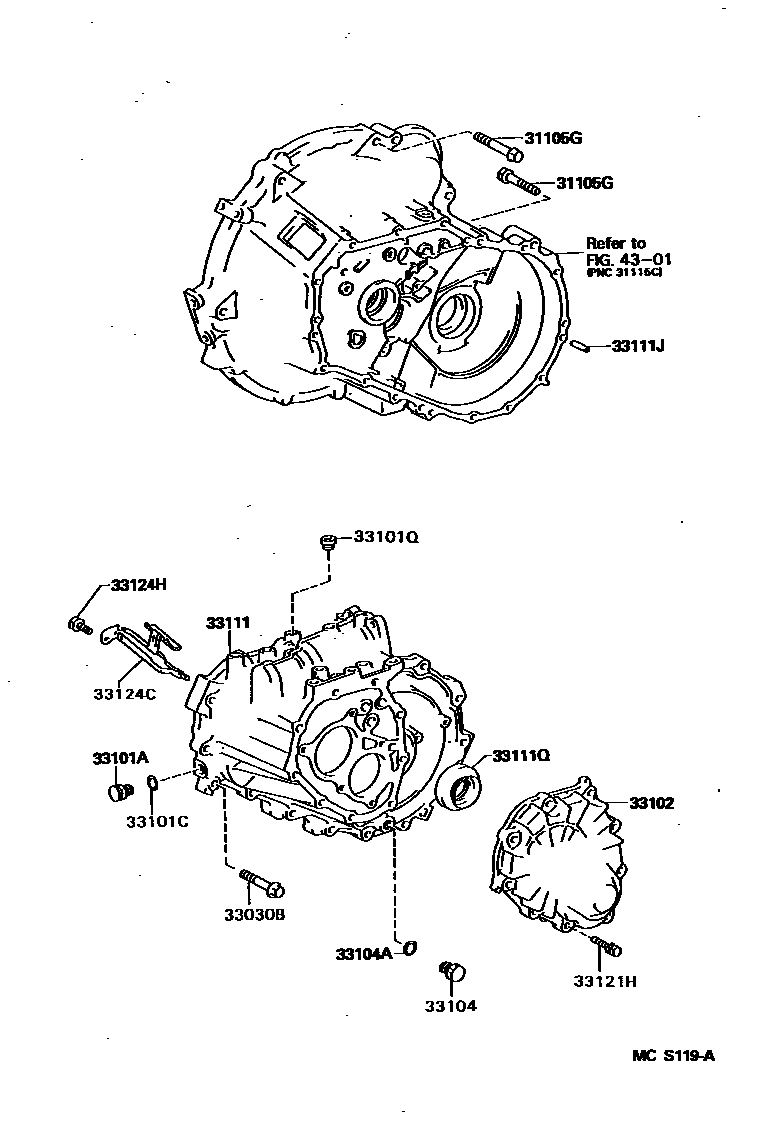

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C141 0002 1C151

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEL53..MTM¥250199409

*10-1.25PX60-22

main91612-41025iEL53..MTM¥170199409

*10-1.25PX25-25

sub90119-10223¥120

main91619-61260iEL53..MTM¥130199409

*12-1.25PX60-30

main91621-60614iEL53..MTM¥120199409

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iEL53..MTM¥110199409

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEL53..MTM¥180199409

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEL53..MTM¥110199409

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iEL53..4F¥130199409-199608

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10012iEL53..4F¥3,280199409-199504

sub33102-10014¥3,310

sub33151-12021¥3,860

main33102-10014iEL53..4F¥3,310199504-199608

main33102-10023iEL53..5F¥3,540199409

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEL53..MTM¥180199409

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEL53..MTM¥110199409

33111CASE, MANUAL TRANSMISSION

main33111-16050iEL53..MTM¥35,000199409-199505

sub33111-16080¥35,000

sub90109-12073¥230

main33111-16051iEL53..MTM¥35,100199505-199704

sub33111-16052¥35,100

sub90109-12073¥230

main33111-16052iEL53..5F¥35,100199704-199907

sub33111-16053¥35,200

sub90109-18005¥210

sub90430-18008¥110

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEL53..MTM¥120199409

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iEL53..MTM¥270199409

sub90311-34028¥310

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08A34iEL53..MTM¥130199409

sub90119-08373¥140

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEL53..MTM¥1,560199409-199504

main33124-10012iEL53..MTM¥750199504

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEL53..MTM¥200199409-199608

sub91611-G0820¥160

4301

15 parts on this diagram · 2 diagrams in section
